FATH

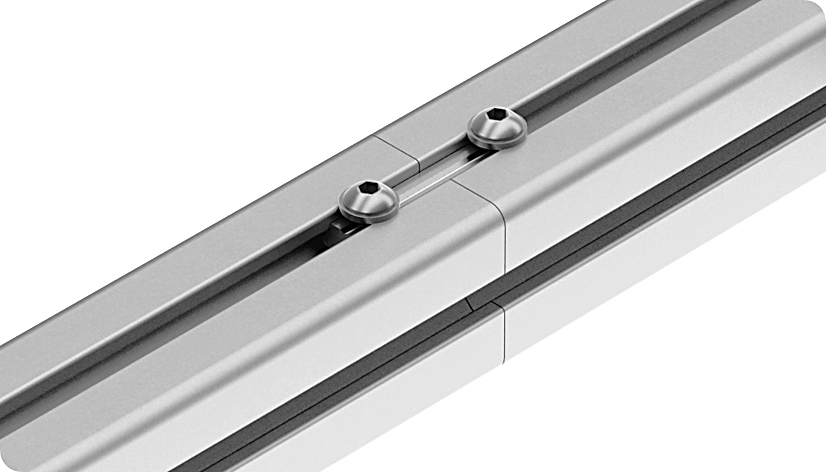

Connecting Strip 50 B, Slot 8
Part #: 096010S05 · 2 variants
End-to-end connection of two aluminum profiles without machining
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 29 g
- ECLASS
- 23360290
- Category
- Connecting Strips
Versions
Select a version — the description and files below follow your selection.
Description 096010S05
- Description
End-to-end connection of two aluminum profiles without machining
- Material
Steel
- Set 1
1 connecting strip 50, slot 8,
2 screws DIN EN ISO 7380 (34805) - M6 x 8,
2 washers DIN EN ISO 7089 (DIN 125)
- Set 2
2 connecting strip 50, slot 8,
2 hexagon socket set screws DIN EN ISO 4026 (DIN 913) - M6 x 10
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 8 |
| Pack Quantity | 10 pieces |
| Model | Zinc plated / plain |

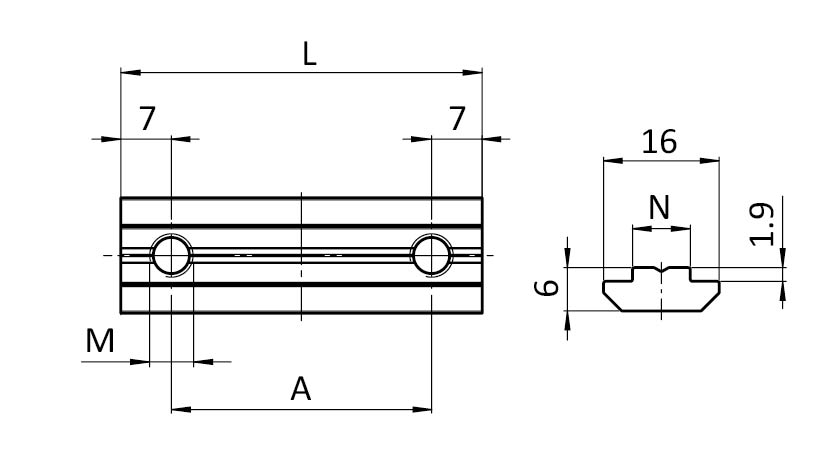

Drawing
From the FATH catalogue (EC-EN, p. 622)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
