Connection Angle AL 2 Hole, 1 Slot Version

Part #: 093WD20 · 6 variants

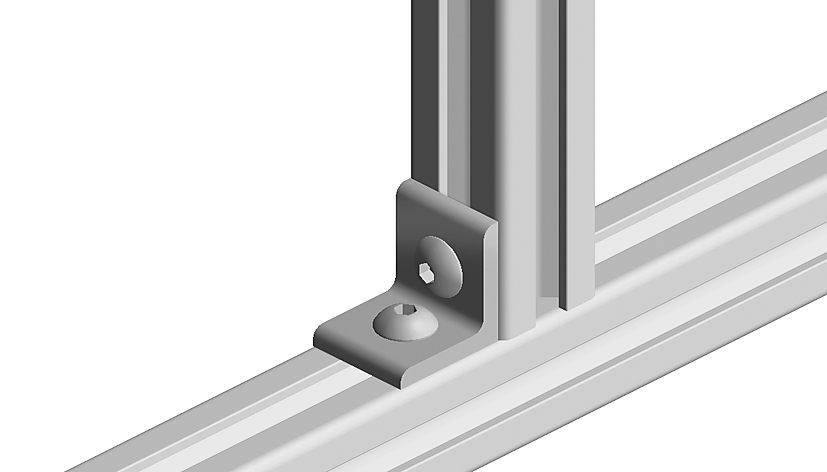

To connect two aluminum profiles at right angles

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

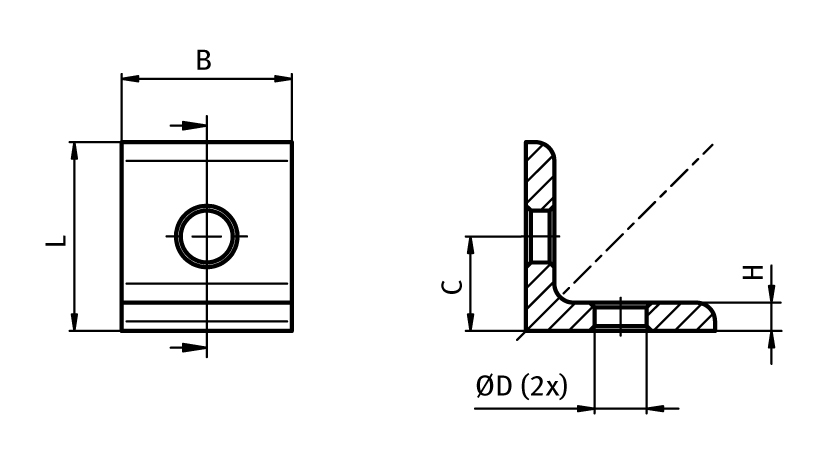

Part #	Version	H (mm)	B (mm)	C (mm)	L (mm)	ØD (mm)
093WD20✓ Selected	20	3.0	18.0	10.0	20.0	5.5
093WD25	25.4 (1")	4.0	25.4 (1")	12.7 (0.5")	25.4 (1")	7.0
093WD30	30	5.0	30.0	15.0	30.0	7.0
093WD38	38.1 - 1.5"	6.0	38.1 (1.5")	19.0 (0.75")	38.1 (1.5")	9.0
093WD40	40	6.0	36.0	20.0	40.0	9.0
093WD45	45	6.0	41.0	22.5	45.0	9.0

Profile Type	Profile Type B, Profile Type I
Application Area	Machinery & Plant Engineering
Pack Quantity	10 pieces
Model	Aluminum

From the FATH catalogue (EC-EN, p. 378)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
