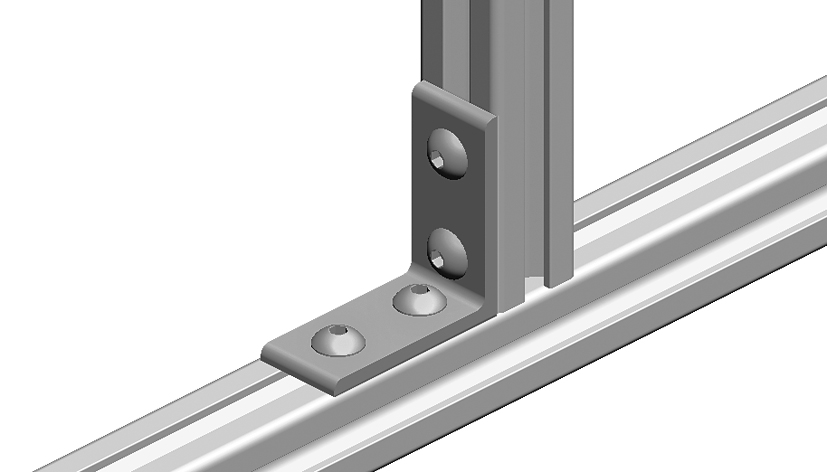

Connection Angle AL 4 Hole, 1 Slot Version
Part #: 093WD2040 · 6 variants
To connect two aluminum profiles at right angles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 50 pieces
- Weight
- 11 g
- ECLASS
- 23360290
- Category
- Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | H (mm) | A (mm) | B (mm) | C (mm) | L (mm) | ØD (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 093WD2040✓ Selected | 20 / 40 | 3.0 | 20.0 | 18.0 | 10.0 | 40.0 | 5.5 | 50 pieces | |
| 093WD2551 | 25.4 x 50.8 - 1" x 2" | 4.0 | 25.4 (1") | 23.0 (0,91") | 12.7 (0.5") | 50.8 (2") | 7.0 | 10 pieces | |
| 093WD3060 | 30 / 60 | 5.0 | 30.0 | 27.0 | 15.0 | 60.0 | 7.0 | 10 pieces | |
| 093WD3876 | 38 / 76 - 1.5" / 3" | 6.0 | 38.1 (1.5") | 34.0 (1.34") | 19.0 (0.75") | 76.2 (3") | 9.0 | 10 pieces | |
| 093WD4080 | 40 / 80 | 6.0 | 40.0 | 36.0 | 20.0 | 80.0 | 9.0 | 10 pieces | |
| 093WD4590 | 45 / 90 | 6.0 | 45.0 | 41.0 | 22.5 | 90.0 | 9.0 | 10 pieces |
Description 093WD2040
- Description
To connect two aluminum profiles at right angles
- Material
Aluminum
- Surface
Anodized
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 50 pieces |
| Model | Aluminum |

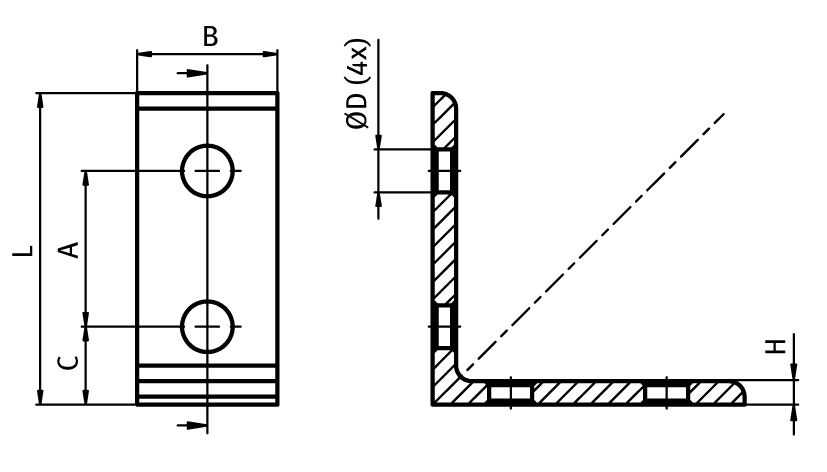

Drawing
From the FATH catalogue (EC-EN, p. 380)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
