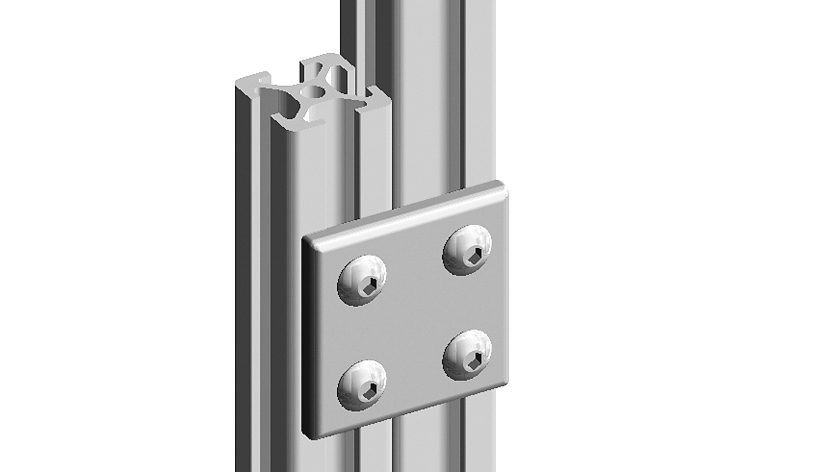

Connection Plate AL Quadrangular 4 Hole, 1 Slot Version
Part #: 093VA4040 · 6 variants
To connect two aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 15 g
- ECLASS
- 23360290
- Category
- Aluminum, Connection Plates
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | H (mm) | A (mm) | L (mm) | ØD (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 093VA4040✓ Selected | 40 / 40 | 4.0 | 20.0 | 38.0 | 5.5 | |
| 093VA5151 | 50.8 / 50.8 - 2" / 2" | 4.0 | 25.4 (1") | 48.0 (1.89") | 7.0 | |
| 093VA6060 | 60 / 60 | 5.0 | 30.0 | 57.0 | 7.0 | |
| 093VA7676 | 76.2 / 76.2 - 3" / 3" | 6.0 | 38.1 (1.5") | 72.0 (2.8") | 9.0 | |
| 093VA8080 | 80 / 80 | 6.0 | 40.0 | 76.0 | 9.0 | |
| 093VA9090 | 90 / 90 | 6.0 | 45.0 | 86.0 | 9.0 |
Description 093VA4040
- Description
To connect two aluminum profiles
- Material
Aluminum
- Specials
Other surfaces, other colors on request
- Surface
Anodized
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum |

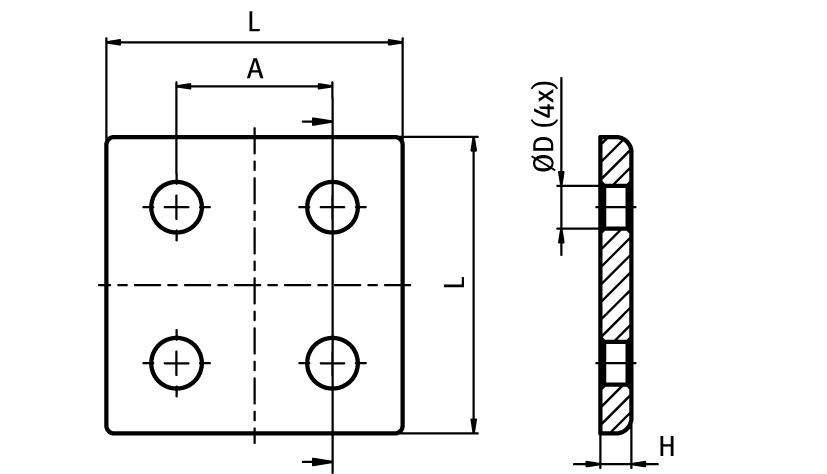

Drawing
From the FATH catalogue (EC-EN, p. 366)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
