FATH

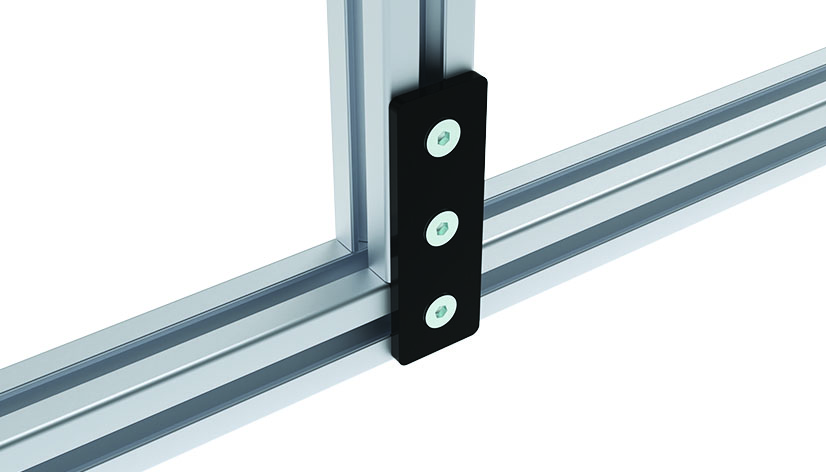

Connection Plate ST Rectangular 3 Hole, 1 Slot Version
Part #: 093V3090A · 4 variants
To connect two aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 76.6 g
- ECLASS
- 23360290
- Category
- Steel, Connection Plates
Versions
Select a version — the description and files below follow your selection.
| Part # | H (mm) | A (mm) | B (mm) | L (mm) | Fig. | Surface | Color | for Screw | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 093V3090A✓ Selected | 4.0 | 2x 30.0 | 30.0 | 90.0 | ② | Powder coated | Alu color | 3x M6 | |
| 093V3090S | 4.0 | 2x 30.0 | 30.0 | 90.0 | ① | Powder coated | Black | 3x M6 | |
| 093V40120A | 5.0 | 2x 40.0 | 40.0 | 120.0 | ② | Powder coated | Alu color | 3x M8 | |
| 093V40120S | 5.0 | 2x 40.0 | 40.0 | 120.0 | ① | Powder coated | Black | 3x M8 |
Description 093V3090A
- Color
Black, alu colour
- Description
To connect two aluminum profiles
- Material
Steel
- Specials
Other surfaces, other colors on request
- Surface
Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Steel, profile 20 and up |

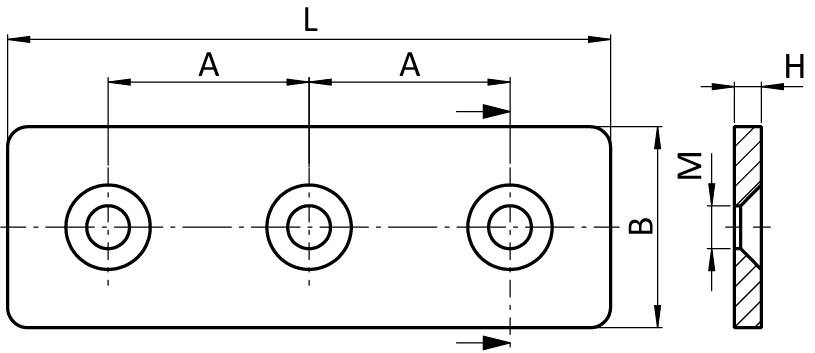

Drawing
From the FATH catalogue (EC-EN, p. 375)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
