FATH

Cover and Reduction Profile I Slot 8

Part #: 092030 · 9 variants

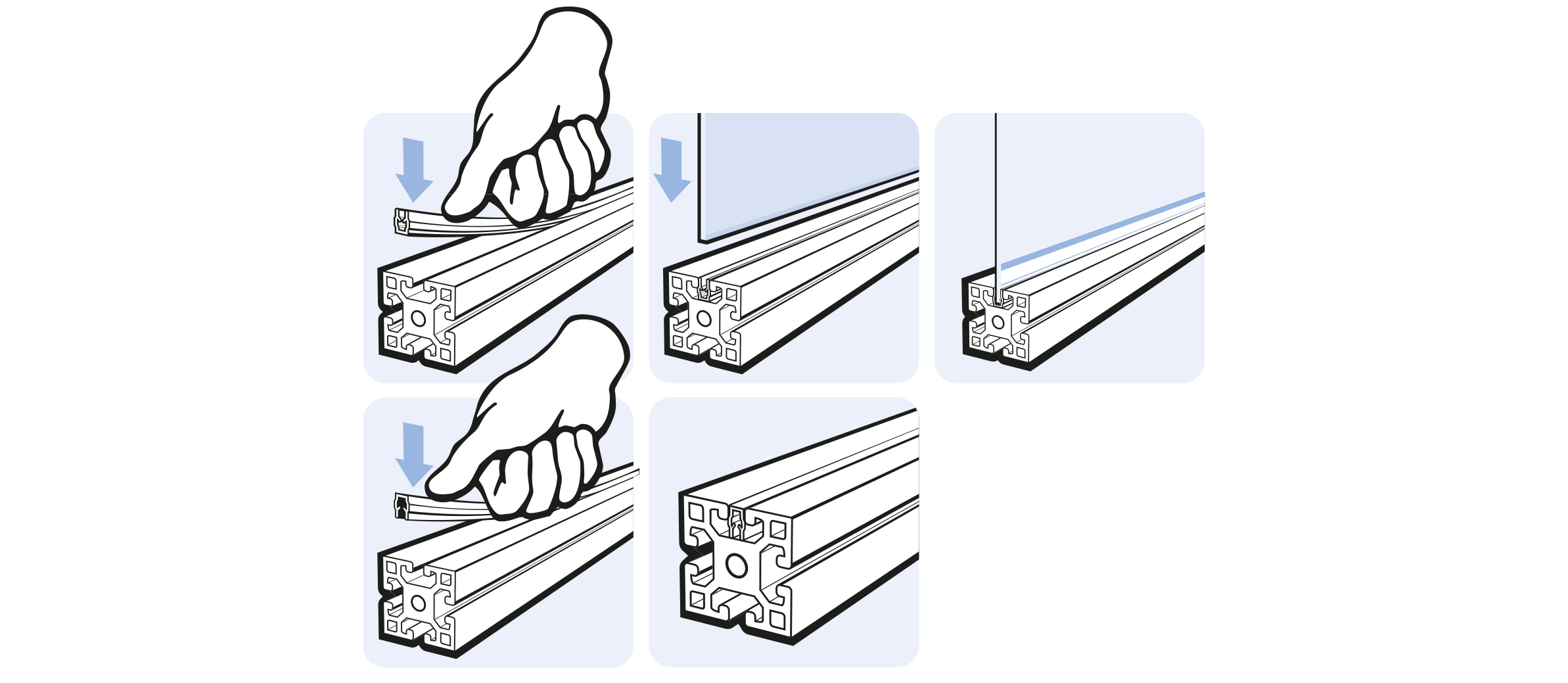

To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mm

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

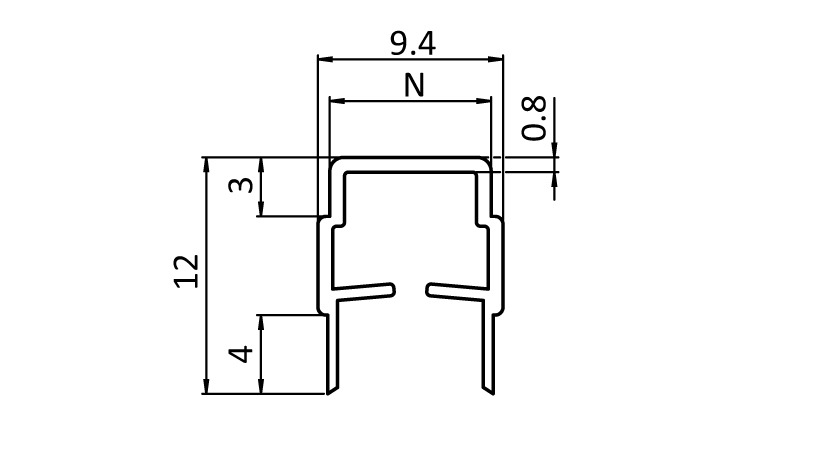

Part #	Profile	Color	Slot N (mm)
092030✓ Selected	I	Natural	8
092031	I	Black	8
092031S03	I	Yellow ≈ RAL 1018	8
092031S04	I	White aluminum ≈ RAL 9006	8
092031S08	I	Orange ≈ RAL 2008	8
092035	I	Gray ≈ RAL 7035	8
092035S04	I	Gray ≈ RAL 7042	8
092036	I	Red ≈ RAL 3020	8
092037	I	Blue ≈ RAL 5005	8

Color: Black, yellow, orange, red, blue, gray, white aluminum, natural
Description: To cover size 8 profile slots and to secure panels with a thickness of 4 - 6 mm
Material: Plastic PP
Specials: Other colors on request

From the FATH catalogue (EC-EN, p. 941)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
