FATH
Cover Cap A for 3-way Connection Angle B 20
Part #: 093WEA202A · 2 variants

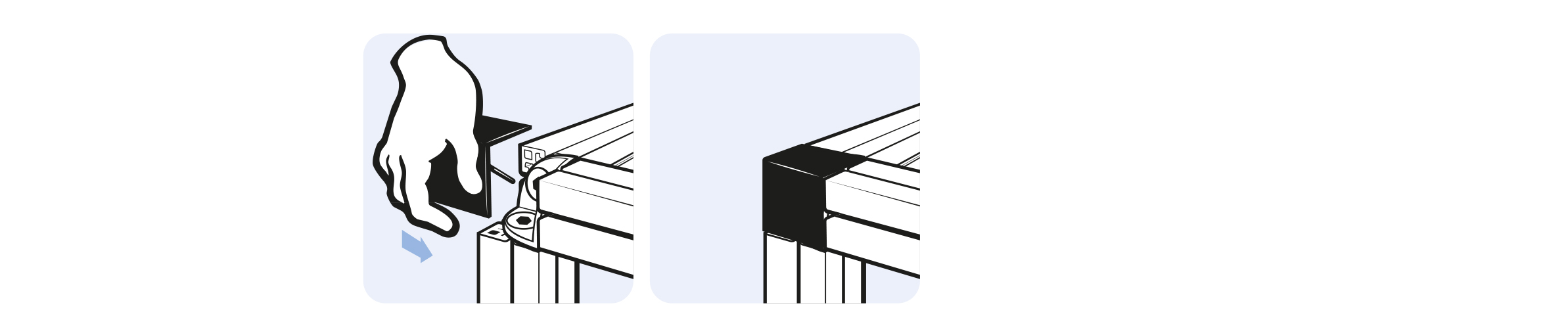

To cover the 3-way connection angle
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 50 pieces
- Weight
- 3 g
- ECLASS
- 23360292
- Category
- Profile 20, 3-way Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Color | Add 1 pc to enquiry |
|---|---|---|---|
| 093WEA202A✓ Selected | B | Black | |
| 093WEA202AS02 | B | Gray ≈ RAL 7004 |
Description 093WEA202A
- Color
Black, gray
- Description
To cover the 3-way connection angle
- Material
Plastic PA, glass fiber reinforced
- Specials
Other colors on request
Properties
| Profile Type | Profile Type B |
|---|---|
| Pack Quantity | 50 pieces |
| Model | Plastic PA, profile 20, angular |

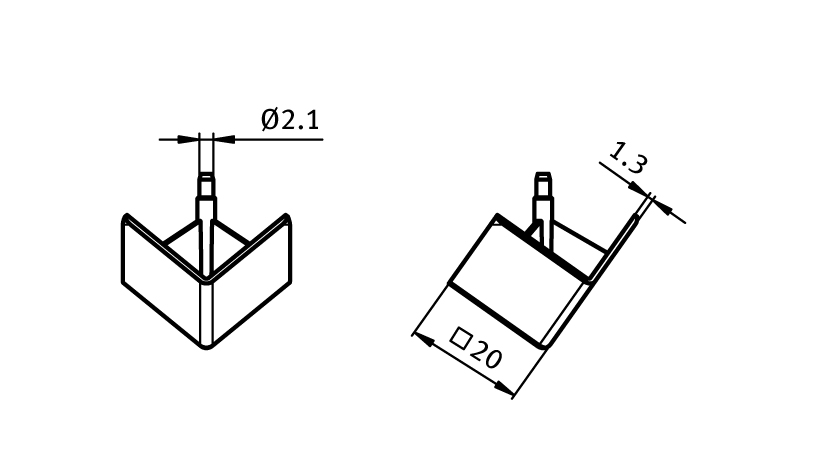

Drawing
From the FATH catalogue (EC-EN, p. 434)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
