FATH
Cover Cap for 60 mm Modular Dimension
Part #: 091021 · 4 variants
To cover the end of the profile
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 50 pieces
- Weight
- 20.9 g
- ECLASS
- 23360192
- Category
- 60 mm Modular Dimension, Cover Caps
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Feature | Fig. | Color | Slot N (mm) | ØD (mm) | R (mm) | T (mm) | Dimensions A x B (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 091021✓ Selected | B | 1 pin for core hole | ① | Black | 10 | 10.6 (10.0) | 3.0 | 4.0 | 60 x 60 | |
| 091021S06 | B | 1 pin for core hole | ① | Gray ≈ RAL 7004 | 10 | 10.6 (10.0) | 3.0 | 4.0 | 60 x 60 | |
| 091039 | - | 1 cross 13.5, 2 Pins for core hole, 11.4 | ② | Black | 10 | 11.4 - 13.5 | 2.5 | 4.0 | 60 x 90 | |
| 091142 | - | 4 crosses | ① | Black | - | 6.8 | 2.0 | 4.0 | 60 x 60 |
Description 091021
- Color
Black, gray
- Description
To cover the end of the profile
- Material
Plastic PA, glass fiber reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors on request
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Slot Size | Slot 10 |
| Modular Dimension | Modular Dimension 60 |
| Pack Quantity | 50 pieces |
| Model | 60 mm modular dimension |

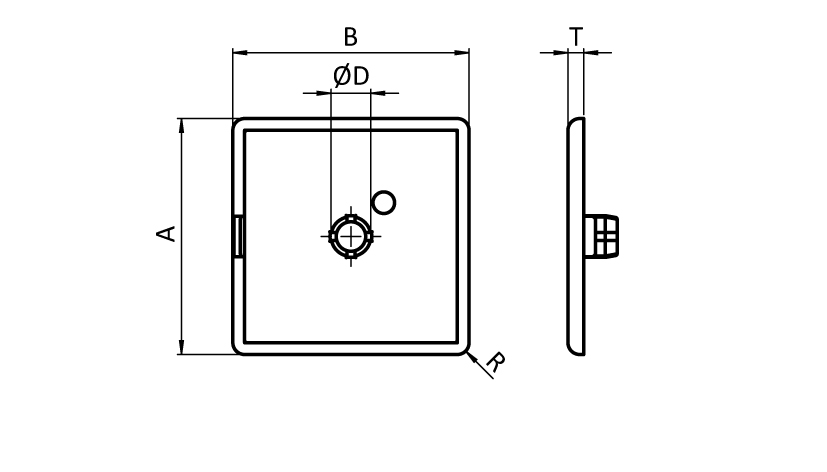

Drawing
From the FATH catalogue (EC-EN, p. 997)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
