FATH

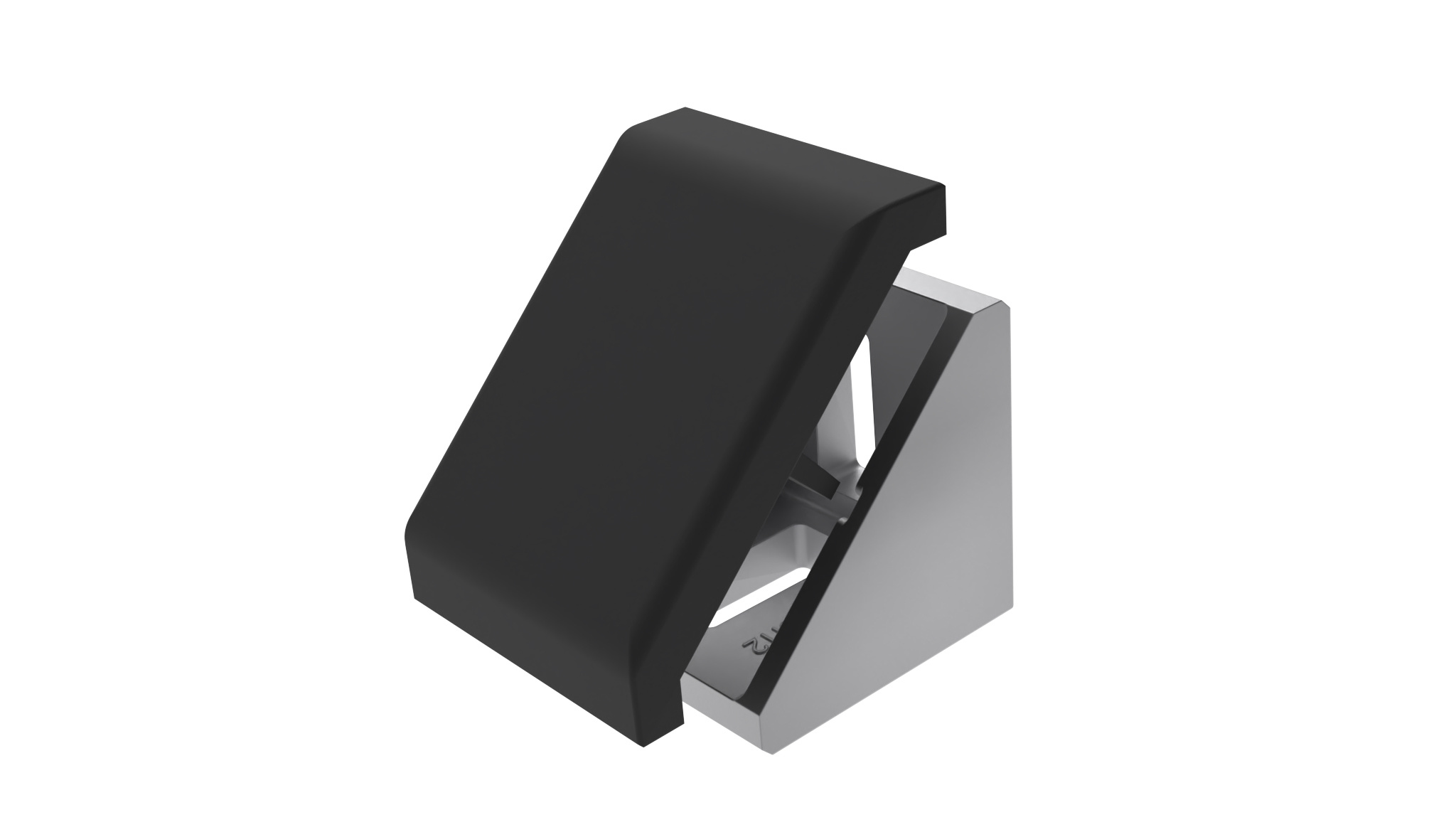

Cover Cap for Alu Connection Angle 30
Part #: 093WA303S02 · 2 variants
To cover the open side of the connection angle
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 5.2 g
- ECLASS
- 23360292
- Category
- Alu Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Fig. | Color | Add 1 pc to enquiry |
|---|---|---|---|
| 093WA303S02✓ Selected | ① | Black | |
| 093WA303S05 | ② | Gray ≈ RAL 7004 |
Description 093WA303S02
- Color
Black, gray
- Description
To cover the open side of the connection angle
- Material
Plastic PA, glass fiber reinforced
- Specials
Other colors on request
- Tip
Compatible Connection Angle see 093W303
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA |

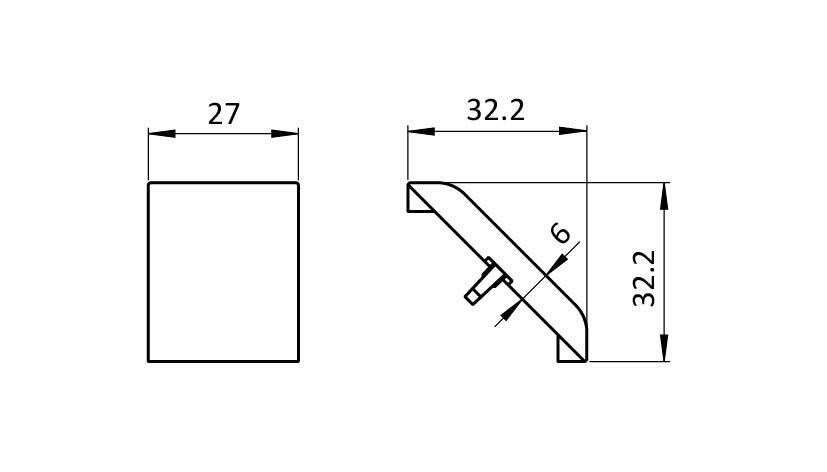

Drawing
From the FATH catalogue (EC-EN, p. 387)
