Cover Cap for Conduit Profile
Part #: 091168 · 13 variants
To seal the end openings of conduit systems; Fastening with screw M 4
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 8.4 g
- ECLASS
- 23360192
- Category
- Conduit Profiles, Cover Caps
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Feature | R (mm) | T (mm) | Dimensions A x B (mm) | Hole | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 091168✓ Selected | I | 4 support ribs | 4.0 | 4.0 | 40 x 40 | 4 bore holes | 100 pieces | |
| 091194 | I | 6 fixation ribs | 3.0 | 4.0 | 40 x 80 | 4 bore holes | 50 pieces | |
| 091195 | I | 8 support ribs | 3.0 | 4.0 | 80 x 80 | 4 bore holes | 10 pieces | |
| 091201 | I | 8 support ribs | 3.0 | 4.0 | 40 x 120 | 4 bore holes | 10 pieces | |
| 091202 | I | 10 fixation ribs | 3.0 | 4.0 | 80 x 120 | 4 bore holes | 10 pieces | |
| 091203 | I | 12 fixation ribs | 3.0 | 4.0 | 80 x 160 | 4 bore holes | 10 pieces | |
| 091204 | I | 10 fixation ribs | 4.0 | 4.0 | 40 x 160 | 4 bore holes | 10 pieces | |
| 091246 | I | 12 fixation ribs | 3.0 | 4.0 | 120 x 120 | 4 bore holes | 10 pieces | |
| 091247 | I | 14 fixation ribs | 3.0 | 4.0 | 120 x 160 | 4 bore holes | 10 pieces | |
| 091248L | I | 4 support ribs | 4.0 | 4.0 | 80 x 80 | 45° left; 3 bore holes | 10 pieces | |
| 091248R | I | 4 support ribs | 4.0 | 4.0 | 80 x 80 | 45° right; 3 bore holes | 10 pieces | |
| 091249L | I | 9 fixation ribs | 4.0 | 4.0 | 80 x 160 | 20° left; 4 bore holes | 10 pieces | |
| 091249R | I | 9 fixation ribs | 4.0 | 4.0 | 80 x 160 | 20° right; 4 bore holes | 10 pieces |
Description 091168
- Color
Black
- Description
To seal the end openings of conduit systems; Fastening with screw M 4
- Material
Plastic PA, glass fiber reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors on request
Properties
| Profile Type | Profile Type I |
|---|---|
| Pack Quantity | 100 pieces |
| Model | Plastic PA |

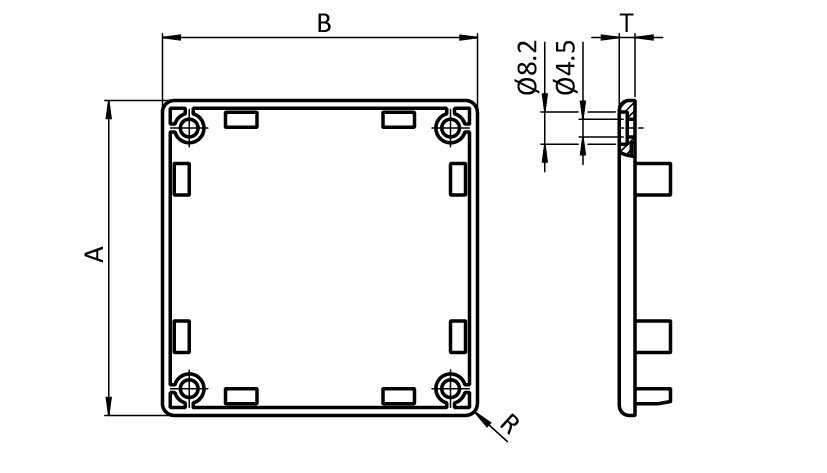

Drawing
From the FATH catalogue (EC-EN, p. 1003)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
