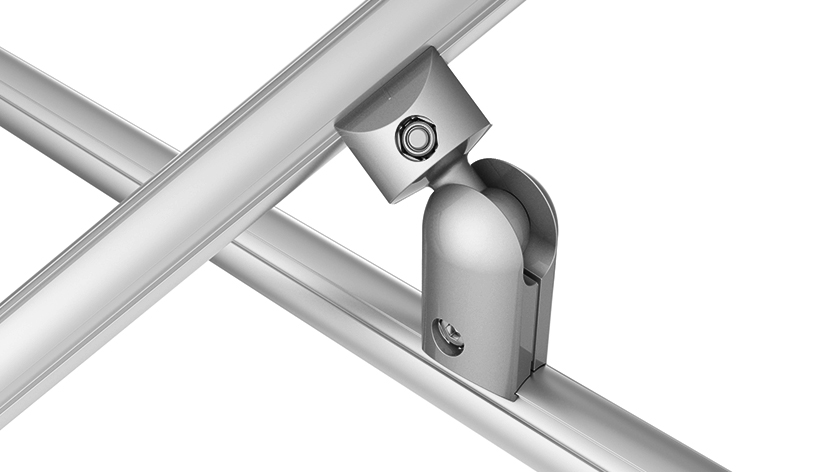

Cross Ball Connector D30 (Set)
Part #: 099RV30KS04
To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 220 g
- ECLASS
- 23360290
- Category
- Connectors D30
Description 099RV30KS04
- Description
To cross connect two tubular frame profiles with Ø 30 mm outer diameter at variable angles, with pre-centering; completely pre-assembled set
- Material
Connector: Aluminum die-cast
Assembly set: Steel
- Set
4 cross ball connector D30,
2 screws DIN EN ISO 4762 (DIN 912) - M6 x 28,
2 self-locking nuts DIN EN ISO 4032 (DIN 934) - M6
- Surface
Assembly set: Zinc plated
- Tip
Compatible Cover Cap for Tubular Frame Connectors D30 see 099RV30CC06
Properties
| Profile Type | Profile Type I |
|---|---|
| Modular Dimension | Modular Dimension D30 |
| Product Feature | ESD |
| Profile Form | Round Tubular Profiles |
| Pack Quantity | 10 pieces |
| Model | For tubular frame profiles |

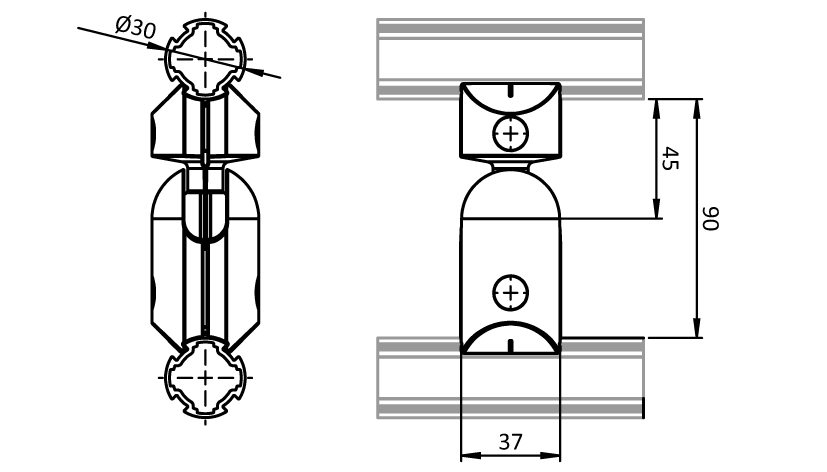

Drawing
From the FATH catalogue (EC-EN, p. 1105)
