FATH
Cross Cable Binder Block
Part #: 093249 · 6 variants

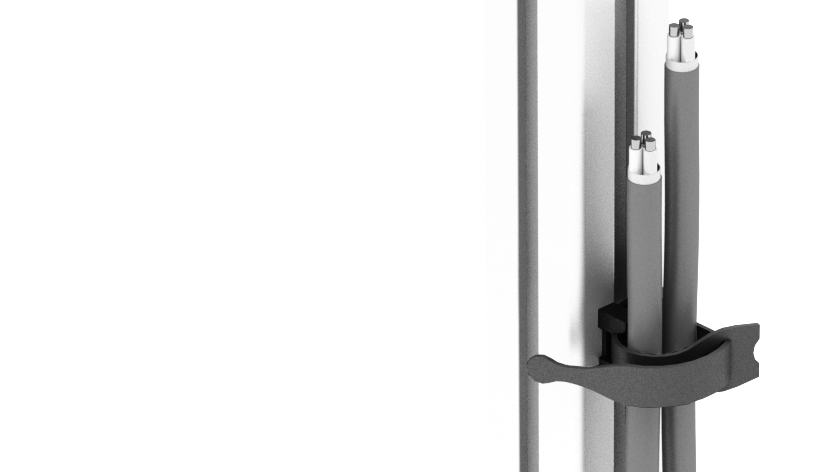

To fix cables to aluminum profiles in two directions; can be mounted into the slot by a quarter turn
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 4.4 g
- ECLASS
- 27140701
- Category
- T-hammer, Cable Fixation Blocks
Versions
Select a version — the description and files below follow your selection.
Description 093249
- Color
Black
- Description
To fix cables to aluminum profiles in two directions; can be mounted into the slot by a quarter turn
- Material
Cable binding block: Plastic PA, glass fiber reinforced
Velcro® strap: Plastic PE (hook), Plastic PA (loop)
- Specials
Customized hammer, other colors on request
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Application Area | Industrial Work Stations |
| Pack Quantity | 100 pieces |
| Model | Plastic PA, Slot 8, 10 |

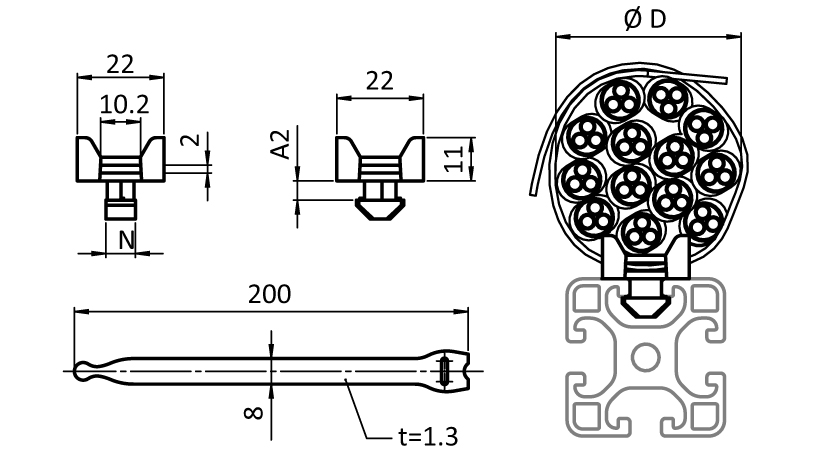

Drawing
From the FATH catalogue (EC-EN, p. 1019)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
