Cube Connector 20, 3D
Part #: 093WW204N05 · 4 variants
To connect three aluminum profiles at right angles; with cover caps to cover the bores
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 28 g
- ECLASS
- 23360290
- Category
- Profile 20, Cube Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | L (mm) | D1 (mm) | D2 (mm) | Assembly Set | Surface | Color | Slot N (mm) | R (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 093WW204N05✓ Selected | Cover cap: alu color | I | 20.0 | 12.0 | 5.2 | - | Powder coated | Alu color | 5 | 1.5 | |
| 093WW204N05S01 | Cover cap: alu color | I | 20.0 | 12.0 | 5.2 | With assembly set 1 | Powder coated | Alu color | 5 | 1.5 | |
| 093WW204N06R | Cover cap: Black | B | 20.0 | 12.0 | 6.3 | - | Plain | - | 6 | 1.5 | |
| 093WW204N06RS | Cover cap: Black | B | 20.0 | 12.0 | 6.3 | With assembly set 2 | Plain | - | 6 | 1.5 |
Description 093WW204N05

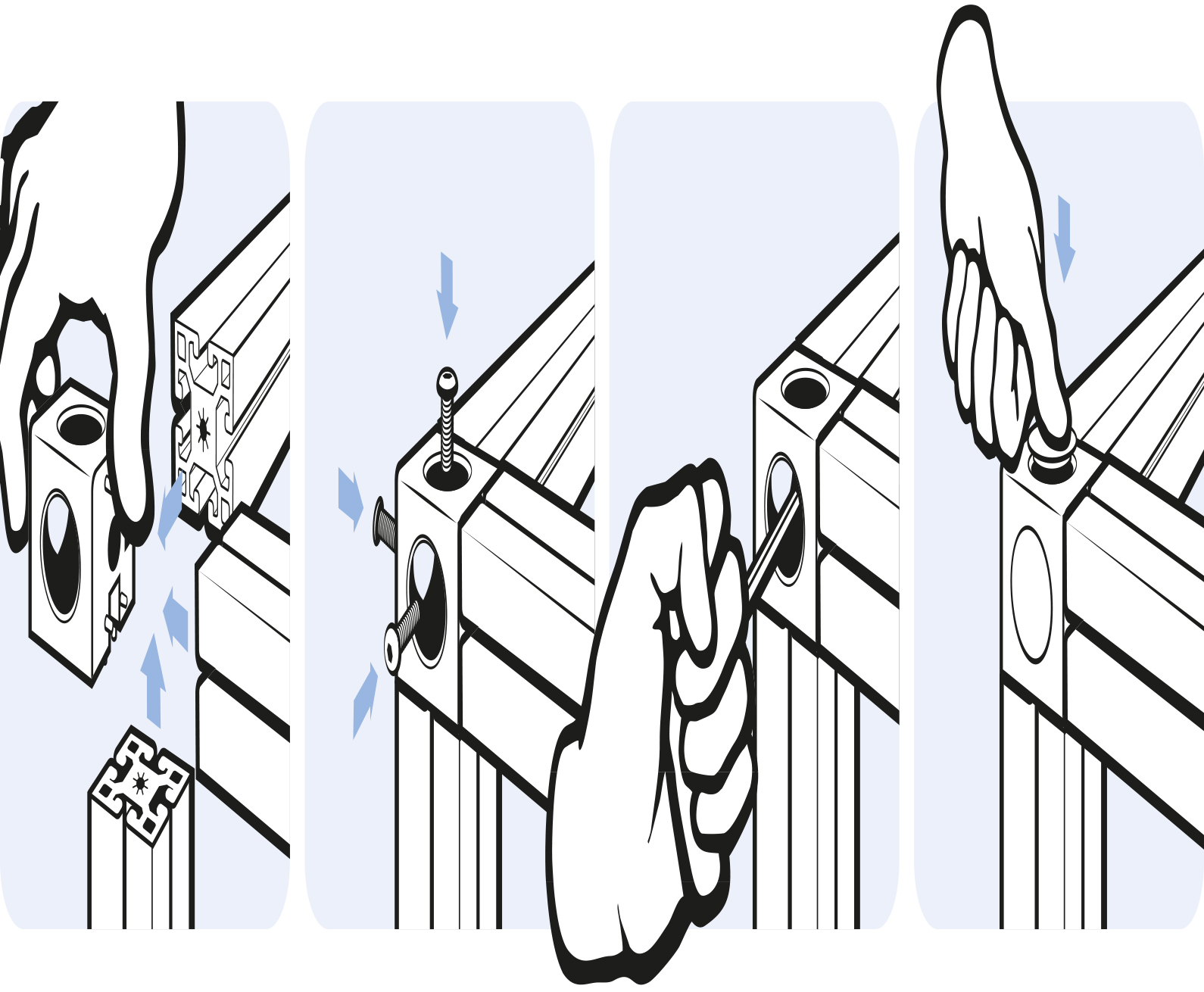

- Assembly Set 1
3 screws DIN EN ISO 7380 (DIN 34805) - M5 x 14
- Assembly Set 2
3 self-forming screws S6 x 16 - AF 4
- Color
Cube connector: Alu color
Cover caps: Black / alu color
- Description
To connect three aluminum profiles at right angles; with cover caps to cover the bores
- Material
Cube connector: Zinc die-cast
Cover caps: Plastic PA
Assembly set: Steel
- Surface
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 5 |
| Pack Quantity | 10 pieces |
| Model | Zinc die-cast, with Cover Caps |

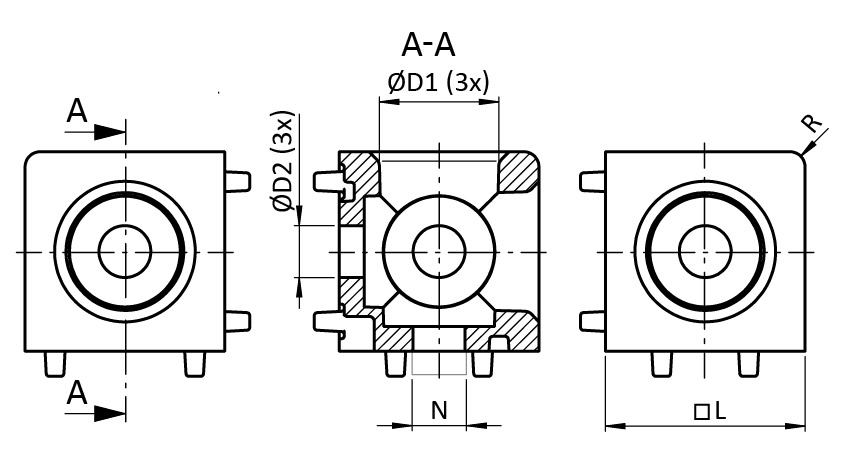

Drawing
From the FATH catalogue (EC-EN, p. 469)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
