Cube Connector 25 - 1", 3D
Part #: 093WW252N06 · 2 variants
To connect three aluminum profiles at right angles; with cover caps to cover the bores
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 24 g
- ECLASS
- 23360290
- Category
- for Profile 1", Cube Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | L (mm) | D1 (mm) | D2 (mm) | Assembly Set | Slot N (mm) | R (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|
| 093WW252N06✓ Selected | Cover cap: alu color | 25.4 (1") | 12.0 | 7.2 | - | 6 | 2.0 | |
| 093WW252N06S01 | Cover cap: alu color | 25.4 (1") | 12.0 | 7.2 | incl. assembly set | 6 | 2.0 |
Description 093WW252N06

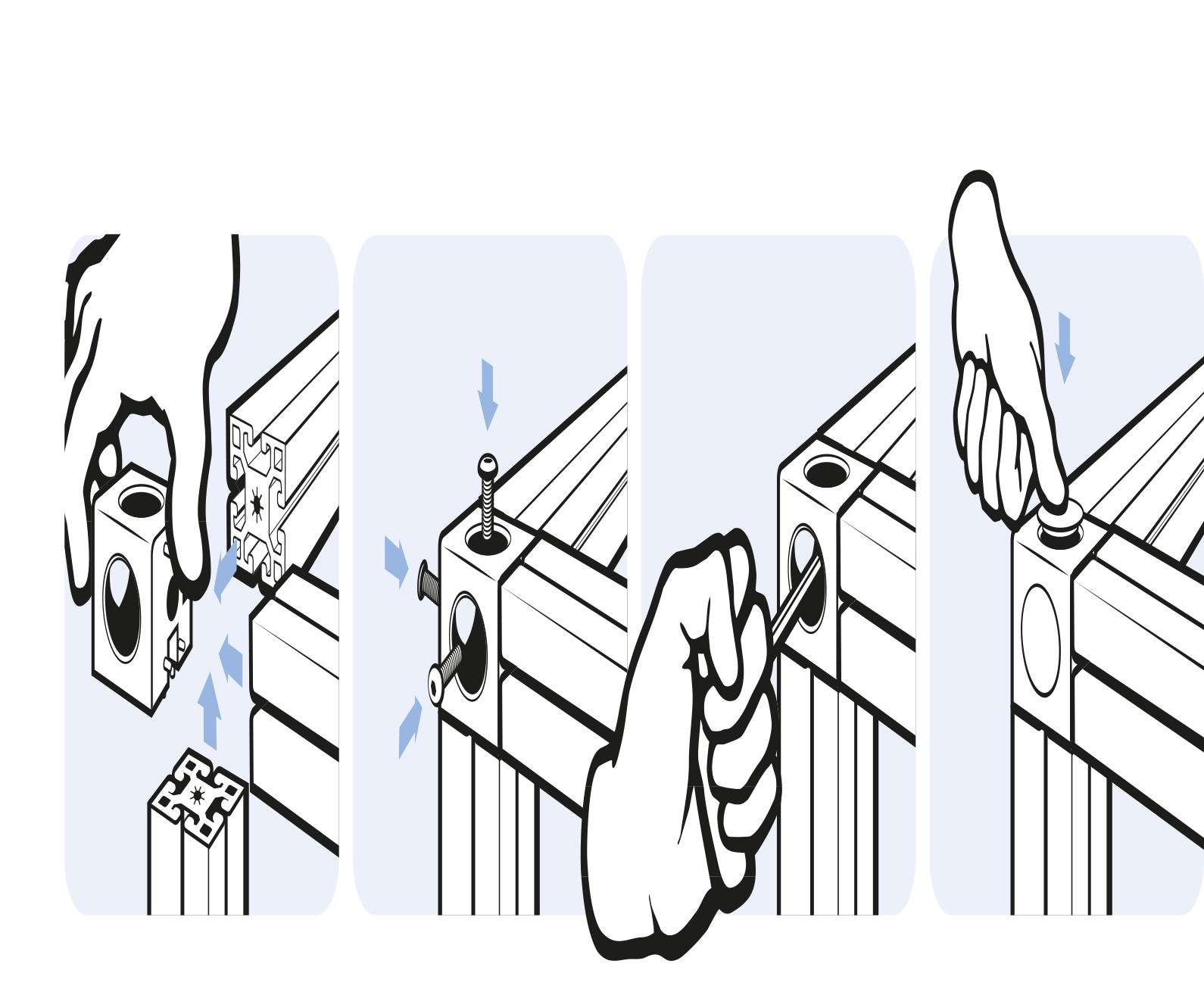

- Assembly Set
3 screws DIN EN ISO 7380 (DIN 34805) - UNC 1/4-20x1"
- Color
Cube connector: Alu color
Cover caps: Alu color
- Description
To connect three aluminum profiles at right angles; with cover caps to cover the bores
- Material
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel
- Surface
Cube connector: Powder coated
Cover caps: Laquered
Assembly set: Zinc plated
Properties
| Slot Size | Slot 6 |
|---|---|
| Product Feature | Fractional |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, with cover caps |

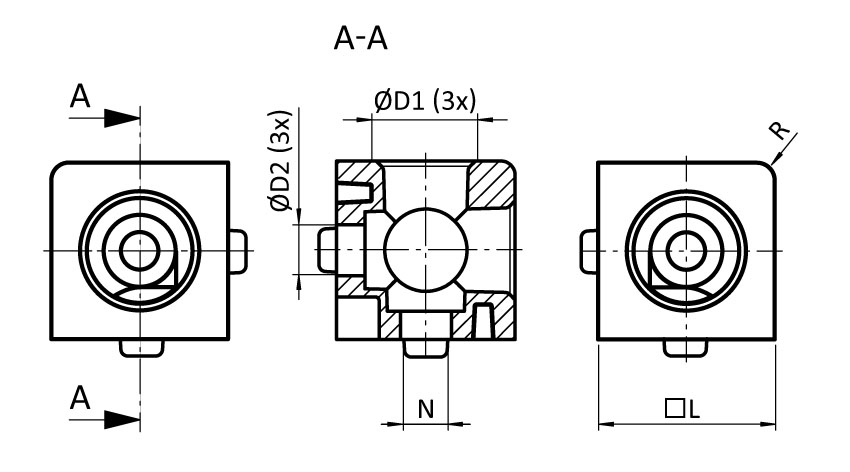

Drawing
From the FATH catalogue (EC-EN, p. 471)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
