Cube Connector 45, 3D
Part #: 093WW454N10 · 4 variants
To connect three aluminum profiles at right angles; with cover caps to cover the bores
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 151.5 g
- ECLASS
- 23360290
- Category
- Profile 45, Cube Connectors
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Profile | L (mm) | D1 (mm) | D2 (mm) | Assembly Set | Surface | Color | Slot N (mm) | R (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 093WW454N10✓ Selected | Cover cap: alu color | B | 45.0 | 24.0 | 13.0 | - | Powder coated | Alu color | 10 | 3.0 | |
| 093WW454N10R | Cover cap: Black | B | 45.0 | 24.0 | 13.0 | - | Plain | - | 10 | 3.0 | |
| 093WW454N10RS | Cover cap: Black | B | 45.0 | 24.0 | 13.0 | incl. assembly set | Plain | - | 10 | 3.0 | |
| 093WW454N10S | Cover cap: alu color | B | 45.0 | 24.0 | 13.0 | incl. assembly set | Powder coated | Alu color | 10 | 3.0 |
Description 093WW454N10

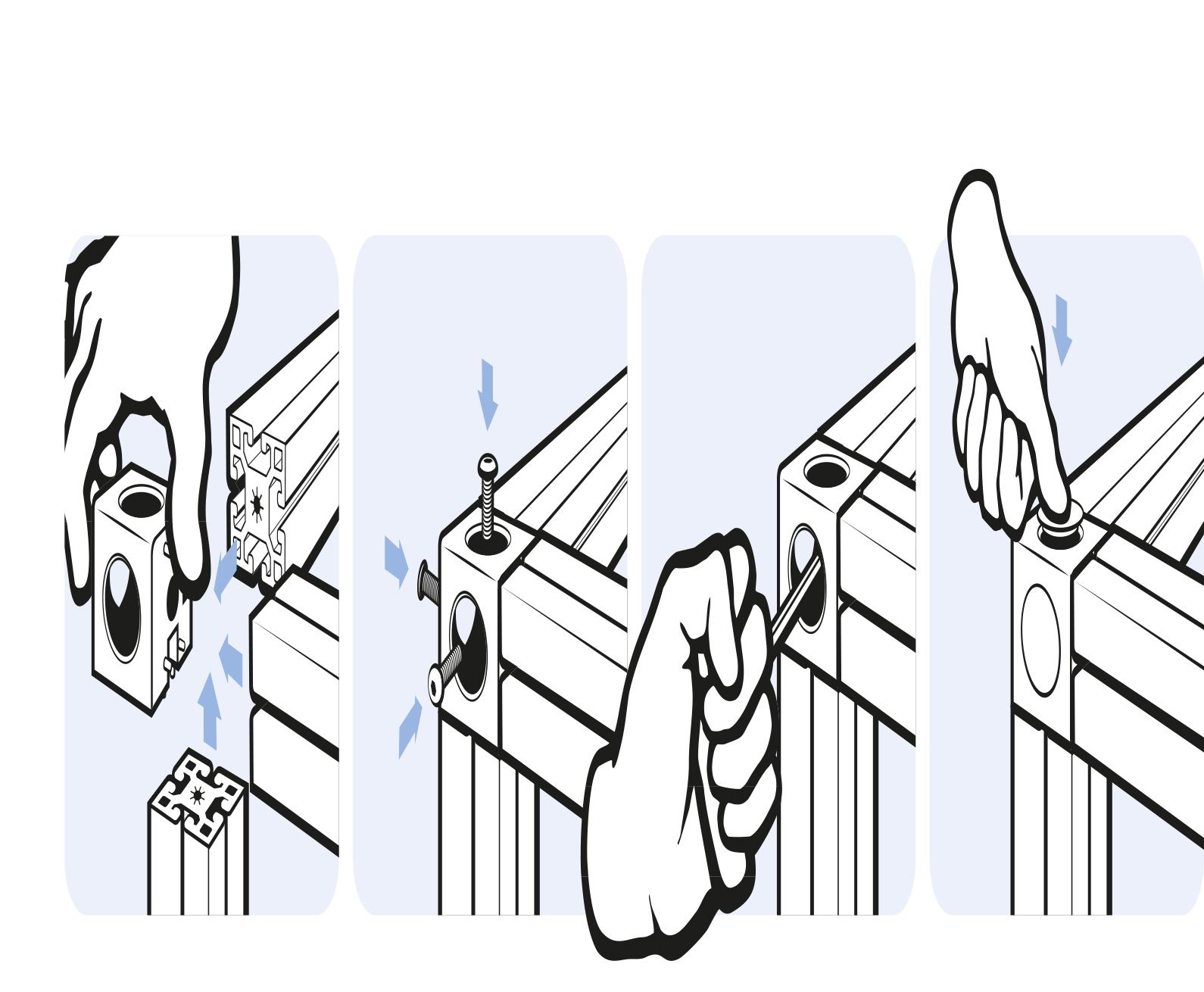

- Assembly Set
3 self-forming screws S12 x 30 - hexalobular socket T50
- Color
Cube connector: Alu color
Cover caps: Black / alu color
- Description
To connect three aluminum profiles at right angles; with cover caps to cover the bores
- Material
Cube connector: Aluminum die-cast
Cover caps: Plastic PA
Assembly set: Steel
- Surface
Cube connector: Plain / powder coated
Cover caps: Laquered
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, with cover caps |

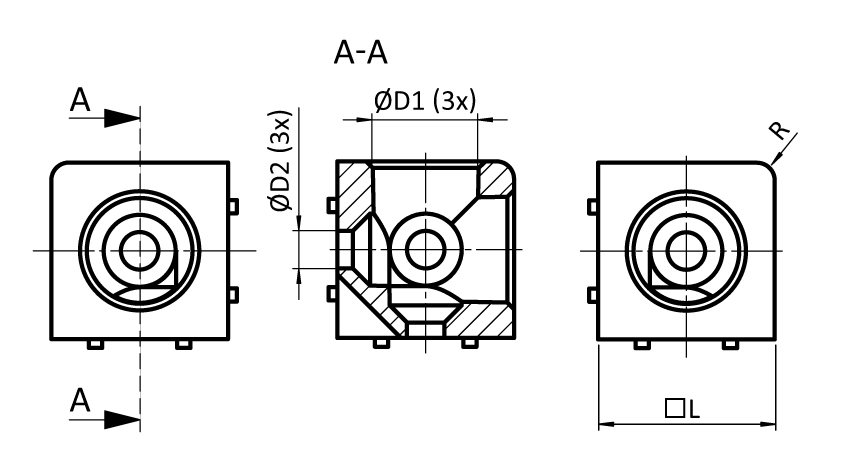

Drawing
From the FATH catalogue (EC-EN, p. 477)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
