Double System Arm I80H 695 (Set)

Description 6FA40ND80H695N08

Color

Arm: Alu color

Housing: Alu color

Cover ring: Gray ≈ RAL 7042

Cover caps: Gray ≈ RAL 7042

Centering plates: Alu color

Description

Stable double pivot arm with a reach of approximately 695 mm and various connection options; pivotable 360°; pre-assembled

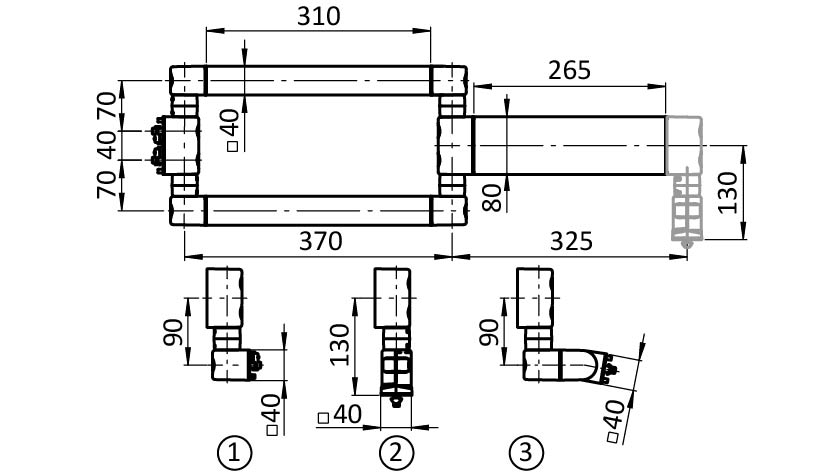

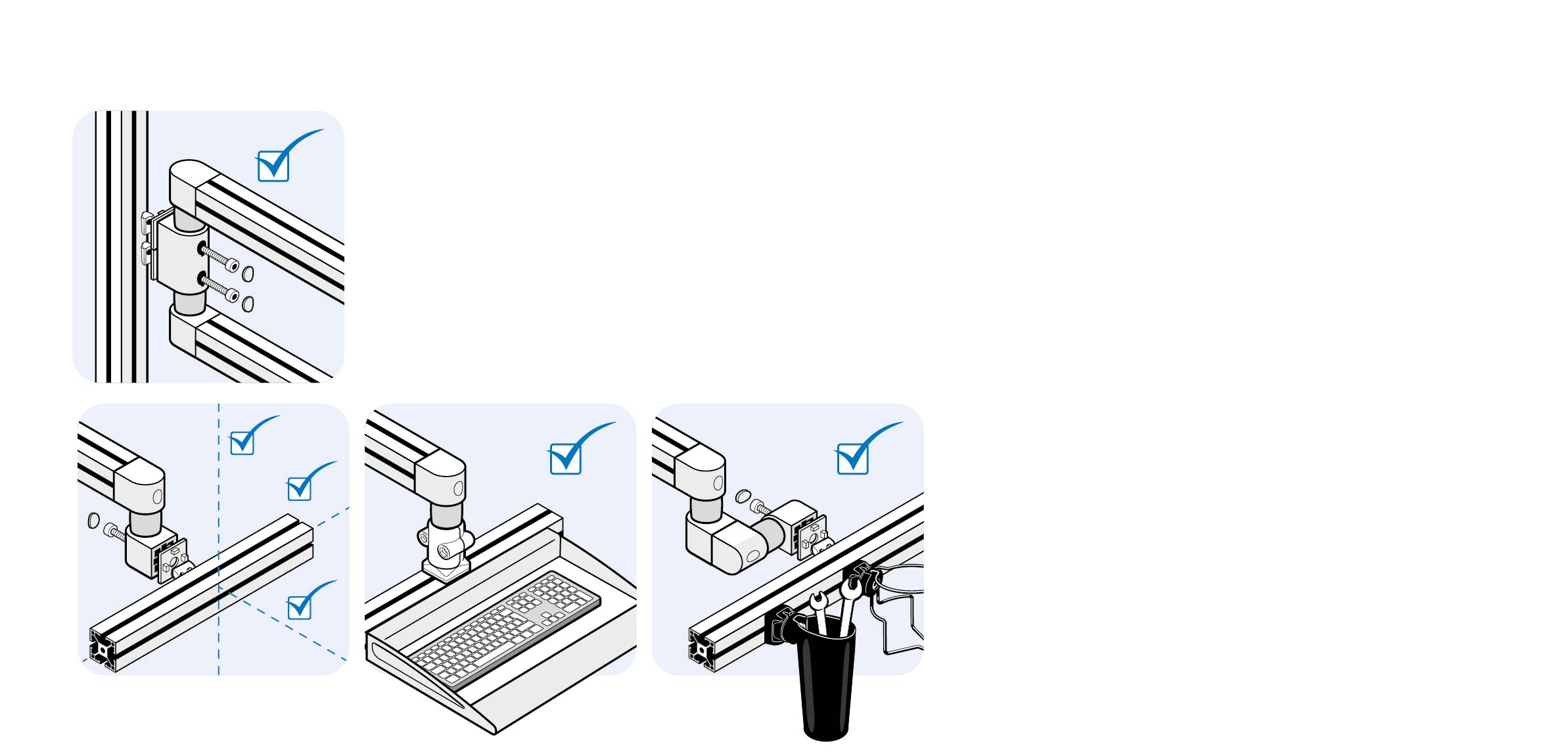

System arm can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)

Material

Arm: Aluminum

Housing: Aluminum die-cast

Cover ring: Plastic

Inserts: Steel

Friction shaft: Steel

Cover caps: Plastic

Screws: Steel

Washers: Steel

Centering plates: Aluminum die-cast

T-slot nuts: Steel

Set 1

1 double system arm I80H 695 with friction joint

3 cover caps

3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),

3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),

3 washers 8-FSt,

3 centering plates,

3 T-slot nuts - slot 8 - M8

Set 2

1 double system arm I80H 695 with end friction joint

2 cover cap

2 screw DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),

1 screw DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),

2 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),

1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),

3 washers 8-FSt,

3 centering plates,

3 T-slot nuts - slot 8 - M8

Set 3

1 double system arm I40H 695 with double friction joint

3 cover caps

3 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),

3 screws DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),

3 washers 8-FSt,

3 centering plates,

3 T-slot nuts - slot 8 - M8

Surface

Arm: Anodized

Housing: Powder coated

Screws: Zinc plated

Washers: Zinc plated

Centering plates: Powder coated

T-slot nuts: Zinc plated
