FATH

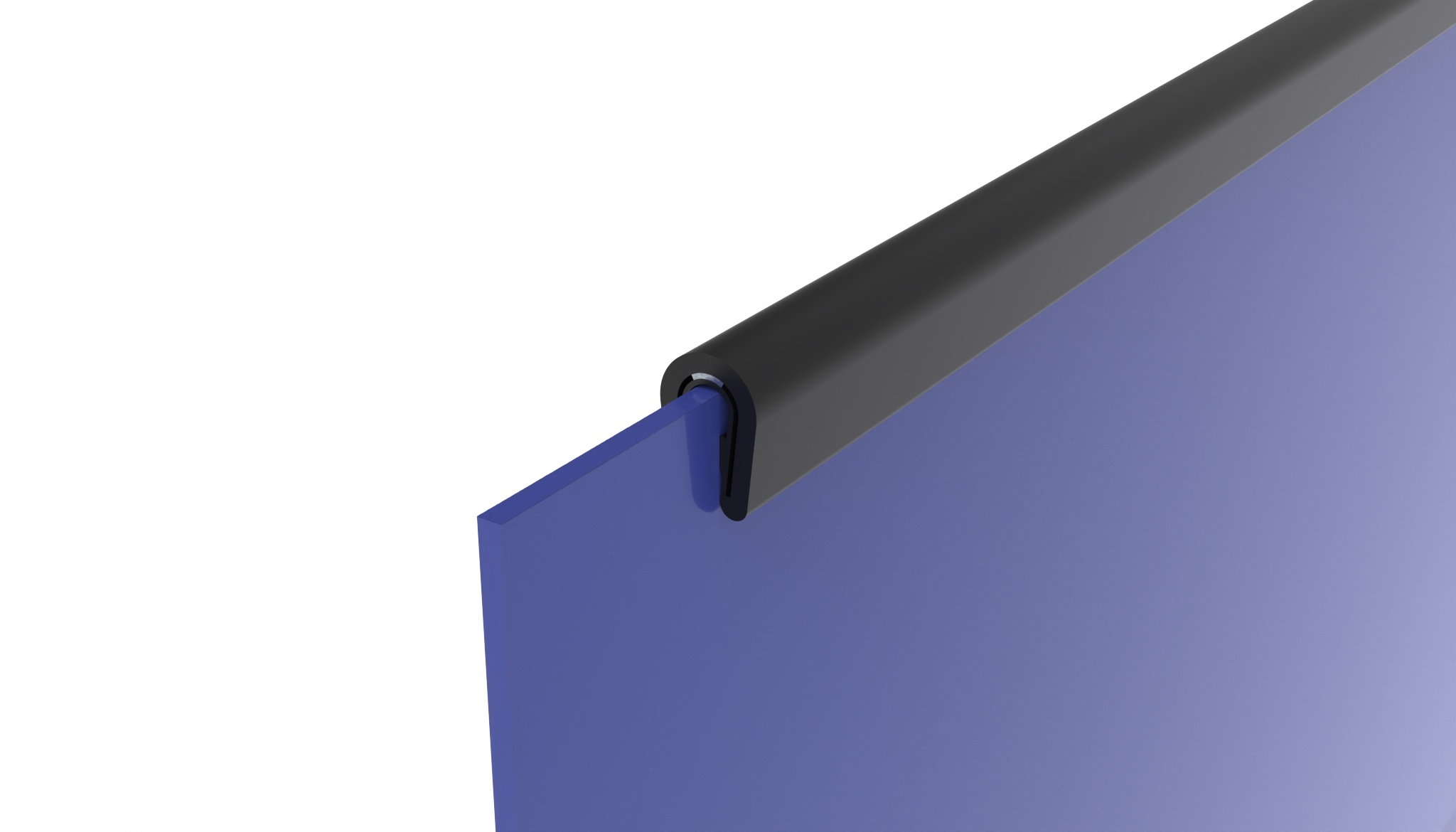

Edge Protection Profile 6 x 9
Part #: 087EPE01711 · 3 variants
For protecting the edges of panels; Self-clamping with split clamping band
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 meters (1 roll)
- Weight
- 32 g/m
- Category
- Edge Protection Profiles
Versions
Select a version — the description and files below follow your selection.
| Part # | Color | Clamping Range (mm) | Add 1 pc to enquiry |
|---|---|---|---|
| 087EPE01711✓ Selected | Gray ≈ RAL 7042 | 1.0 - 2.0 | |
| 087EPE01911 | Black | 1.0 - 2.0 | |
| 087EPE01931 | White ≈ RAL 9016 | 1.0 - 2.0 |
Description 087EPE01711
- Color
Black, white, gray
- Description
For protecting the edges of panels;
Self-clamping with split clamping band
- Material
Edge protector: Plastic PVC, 78 Shore A
Clamping band: Steel
- Specials
Edge protector: Other colors, Butyl sealant on request
Clamping band: Stainless steel, non-split on request
Other cross-sections on request
Properties
| Pack Quantity | 100 meters (1 roll) |
|---|---|
| Clamping Band | Center bar |
Drawing
From the FATH catalogue (IH-US-EN, p. 271)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
