FATH
Edge Sealing Profile 13.2 x 34
Part #: 087SPET04911 · 3 variants

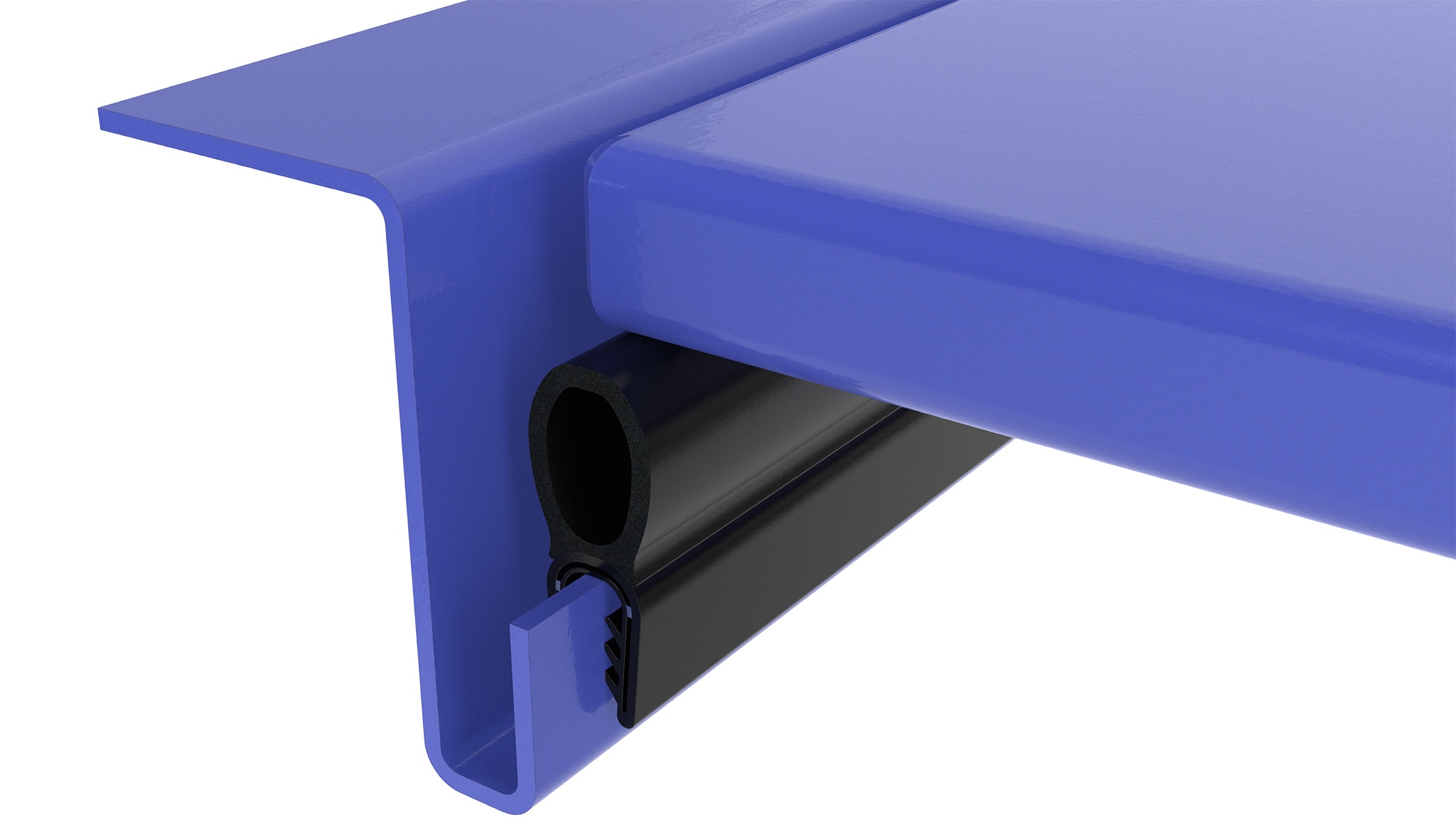

Combination of edge protector and sealing profile; Self-clamping with split clamping band
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 50 meters (1 roll)
- Weight
- 181 g/m
- Category
- Edge Sealing Profiles
Versions
Select a version — the description and files below follow your selection.
| Part # | Color | Clamping Range (mm) | Add 1 pc to enquiry |
|---|---|---|---|
| 087SPET04911✓ Selected | Black | 1.0 - 2.5 | |
| 087SPET04912 | Black | 2.0 - 4.0 | |
| 087SPET04913 | Black | 4.0 - 6.0 |
Description 087SPET04911
- Color
Edge protector: Black
Clamping lips: Transparent (colorless)
Sealing profile: Black
- Description
Combination of edge protector and sealing profile;
Self-clamping with split clamping band
- Material
Edge protector: Plastic PVC, 78 Shore A
Clamping lips: Plastic PVC, 57 Shore A
Sealing profile: Foam rubber EPDM
Clamping band: Steel
- Specials
Edge protector: Other colors, Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Clamping band: Stainless steel, non-split, single-sided split on request
Other cross-sections on request
Properties
| Pack Quantity | 50 meters (1 roll) |
|---|---|
| Clamping Band | Double bar |

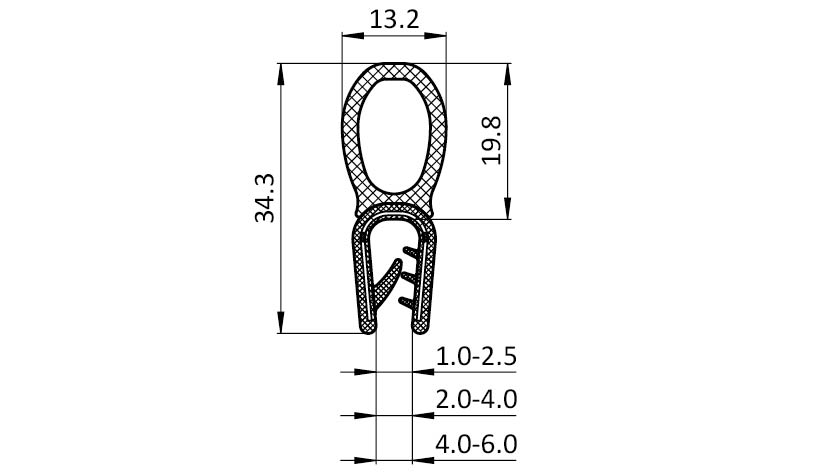

Drawing
From the FATH catalogue (IH-US-EN, p. 273)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
