FATH
Edge Sealing Profile 21.8 x 15
Part #: 087SPES06911 · 2 variants
Combination of edge protector and sealing profile; Self-clamping with split clamping band
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 50 Meter
- Weight
- 190 g/m
- Category
- Edge Sealing Profiles
Versions
Select a version — the description and files below follow your selection.
| Part # | Material | Color | Clamping Range (mm) | Pack Quantity | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 087SPES06911✓ Selected | EPDM / EPDM | Black | 1.0 - 3.5 | 50 Meter | |
| 087SPES06912 | CR / CR | Black | 1.0 - 3.5 | 75 Meter |
Description 087SPES06911
- Color
Black
- Description
Combination of edge protector and sealing profile;
Self-clamping with split clamping band
- Material
Edge protector: Soft rubber EPDM / soft rubber CR
Sealing profile: Foam rubber EPDM / CR
Clamping band: Steel
- Specials
Edge protector: Butyl sealant on request
Sealing profile: Lubricant varnish, flocking, EMI film on request
Finishing: Flame resistant, anti-fungal on request
Clamping band: Stainless steel, non-split on request
Other cross-sections on request
Properties
| Pack Quantity | 50 Meter |
|---|---|
| Clamping Band | Center bar |

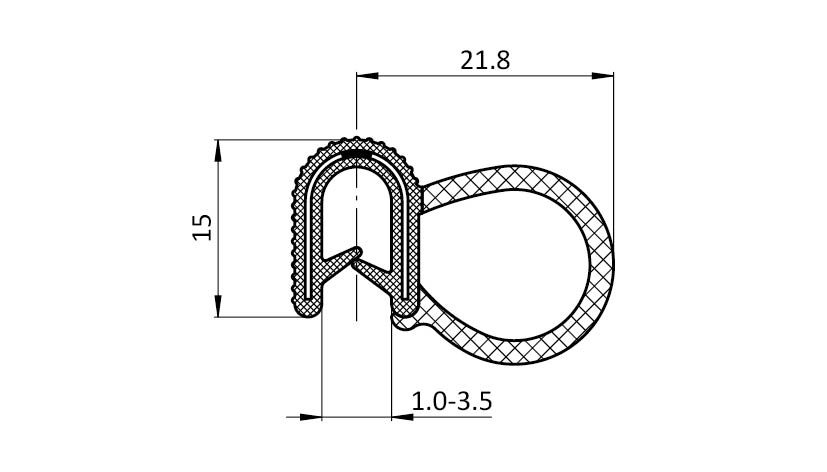

Drawing
From the FATH catalogue (IH-US-EN, p. 276)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
