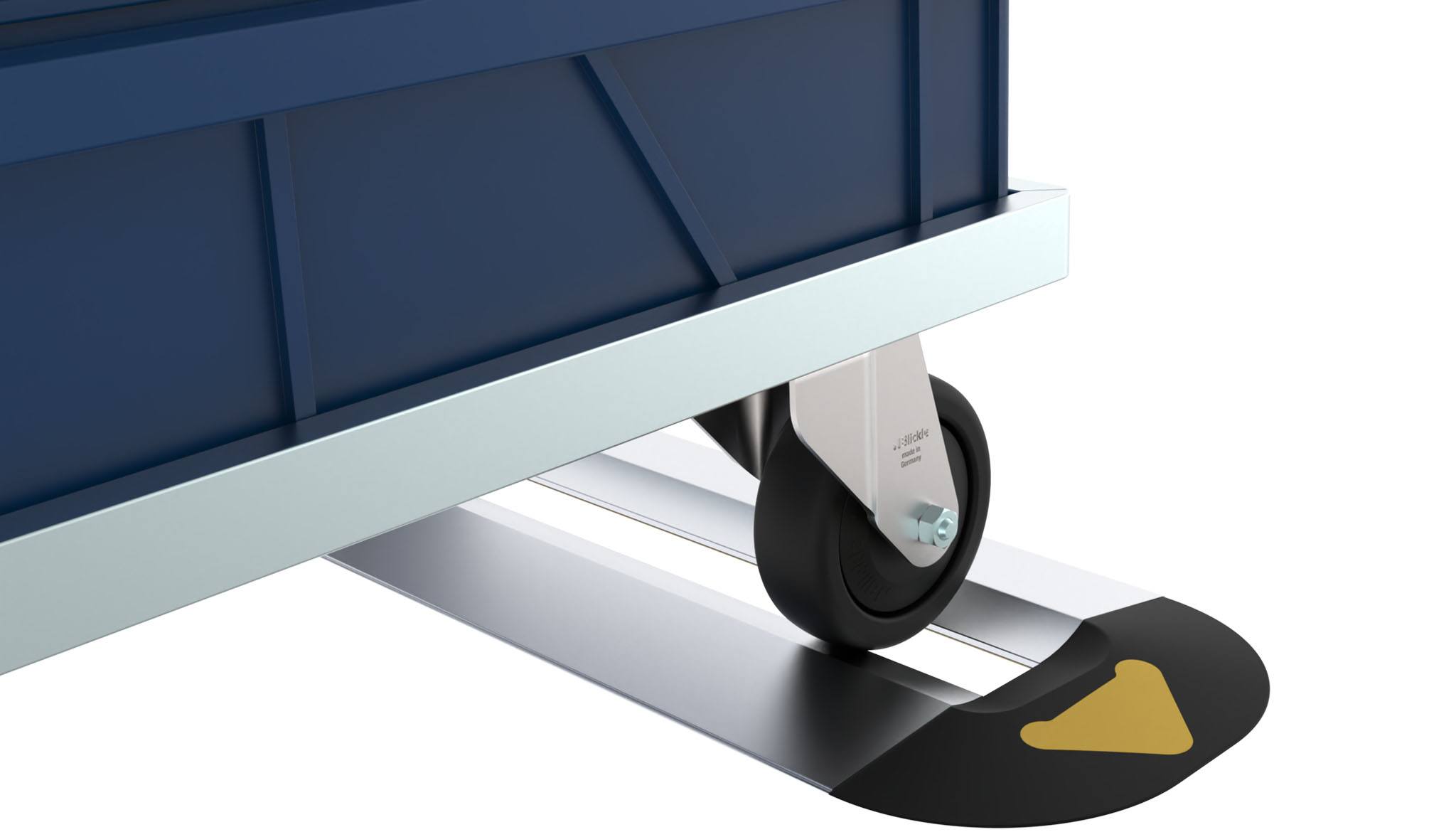

End Cap XL for Parking Rail Flat - High (Set)
Part #: 02084LHXLS01
One-piece XL end caps, no spacers required for large wheel diameters; self-adhesive; Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 100 g
- ECLASS
- 21070491
- Category
- Parking Rails
Description 02084LHXLS01
- Color
End caps: Black
Position markings: Yellow ≈ RAL 1003
- Description
One-piece XL end caps, no spacers required for large wheel diameters; self-adhesive;
Yellow position markings with signal effect to indicate the position of the wheels from floor dollys or material trolleys in the parking rail
- Fastening

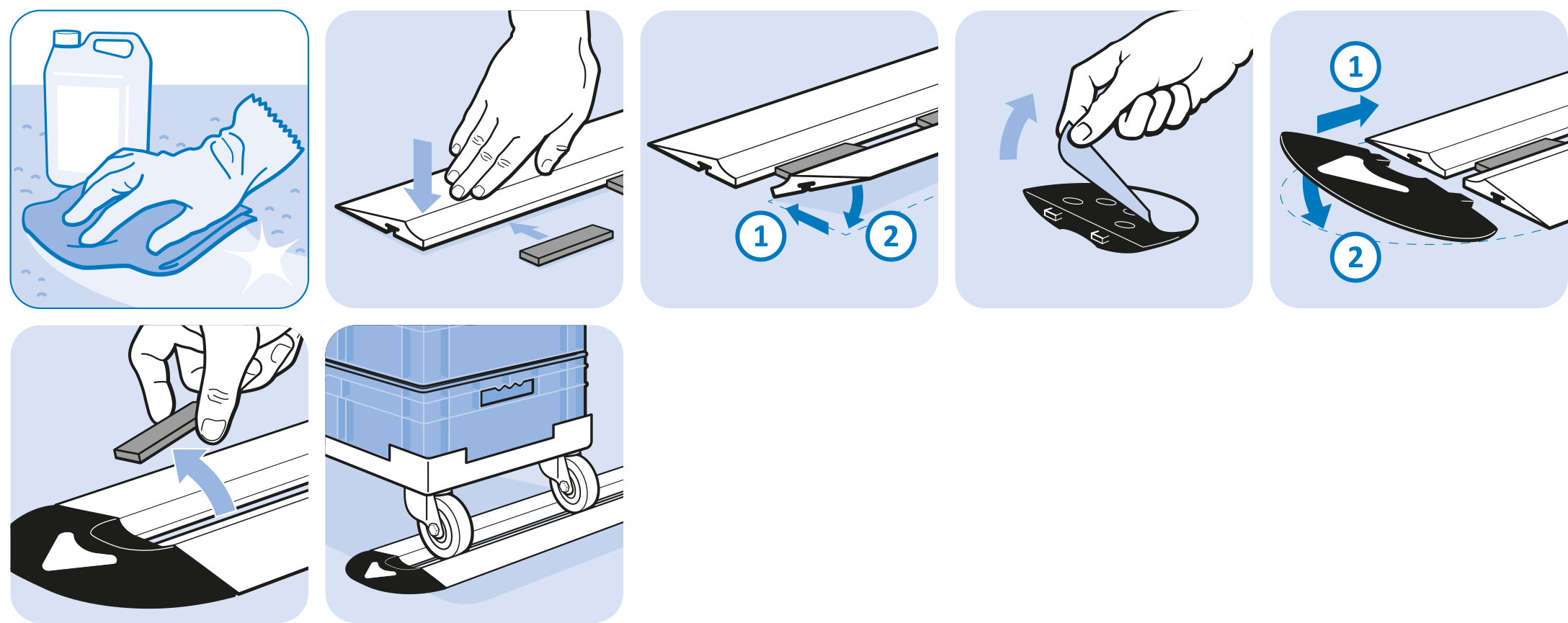

Self-adhesive surface on the backside
- Material
End caps: Plastic PA, glass ball reinforced
Position markings: Plastic PET
- Set
1 XL end cap left,
1 XL end cap right,
2 position markings
- Tip
Compatible Parking Rail flat / high (set) for medium to heavy weights see 02081ALH.0400,
Compatible Position Marking as replacement see 02084S.15
Properties
| Application Area | Industrial Work Stations, Intralogistics, Shopfloor |
|---|---|
| Pack Quantity | 1 piece |
| Model | XL version, for wheel diameter > 100 mm |

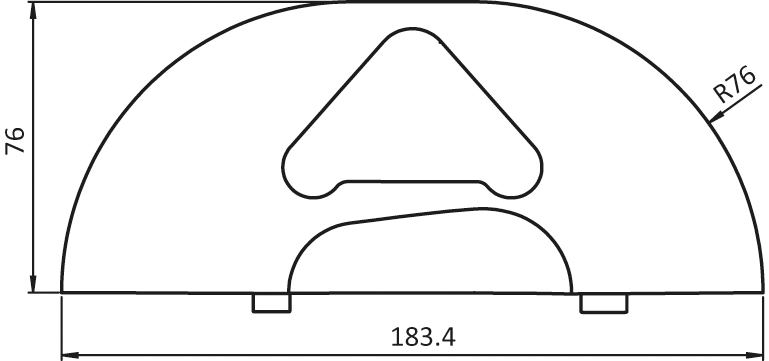

Drawing
From the FATH catalogue (SI-EN, p. 234)
