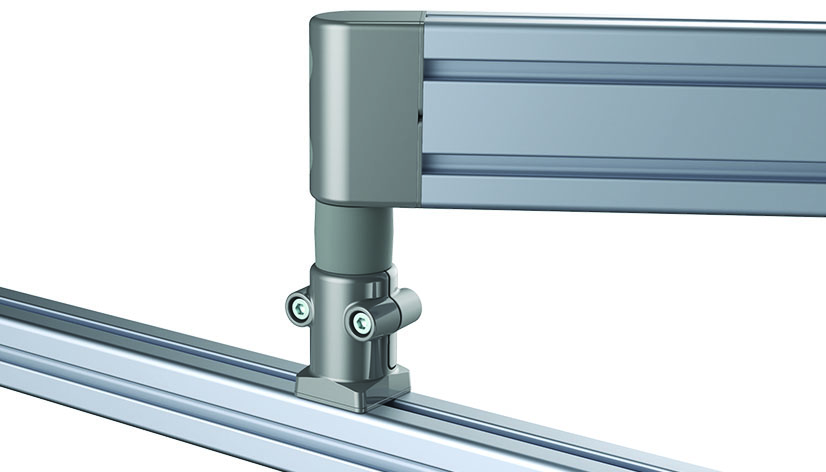

End Friction Joint I80L for System Arm (Set)
Part #: 061FAB80LN08 · 6 variants
Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°; End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile; Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 1055.5 g
- ECLASS
- 23360301
- Category
- Friction Joints for System Arm
Versions
Select a version — the description and files below follow your selection.
| Part # | Profile | Slot N (mm) | R (mm) | MAmax (Nm) | W (Nm) | L x B (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 061FAB80LN08✓ Selected | I | 8 | 4.0 | 70.0 | 12.0 | 80 x 40 | |
| 061FAL80LN08 | I | 8 | 4.0 | 70.0 | 15.0 | 80 x 40 | |
| 061FAM80LN08 | I | 8 | 4.0 | 70.0 | 9.0 | 80 x 40 | |
| 061FAN80LN08 | I | 8 | 4.0 | 70.0 | 3.0 | 80 x 40 | |
| 061FAS80LN08 | I | 8 | 4.0 | 70.0 | 6.0 | 80 x 40 | |
| 061FAZ80LN08 | I | 8 | 4.0 | 70.0 | 0.5 | 80 x 40 |
Description 061FAB80LN08
- Color
Housing: Alu color
Cover ring: Gray ≈ RAL 7042
Cover caps: Gray ≈ RAL 7042
Centering plates: Alu color
- Description
Connection joint with friction for the creation of system arms using profile pieces; pivotable 360°;
End side can be attached lateral or transverse on the profile slot, friction axis is positioned at right angles to the profile;
Friction joint side can be attached lateral, transverse, or on the face of the profile; if attached on the front face, the core hole of the respective profile must be M8 threaded (min. 15 mm deep)
- Material
Housing: Aluminum die-cast
Cover ring: Plastic
Inserts: Steel
Friction shaft: Steel
Cover caps: Plastic
Screws: Steel
Washers: Steel
Centering plates: Aluminum die-cast
T-slot nuts: Steel
- Set
1 end friction joint
2 cover caps,
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 45 (for T-slot nut friction joint side),
2 screws DIN EN ISO 4762 (DIN 912) - M8 x 25 (for T-slot nut end side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 50 (for core hole friction joint side),
1 screw DIN EN ISO 4762 (DIN 912) - M8 x 30 (for core hole end side),
3 washers 8-FSt,
3 centering plates,
3 T-slot nuts - slot 8 - M8
- Surface
Housing: Powder coated
Centering plates: Powder coated
Screws: Zinc plated
Washers: Zinc plated
T-slot nuts: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Modular Dimension | Modular Dimension 40 |
| Application Area | Industrial Work Stations |
| Pack Quantity | 1 piece |
| Model | 40 mm modular dimension |

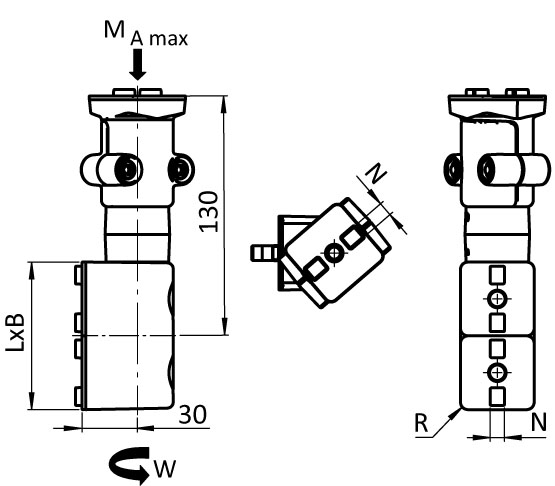

Drawing
From the FATH catalogue (EC-EN, p. 599)
