FATH
Extended Base 80 PA for Swivel Feet, Ball Joint 15
Part #: 098DA080K · 2 variants

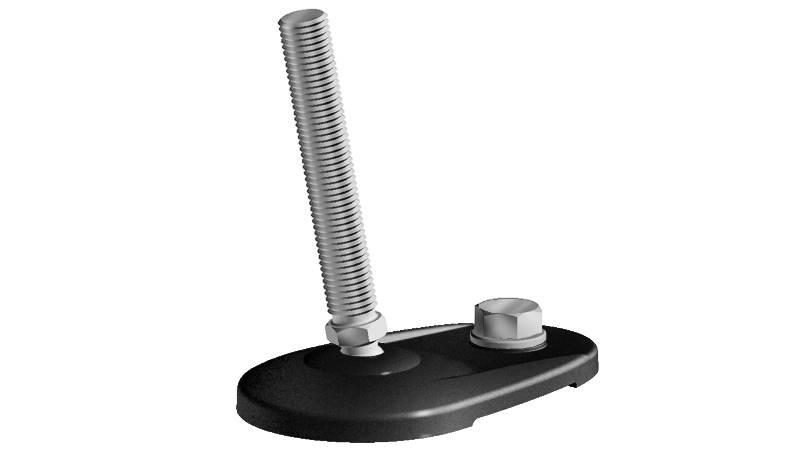

Extended swiveling leveling foot which can be fixed to the floor
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 58.8 g
- ECLASS
- 23010704
- Category
- Bases, Swivel Feet Ball Joint 15
Versions
Select a version — the description and files below follow your selection.
| Part # | Base | Fmax (N) | Version | F1 (mm) | F2 (mm) | F3 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 098DA080K✓ Selected | 80 | 9800 | without anti-slip plate | 30.5 | 33.5 | 34.5 | |
| 098DA080KG | 80 | 9800 | with anti-slip plate | 30.5 | 33.5 | 34.5 |
Description 098DA080K
- Color
Black
- Description
Extended swiveling leveling foot which can be fixed to the floor
- Material
Plastic PA, glass ball reinforced
- Specials
ESD electrostatical discharging, other sizes, other colors, bolt-on or glued anti-slip plate on request;
as factory assembled leveling foot on request
- Tip
Compatible Threaded Rod see 098DM08025M et sq. or 098DM08025E et sq.,
Compatible Nut see 4DIN439BM5M et sq. or 4DIN934M5M et sq.,
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Product Feature | Fractional |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA |

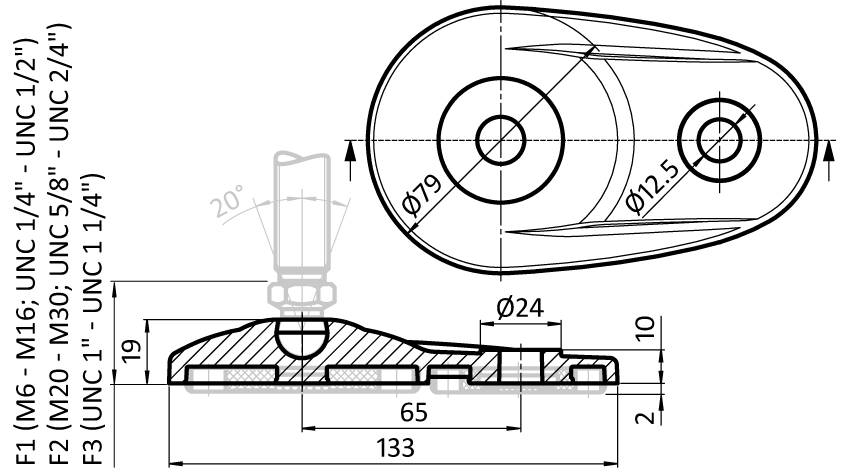

Drawing
From the FATH catalogue (EC-EN, p. 31)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
