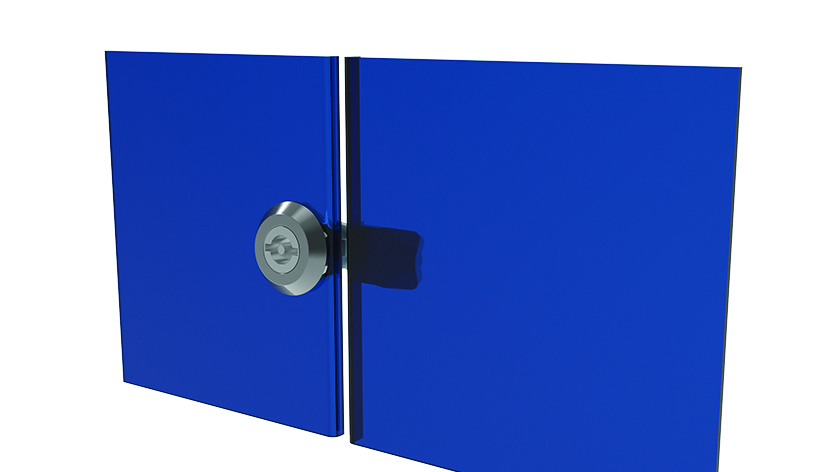

Extended Housing Quarter Turn Lock 22.5 / 18, ZN Chrome
Part #: 0810730 · 17 variants
For easy and secure latching and locking of doors and flaps with padlock option; Wide range of inserts, cams and accessories; Two and four padlock holes
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 68.1 g
- ECLASS
- 23199090
- Category
- Extended Housing Quarter Turn Locks 22.5 / 18
Versions
Select a version — the description and files below follow your selection.
| Part # | Insert type | Add 1 pc to enquiry |
|---|---|---|
| 0810730✓ Selected | Double bit 3.0 mm | |
| 0810738 | Double bit 4.0 mm | |
| 0810746 | Double bit 5.0 mm | |
| 0810754 | Slotted recess 2 x 4 | |
| 0810762 | Slotted recess 2 x 4 coin proof | |
| 0810770 | Triangular 7.0 mm | |
| 0810778 | Triangular 8.0 mm | |
| 0810786 | Square 7.0 mm | |
| 0810794 | Square 8.0 mm | |
| 0810802 | Square 7.0 mm with slotted recess | |
| 0810810 | Square 8.0 mm with slotted recess | |
| 0810818 | Square 8.0 mm female | |
| 0810826 | Female hexagon 8.0 mm | |
| 0810834 | Female hexagon 9.0 mm | |
| 0810842 | Female hexagon 8.0 mm with 3 mm pin | |
| 0810850 | Male hexagon 10.0 mm | |
| 0810858 | Triangular 10.0 mm with M5 screw hole |
Description 0810730
- Color
Insert: Chrome
Housing: Chrome
Seals: Black
- Description
For easy and secure latching and locking of doors and flaps with padlock option;
Wide range of inserts, cams and accessories;
Two and four padlock holes
- Material
Insert: Zinc die-cast
Housing: Zinc die-cast
Seals: Rubber NBR
Nut: Zinc die-cast
Screw: Steel
- Surface
Insert: Chrome plated
Housing: Chrome plated
Nut: Zinc plated
Screw: Zinc plated
- Tip
Compatible Cams see 0810247 et sq.
Accessories see 0890032 et sq.
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |
| Door Version | Right, left |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
