FATH

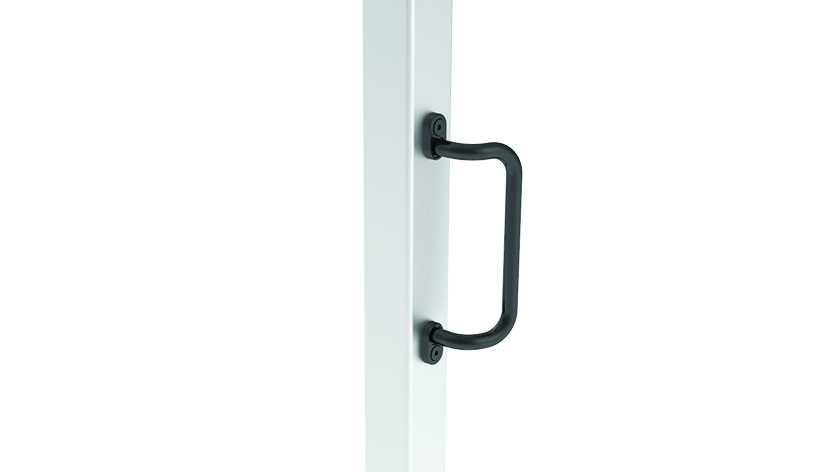

Fastening Set for Handle AL 120
Part #: 092330 · 2 variants
For front mounting of the handles AL 120
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 24 g
- ECLASS
- 23010192
- Category
- Handles
Versions
Select a version — the description and files below follow your selection.
Description 092330
- Color
Black, alu colour
- Description
For front mounting of the handles AL 120
- Material
Zinc die-cast
- Set
2 fastenings
2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 10
- Surface
Powder coated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Zinc die-cast, 120 mm |

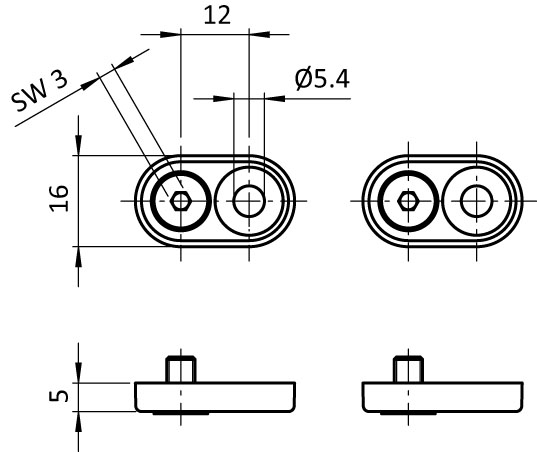

Drawing
From the FATH catalogue (EC-EN, p. 658)
