FATH

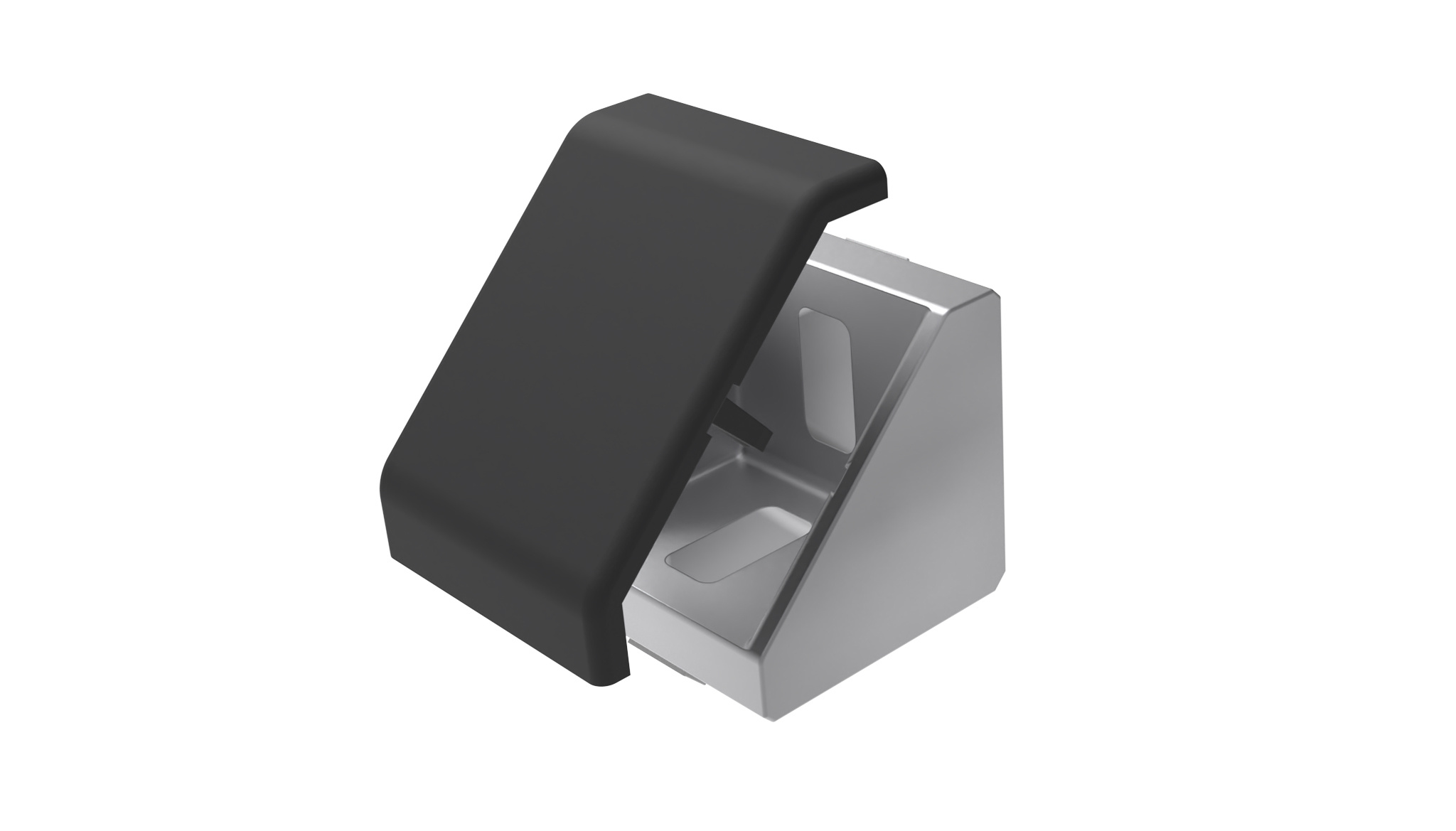

Flat Cover Cap for Alu Connection Angle 45
Part #: 093WA421S02 · 3 variants
To cover the open side of the connection angle
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 9 g
- ECLASS
- 23360292
- Category
- Alu Connection Angles
Versions
Select a version — the description and files below follow your selection.
| Part # | Fig. | ESD | Color | Add 1 pc to enquiry |
|---|---|---|---|---|
| 093WA421S02✓ Selected | ① | - | Black | |
| 093WA421S06 | ② | - | Gray ≈ RAL 7004 | |
| 093WA421S07 | ① | ESD | Black |
Description 093WA421S02
- Color
Black, gray
- Description
To cover the open side of the connection angle
- Material
Plastic PA, glass fiber reinforced
- Specials
Other colors on request
- Tip
Compatible Centering Piece Widening Slot 8 to Slot 10 for Alu Connection Angle see 093W02
Compatible Alu Connection Angle 45 see 093W421, 093W423N10
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Plastic PA |

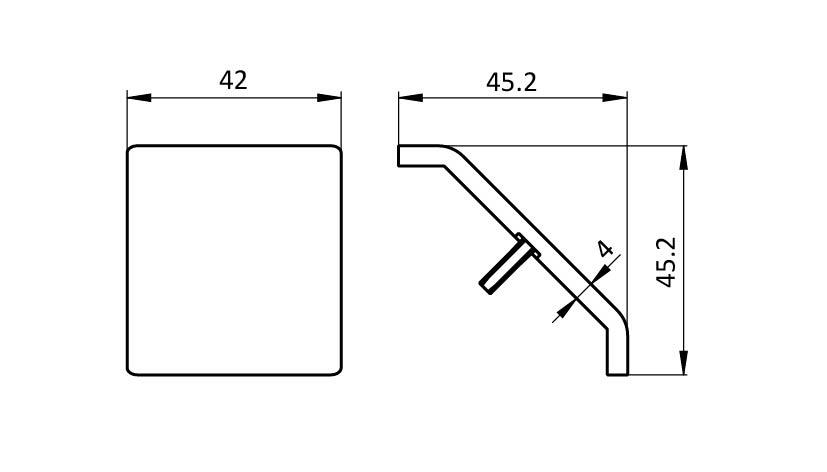

Drawing
From the FATH catalogue (EC-EN, p. 396)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
