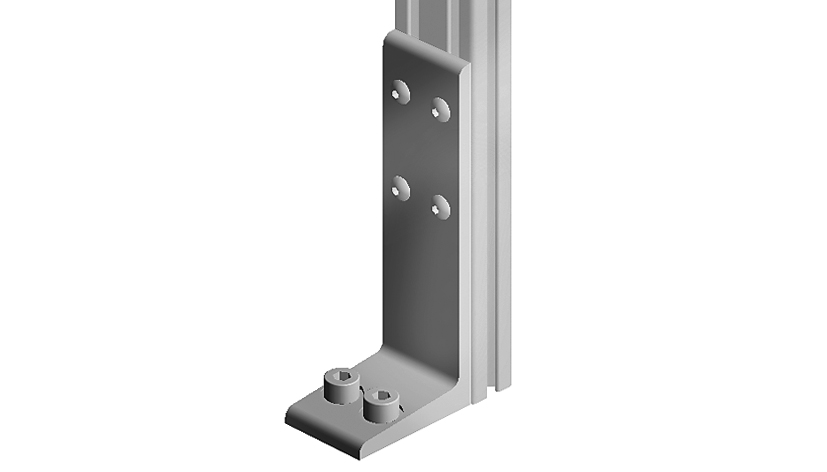

Floor Bracket AL 140, 2 Slots Version
Part #: 093BA140D40 · 6 variants
To securely fix aluminum profiles to the floor
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 119 g
- ECLASS
- 23360290
- Category
- Floor Brackets
Versions
Select a version — the description and files below follow your selection.
| Part # | A (mm) | B (mm) | Modular Dimension (mm) | ØD (mm) | ØD2 (mm) | ØD1 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 093BA140D40✓ Selected | 20.0 | 38.0 | 20 | 5.5 | - | - | |
| 093BA140D51 | 25.4 (1") | 48.0 (1.89") | 25.4 (1") | 7.0 | - | - | |
| 093BA140D60 | 30.0 | 57.0 | 30 | 7.0 | 22.0 | - | |
| 093BA140D76 | 38.1 (1.5") | 72.0 (2.8") | 38.1 (1.5") | 9.0 | 28.0 | 13.5 | |
| 093BA140D80 | 40.0 | 76.0 | 40 | 9.0 | 28.0 | 13.5 | |
| 093BA140D90 | 45.0 | 86.0 | 45 | 9.0 | 28.0 | 13.5 |
Description 093BA140D40
- Description
To securely fix aluminum profiles to the floor
- Material
Aluminum
- Surface
Anodized
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Modular Dimension | Modular Dimension 20 |
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum |

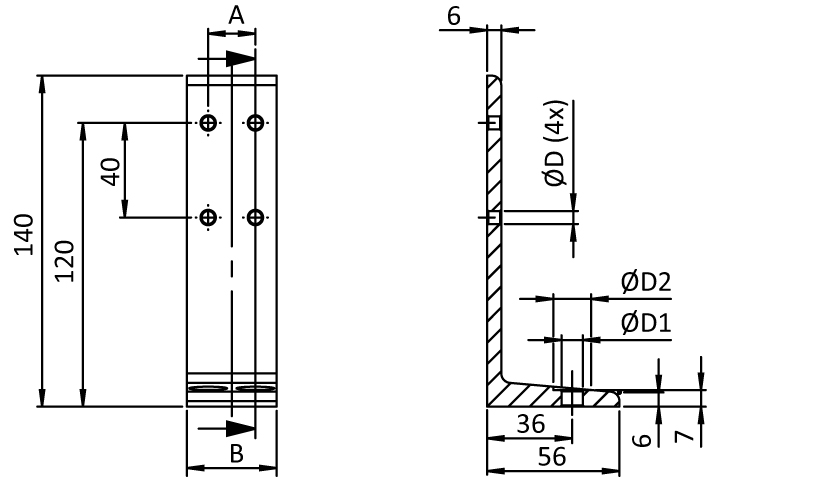

Drawing
From the FATH catalogue (EC-EN, p. 121)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
