FATH

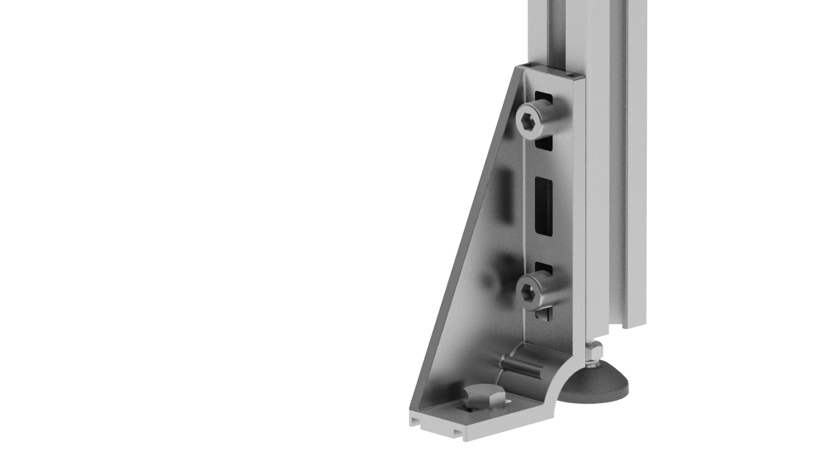

Floor Bracket AL 30
Part #: 093W1171L · 3 variants

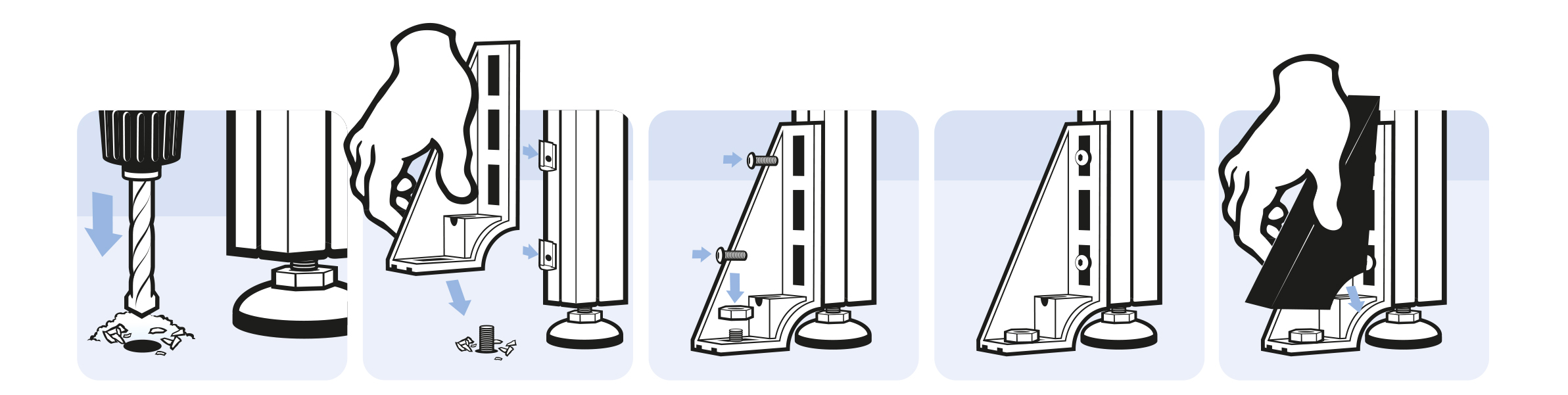

To securely fix aluminum profiles to the floor, can also be used to connect two aluminum profiles at right angle
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 90.4 g
- ECLASS
- 23360290
- Category
- Floor Brackets
Versions
Select a version — the description and files below follow your selection.
| Part # | Slot N (mm) | Add 1 pc to enquiry |
|---|---|---|
| 093W1171L✓ Selected | - | |
| 093W1171LN06 | 6 | |
| 093W1171LN08 | 8 |
Description 093W1171L
- Description
To securely fix aluminum profiles to the floor, can also be used to connect two aluminum profiles
at right angle
- Material
Aluminum die-cast
- Specials
Other surfaces, other colors on request
- Surface
Floor bracket: Plain
- Tip
Compatible Centering Piece Widening Slot 8 to Slot 10 see 093W02
Compatible Cover Cap see 093WA1171L
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast, profile 30 and up |

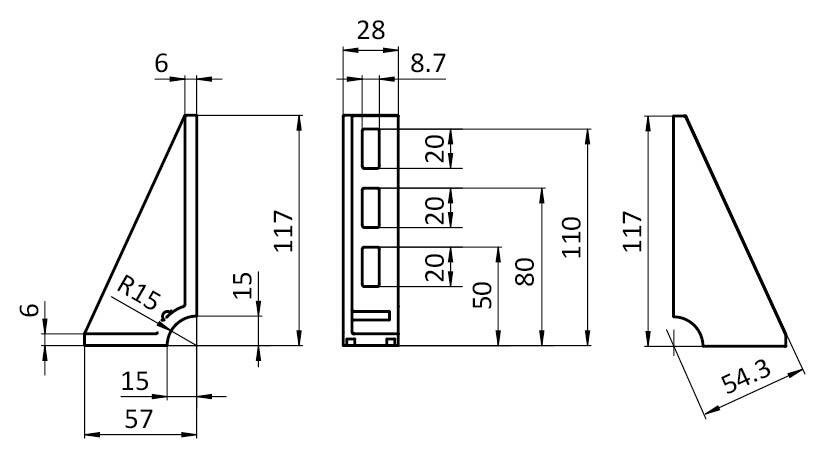

Drawing
From the FATH catalogue (EC-EN, p. 122)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
