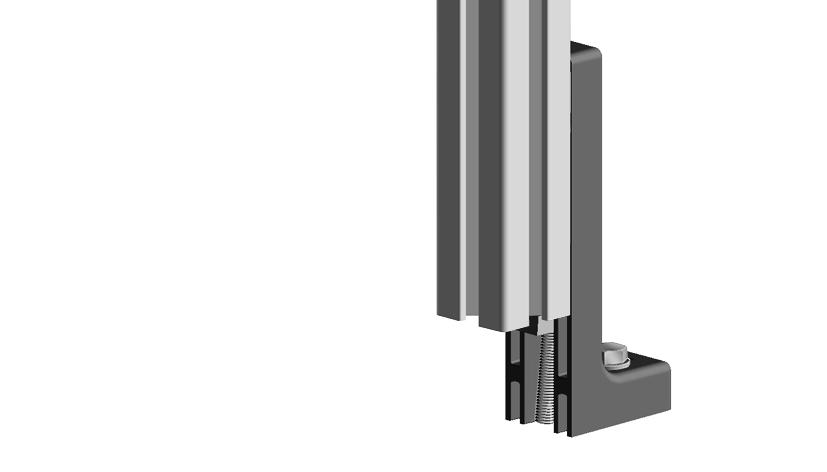

Floor Bracket ZN 160, Adjustable (Set)

Part #: 093B1601N08AS01 · 6 variants

To fix aluminum profiles to the floor vertically adjustable; with adjustment screw and threaded plate

Quantity

Price, availability and delivery time — we send one quote for all products.

Question about this product?

Technical questions, custom versions or quantities — write or call us.

Versions

Select a version — the description and files below follow your selection.

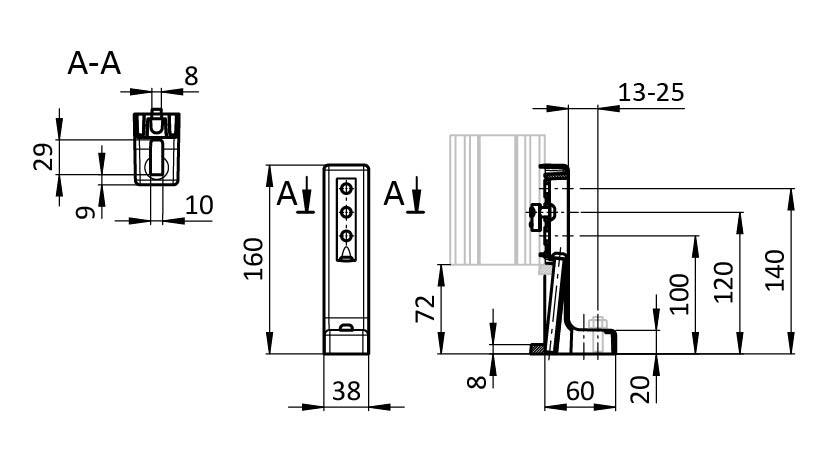

Part #	Fig.	Assembly Set	Surface	Color	Slot N (mm)	Lifting Height (mm)
093B1601N08AS01✓ Selected	③	-	Powder coated	Alu color	8	72.0
093B1601N08RS01	①	-	Plain	-	8	72.0
093B1601N08SS01	②	-	Powder coated	Black	8	72.0
093B1601N08SS02	②	incl. assembly set	Powder coated	Black	8	72.0
093B1601N10RS01	①	-	Plain	-	10	72.0
093B1601N10SS01	②	-	Powder coated	Black	10	72.0

Assembly Set

1 T-slot nut - Nut 8 - M8,

1 screw DIN EN ISO 7380 (DIN 34805) - M8 x 80

Color

Black, alu color, -

Description

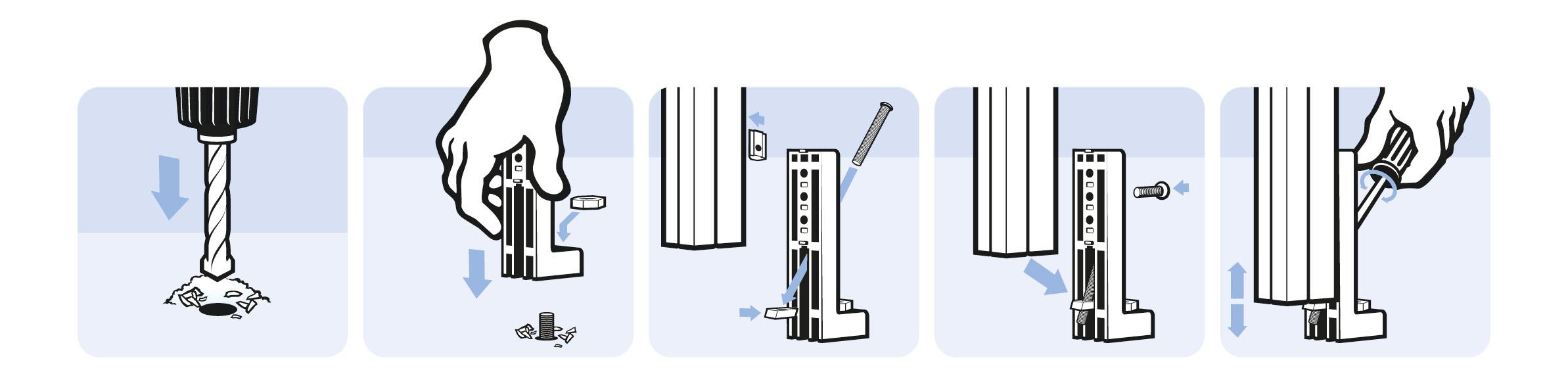

To fix aluminum profiles to the floor vertically adjustable; with adjustment screw and threaded plate

Material

Floor bracket: Zinc die-cast

Assembly set: Steel

Set

1 floor bracket 160,

1 adjusting screw,

1 adjusting plate

Specials

Other surfaces, other colors on request

Surface

Floor bracket: Plain / powder coated

Assembly set: Zinc plated

From the FATH catalogue (EC-EN, p. 127)

FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
