FATH

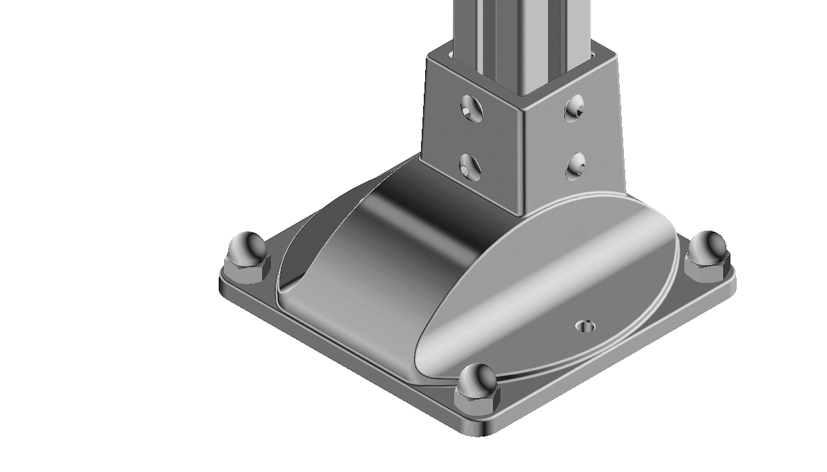

Floor Mount Base
Part #: 098G38150A · 3 variants
To mount aluminum profiles as posts
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 980 g
- ECLASS
- 23360192
- Category
- Floor Mount Bases
Versions
Select a version — the description and files below follow your selection.
| Part # | A (mm) | Modular Dimension (mm) | Add 1 pc to enquiry |
|---|---|---|---|
| 098G38150A✓ Selected | 38.3 (1.51") | 38.1 (1.5") | |
| 098G40150A | 40.3 | 40 | |
| 098G45150A | 45.3 | 45 |
Description 098G38150A
- Description
To mount aluminum profiles as posts
- Material
Aluminum die-cast
- Surface
Plain
- Tip
Compatible Double T-Slot Nut for Floor Mount Base see 096060S54
Properties
| Modular Dimension | Modular Dimension 1.5” - 38.1 |
|---|---|
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

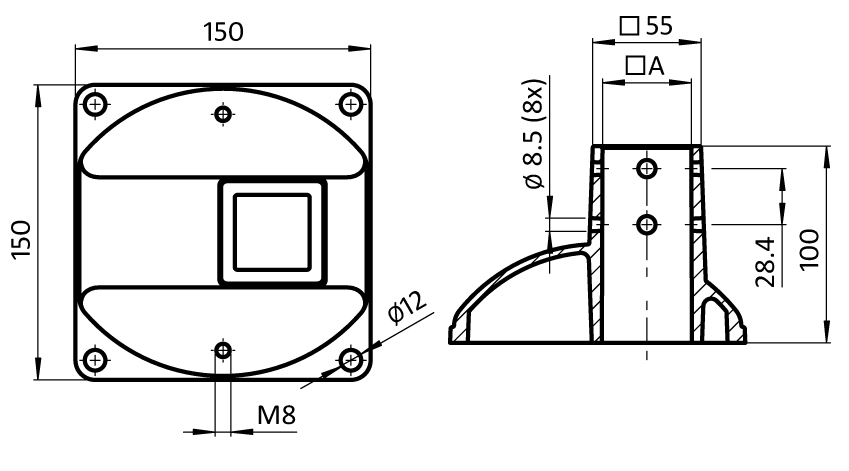

Drawing
From the FATH catalogue (EC-EN, p. 130)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
