FATH

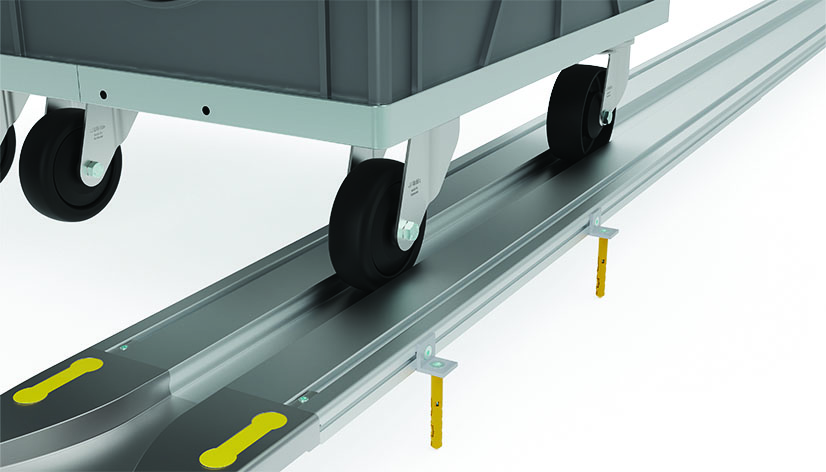

Floor Mounting for Guiding Rail FIFO (Set)
Part #: 093WU201AS01
To additionally mount guiding rails FIFO to the floor
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 25 g
- ECLASS
- 23360290
- Category
- Guiding Rails FIFO
Description 093WU201AS01
- Color
Angle: Alu color
Anchors: Yellow
- Description
To additionally mount guiding rails FIFO to the floor
- Material
Angle: Steel
Screw: Steel
T-slot nut: Steel
Anchors: Plastic
- Set
2 steel connection angle 20,
2 screws DIN EN ISO 10642 (DIN 7991) - M5 x 8; 2 T-slot nuts - slot 5 - M5,
2 screws 5 x 60,
2 anchors 8 x 60
- Surface
Angle: Powder coated
Screws: Zinc plated
T-slot nuts: Zinc plated
Properties
| Application Area | Industrial Work Stations, Intralogistics, Shopfloor |
|---|---|
| Pack Quantity | 1 piece |
| Model | Steel |

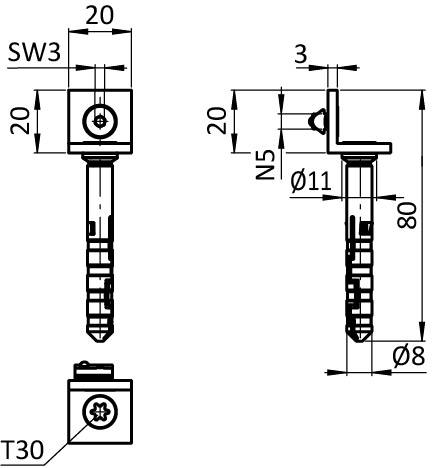

Drawing
From the FATH catalogue (SI-EN, p. 248)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
