FATH
Flush Pocket Pull Handle PA 136.3 x 35.5
Part #: 0813471S01 · 3 variants

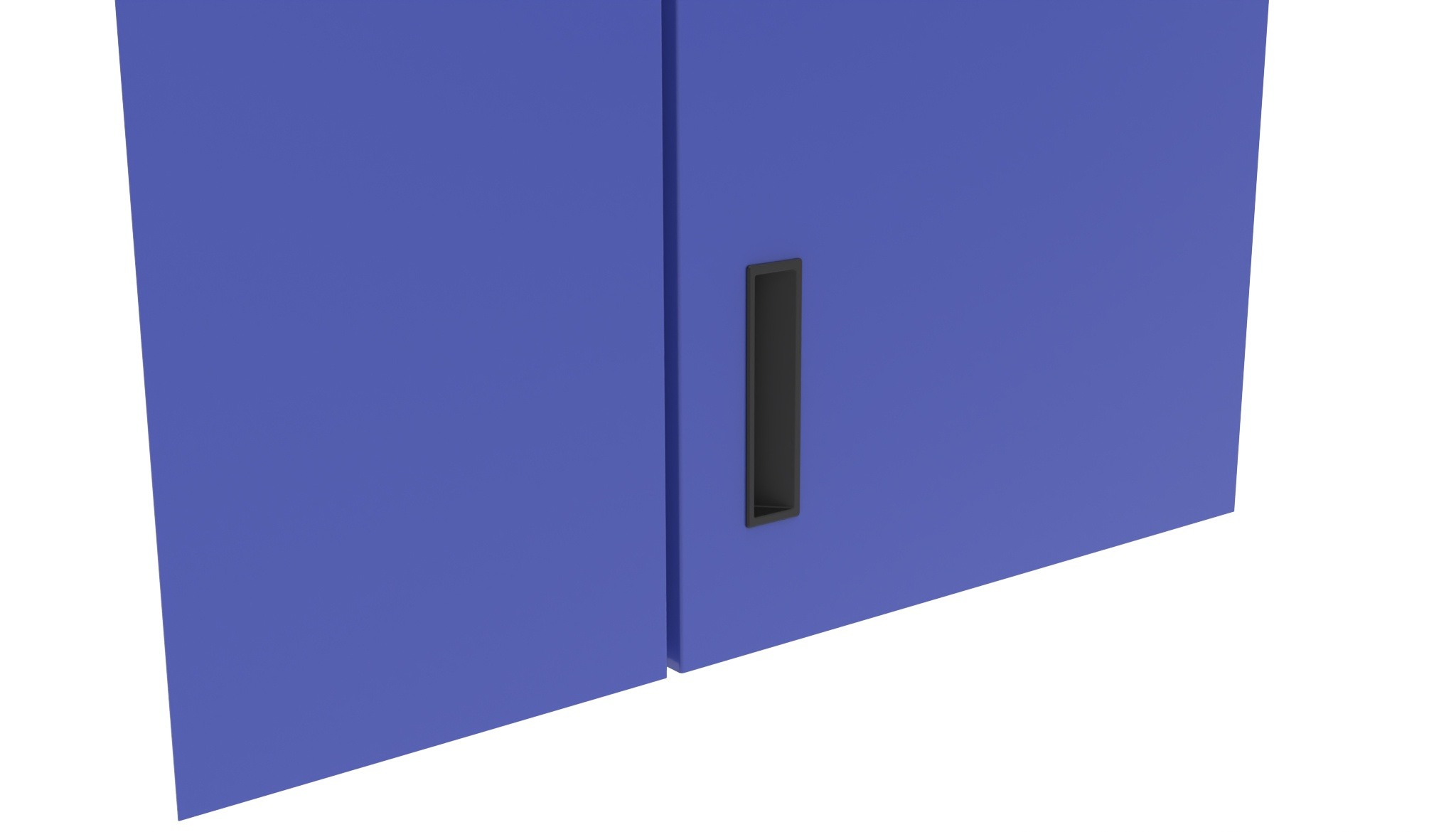

Concealed handle to mount on doors and flaps
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 22.4 g
- Category
- Pocket Pull Handles
Versions
Select a version — the description and files below follow your selection.
| Part # | Ts (mm) | Add 1 pc to enquiry |
|---|---|---|
| 0813471S01✓ Selected | 1.5 - 2.5 | |
| 0890008S01 | 1.0 - 1.4 | |
| 0890008S02 | 1.4 - 1.8 |
Description 0813471S01
- Color
Black
- Description
Concealed handle to mount on doors and flaps
- Material
Plastic ABS
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |

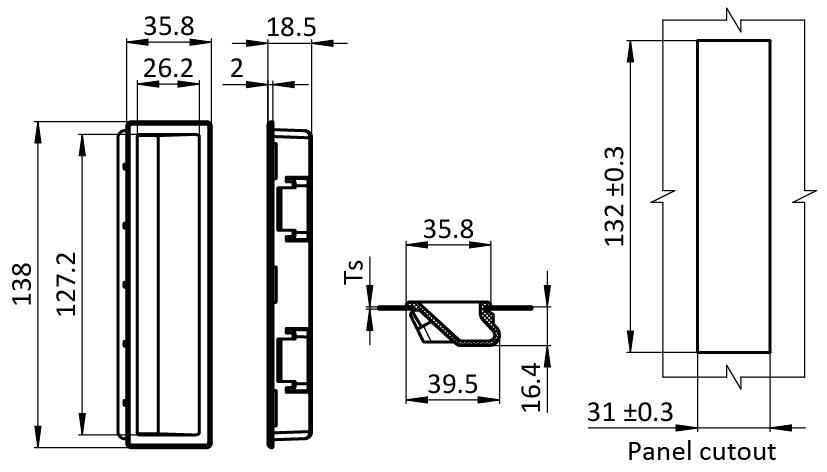

Drawing
From the FATH catalogue (IH-US-EN, p. 284)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
