FATH

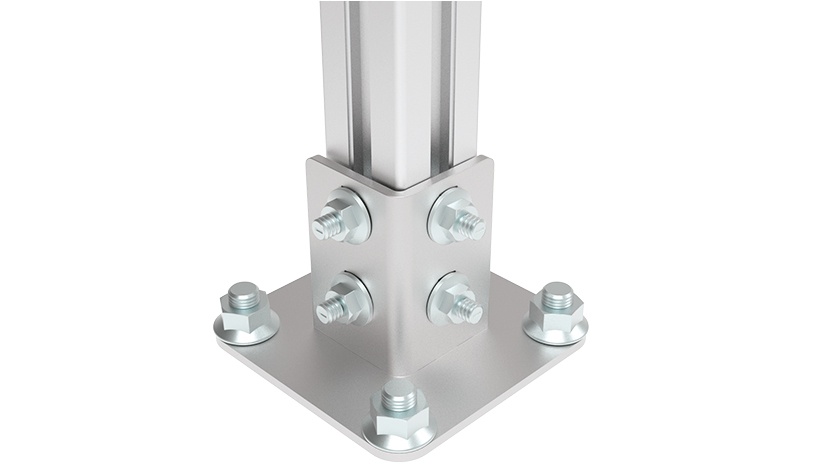

Foot Console ST 40 / 45 - 110
Part #: 098G40L110VS01 · 2 variants
To mount aluminum profiles as posts
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 543.5 g
- ECLASS
- 23360192
- Category
- Foot Consoles
Versions
Select a version — the description and files below follow your selection.
| Part # | A (mm) | Surface | L x B x H (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|
| 098G40L110VS01✓ Selected | 40 | Powder coated | 110 x 110 x 79 | |
| 098G45L110VS01 | 45 | Powder coated | 110 x 110 x 79 |
Description 098G40L110VS01
- Color
Alu color
- Description
To mount aluminum profiles as posts
- Material
Steel
- Surface
Powder coated
- Tip
Compatible Hammer Screw Slot 8 see 096HK0830M0820
Compatible Hammer Screw Slot 10 see 096HK1030M0820
Compatible Flange Nut M8 see 340ME154
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Pack Quantity | 1 piece |
| Model | Steel |

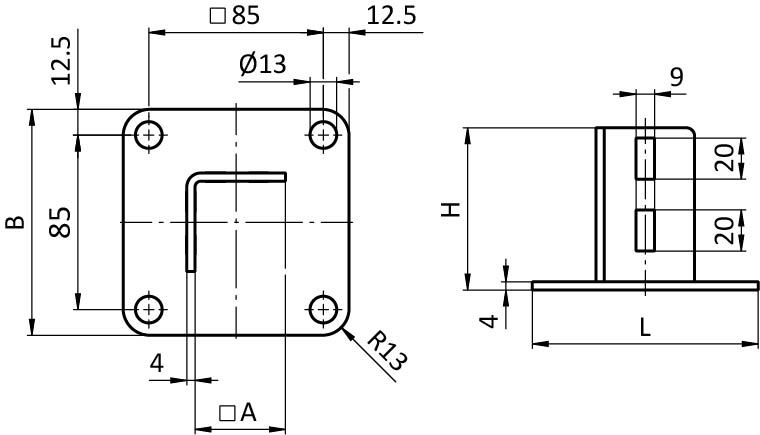

Drawing
From the FATH catalogue (EC-EN, p. 134)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
