FATH
Foot Console ST 80 / 90 - 155 / 165
Part #: 098G80L155V · 3 variants
To mount aluminum profiles as posts
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 2254 g
- Category
- Foot Consoles
Versions
Select a version — the description and files below follow your selection.

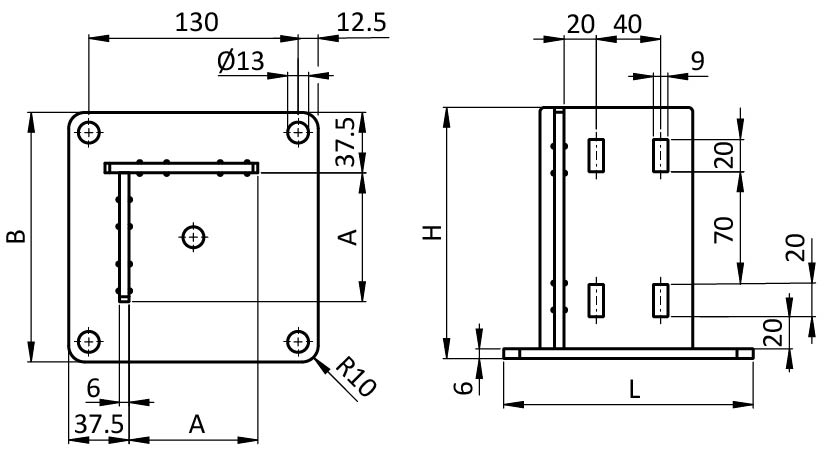

| Part # | A (mm) | Surface | L x B x H (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|
| 098G80L155V✓ Selected | 80 | Zinc plated | 155 x 155 x 156 | |
| 098G80L155VS01 | 80 | Powder coated | 155 x 155 x 156 | |
| 098G90L165V | 90 | Zinc plated | 165 x 165 x 156 |
Description 098G80L155V
- Color
- / alu color
- Description
To mount aluminum profiles as posts
- Material
Steel
- Surface
Zinc plated / powder coated
- Tip
Compatible Hammer Screw Slot 8 see 096HK0830M0820
Compatible Hammer Screw Slot 10 see 096HK1030M0820
Compatible Flange Nut M8 see 340ME154
Properties
| Profile Form | T-slot Profiles |
|---|---|
| Pack Quantity | 1 piece |
| Model | Steel |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
Matching products
Referenced in the description — nuts, plates, caps, assembly sets.
