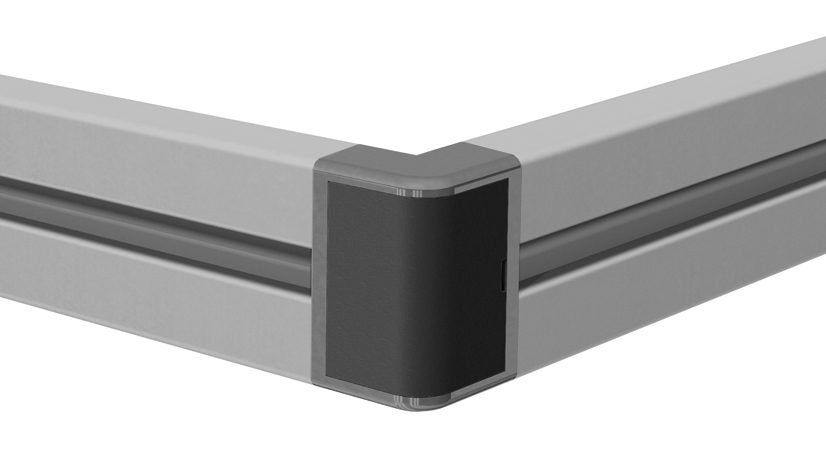

Frame Corner Connector 20 x 40 (Set)
Part #: 093WF20401N08S01
To connect two aluminum frame profiles 20 x 40 at right angles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 50.8 g
- ECLASS
- 23360290
- Category
- Frame Profile 20 x 40, Frame Corner Connectors
Description 093WF20401N08S01
- Color
Frame corner connector: Alu color
Screws: Steel
Cover cap: Gray ≈ RAL 7042
- Description
To connect two aluminum frame profiles 20 x 40 at right angles
- Material
Frame corner connector: Aluminum die-cast
Screws: Steel
Cover cap: Plastic PA, glass fiber reinforced
- Set
1 frame corner connector 20 x 40 - slot 8,
4 self-tapping screws - M4 x 20,
1 cover cap
- Surface
Frame corner connector: Powder coated
Screws: Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Slot Size | Slot 8 |
| Application Area | Industrial Work Stations |
| Pack Quantity | 10 pieces |
| Model | Aluminum die-cast |

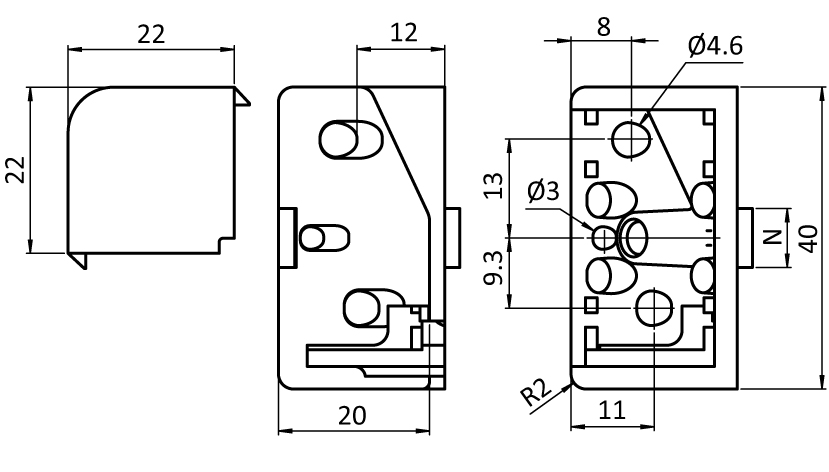

Drawing
From the FATH catalogue (EC-EN, p. 465)
