FATH
Hammer Head Screw Slot 10
Part #: 096HK1015M0620 · 31 variants
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connection
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 10.2 g
- ECLASS
- 23110119
- Category
- Slot 10, Hammer Head Screws
Versions
Select a version — the description and files below follow your selection.
| Part # | Material | H (mm) | Profile | B (mm) | h (mm) | Size M x L (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|
| 096HK1015M0620✓ Selected | Steel | 1.5 | - | 9.7 | 5.8 | *M6 x 20 | |
| 096HK1015M0625 | Steel | 1.5 | - | 9.7 | 5.8 | *M6 x 25 | |
| 096HK1015M0630 | Steel | 1.5 | - | 9.7 | 5.8 | *M6 x 30 | |
| 096HK1015M0640 | Steel | 1.5 | - | 9.7 | 5.8 | *M6 x 40 | |
| 096HK1015M0660 | Steel | 1.5 | - | 9.7 | 5.8 | *M6 x 60 | |
| 096HK1015M0820 | Steel | 1.5 | - | 7.9 | 5.8 | M8 x 20 | |
| 096HK1015M0825 | Steel | 1.5 | - | 7.9 | 5.8 | M8 x 25 | |
| 096HK1015M0830 | Steel | 1.5 | - | 9.7 | 5.8 | *M8 x 30 | |
| 096HK1015M0840 | Steel | 1.5 | - | 9.7 | 5.8 | *M8 x 40 | |
| 096HK1015M0860 | Steel | 1.5 | - | 9.7 | 5.8 | *M8 x 60 | |
| 096HK1030M0620 | Steel | 3.0 | B | 9.7 | 5.8 | *M6 x 20 | |
| 096HK1030M0620E | Stainless steel | 3.0 | B | 8.5 | 5.8 | M6 x 20 | |
| 096HK1030M0625 | Steel | 3.0 | B | 9.7 | 5.8 | *M6 x 25 | |
| 096HK1030M0625E | Stainless steel | 3.0 | B | 8.5 | 5.8 | M6 x 25 | |
| 096HK1030M0630 | Steel | 3.0 | B | 9.7 | 5.8 | *M6 x 30 | |
| 096HK1030M0630E | Stainless steel | 3.0 | B | 8.5 | 5.8 | M6 x 30 | |
| 096HK1030M0640 | Steel | 3.0 | B | 9.7 | 5.8 | *M6 x 40 | |
| 096HK1030M0660 | Steel | 3.0 | B | 9.7 | 5.8 | *M6 x 60 | |
| 096HK1030M0820 | Steel | 3.0 | B | 8.5 | 5.8 | M8 x 20 | |
| 096HK1030M0820E | Stainless steel | 3.0 | B | 8.5 | 5.8 | *M8 x 20 | |
| 096HK1030M0825 | Steel | 3.0 | B | 8.5 | 5.8 | M8 x 25 | |
| 096HK1030M0825E | Stainless steel | 3.0 | B | 8.5 | 5.8 | *M8 x 25 | |
| 096HK1030M0830 | Steel | 3.0 | B | 8.5 | 5.8 | M8 x 30 | |
| 096HK1030M0830E | Stainless steel | 3.0 | B | 8.5 | 5.8 | M8 x 30 | |
| 096HK1030M0840 | Steel | 3.0 | B | 8.5 | 5.8 | M8 x 40 | |
| 096HK1030M0840E | Stainless steel | 3.0 | B | 8.5 | 5.8 | M8 x 40 | |
| 096HK1030M0860 | Steel | 3.0 | B | 8.5 | 5.8 | M8 x 60 | |
| 096HK1030M0860E | Stainless steel | 3.0 | B | 8.5 | 5.8 | M8 x 60 | |
| 096HK1045M0820 | Steel | 4.5 | B | 8.5 | 5.8 | M8 x 20 | |
| 096HK1045M0825 | Steel | 4.5 | B | 8.5 | 5.8 | M8 x 25 | |
| 096HK1045M0830 | Steel | 4.5 | B | 8.5 | 5.8 | M8 x 30 |
Description 096HK1015M0620
- Description
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connection
- Material
Steel / stainless steel SS316
- Specials
Turning help: Polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request
- Surface
Zinc plated / plain
- Tip
Compatible Flange Nut see 340ME154
*Made of hammer nut with glued threaded rod
Properties
| Profile Type | Profile Type B |
|---|---|
| Pack Quantity | 100 pieces |
| Model | Slot 10, steel / stainless steel |

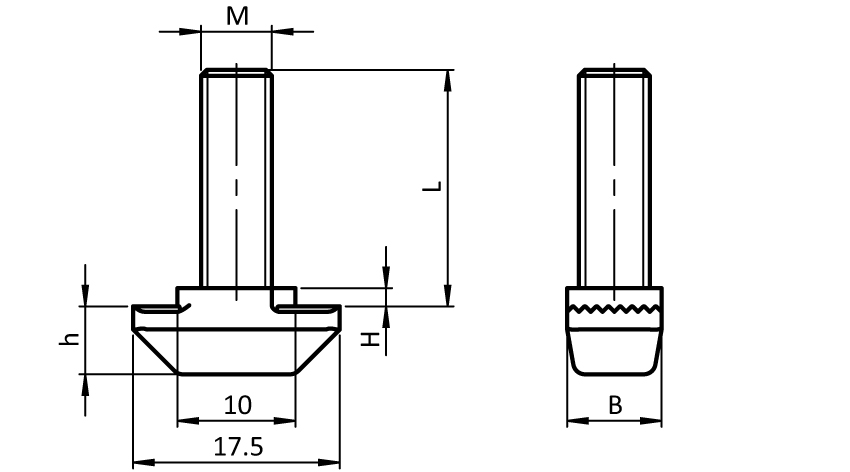

Drawing
From the FATH catalogue (EC-EN, p. 340)
