FATH
Hammer Head Screw Slot 8
Part #: 096HK0815M0616 · 22 variants
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connection
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 5.3 g
- ECLASS
- 23110119
- Category
- Slot 8, Hammer Head Screws
Versions
Select a version — the description and files below follow your selection.
| Part # | Material | H (mm) | Profile | h (mm) | Size M x L (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 096HK0815M0616✓ Selected | Steel | 1.5 | B | 4.7 | M6 x 16 | |
| 096HK0815M0620 | Steel | 1.5 | B | 4.7 | M6 x 20 | |
| 096HK0815M0620E | Stainless steel | 1.5 | B | 4.7 | *M6 x 20 | |
| 096HK0815M0625 | Steel | 1.5 | B | 4.7 | M6 x 25 | |
| 096HK0815M0625E | Stainless steel | 1.5 | B | 4.7 | *M6 x 25 | |
| 096HK0815M0630 | Steel | 1.5 | B | 4.7 | *M6 x 30 | |
| 096HK0815M0630E | Stainless steel | 1.5 | B | 4.7 | *M6 x 30 | |
| 096HK0815M0640 | Steel | 1.5 | B | 4.7 | *M6 x 40 | |
| 096HK0815M0640E | Stainless steel | 1.5 | B | 4.7 | *M6 x 40 | |
| 096HK0815M0660 | Steel | 1.5 | B | 4.7 | M6 x 60 | |
| 096HK0815M0820 | Steel | 1.5 | B | 4.7 | M8 x 20 | |
| 096HK0815M0825 | Steel | 1.5 | B | 4.7 | M8 x 25 | |
| 096HK0815M0830 | Steel | 1.5 | B | 4.7 | M8 x 30 | |
| 096HK0830M0620 | Steel | 3.0 | I | 4.7 | M6 x 20 | |
| 096HK0830M0625 | Steel | 3.0 | I | 4.7 | M6 x 25 | |
| 096HK0830M0630 | Steel | 3.0 | I | 4.7 | *M6 x 30 | |
| 096HK0830M0640 | Steel | 3.0 | I | 4.7 | *M6 x 40 | |
| 096HK0830M0660 | Steel | 3.0 | I | 4.7 | *M6 x 60 | |
| 096HK0830M0820 | Steel | 3.0 | I | 4.7 | M8 x 20 | |
| 096HK0830M0825 | Steel | 3.0 | I | 4.7 | M8 x 25 | |
| 096HK0830M0830 | Steel | 3.0 | I | 4.7 | M8 x 30 | |
| 096HK0830M0840 | Steel | 3.0 | I | 4.7 | M8 x 40 |
Description 096HK0815M0616
- Description
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, electrically ESD conductive connection
- Material
Steel / stainless steel SS304
- Specials
Turning help: Polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request
- Surface
Zinc plated / plain
- Tip
Compatible Flange Nut see 340ME154
*Made of hammer nut with glued threaded rod
Properties
| Profile Type | Profile Type B |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 100 pieces |
| Model | Slot 8, steel / stainless steel |

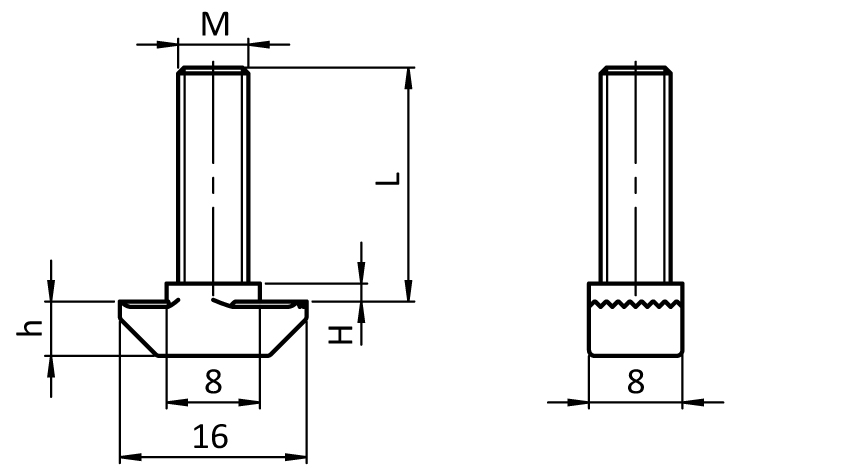

Drawing
From the FATH catalogue (EC-EN, p. 339)
