FATH

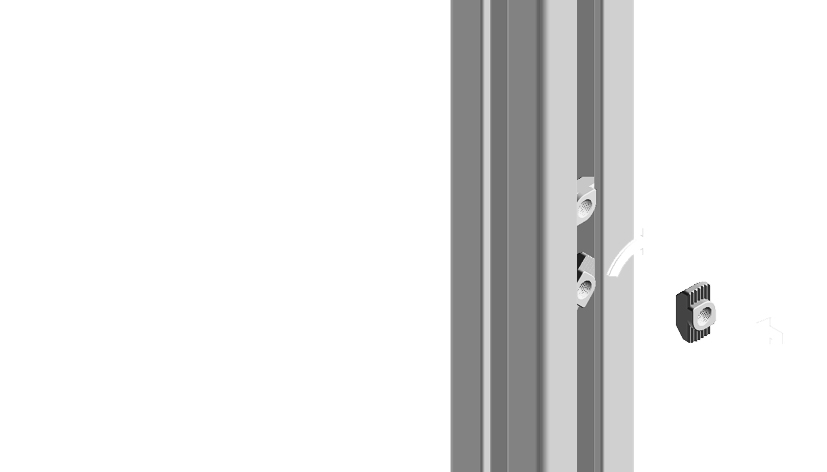

Hammer Nut Slot 6
Part #: 096H06410 · 2 variants
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 100 pieces
- Weight
- 1 g
- ECLASS
- 23110716
- Category
- Slot 6, Hammer Nuts
Versions
Select a version — the description and files below follow your selection.
| Part # | Material | H (mm) | Profile | M | Add 1 pc to enquiry |
|---|---|---|---|---|---|
| 096H06410✓ Selected | Steel | 1.0 | B | M4 | |
| 096H06410E | Stainless steel | 1.0 | B | M4 |
Description 096H06410
- Description
To fasten components to profiles, breakes the anodized coat of the profile - thus ensuring a safe, ESD electrostatical discharging connection
- Material
Steel / stainless steel SS304
- Specials
Turning help: Dented thread, thread pitch error or polyamide thread locking dot on request
Surface: With dry film lubrication, zinc-nickel plated or with zinc lamellar plating on request
- Surface
Zinc plated / plain
Properties
| Profile Type | Profile Type B |
|---|---|
| Product Feature | ESD |
| Profile Form | T-slot Profiles |
| Pack Quantity | 100 pieces |
| Model | Slot 6, steel / stainless steel |

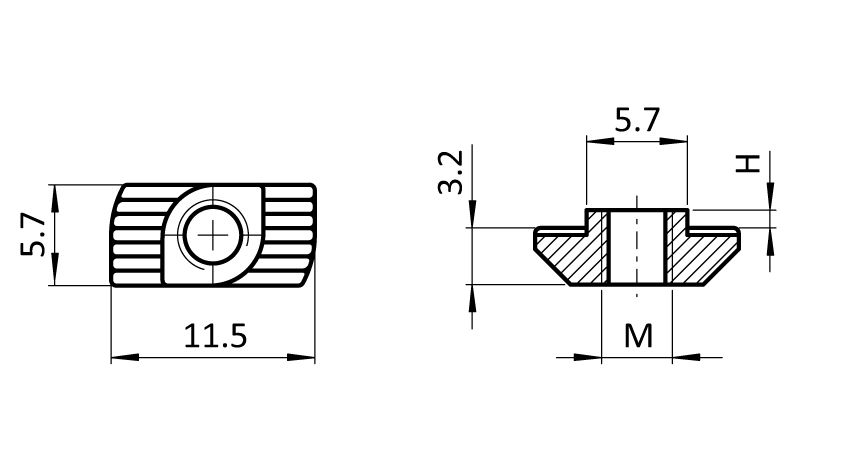

Drawing
From the FATH catalogue (EC-EN, p. 332)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
