FATH

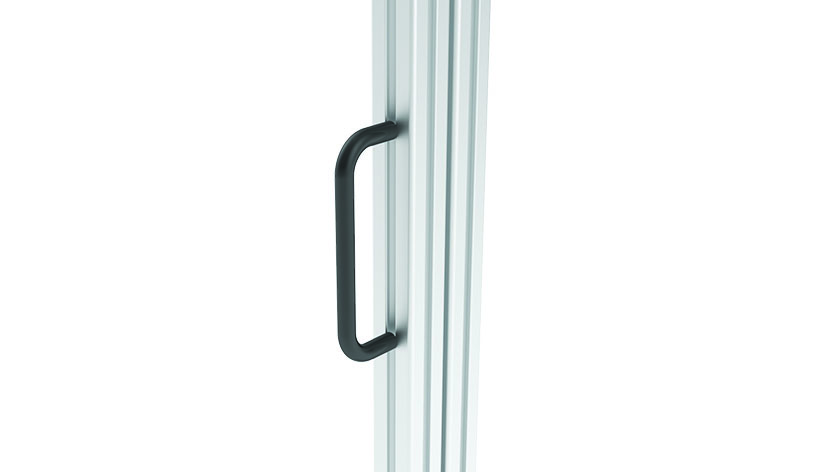

Handle AL 120
Part #: 092326 · 2 variants
To mount on doors, flaps and aluminum profiles
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 36 g
- ECLASS
- 23010103
- Category
- Handles
Versions
Select a version — the description and files below follow your selection.
Description 092326
- Color
Black, alu colour
- Description
To mount on doors, flaps and aluminum profiles
- Fastening
From the back, using M5 screws;
From the front with optional fastening set
- Material
Aluminum
- Surface
Powder coated / anodized
- Tip
Compatible Fastening Set see 092330
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Aluminum, 120 mm |

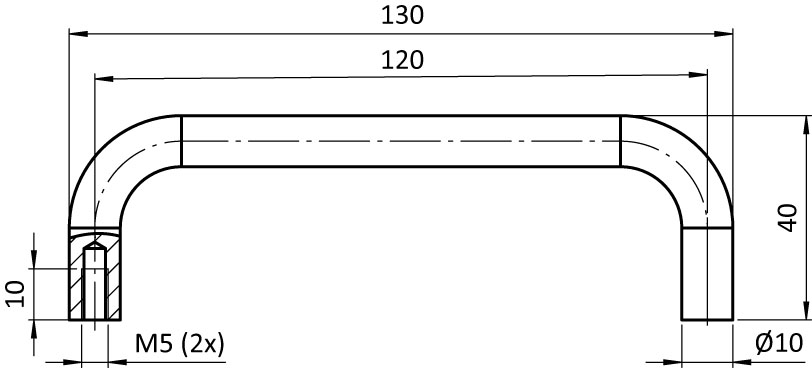

Drawing
From the FATH catalogue (EC-EN, p. 654)
