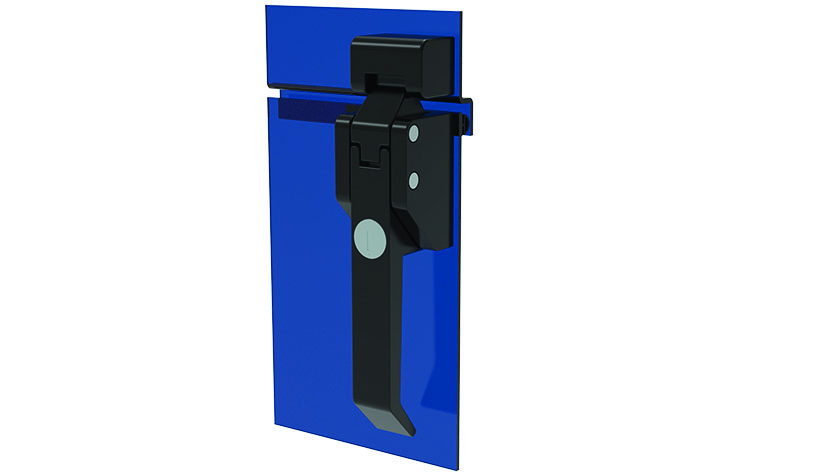

Handle Over-Center Draw Latch
Part #: 0810430 · 12 variants
For easy, secure and compressive latching and locking of doors and flaps; Wide range of inserts, cams and accessories
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 415 g
- ECLASS
- 23199090
- Category
- Over-Center Draw Latches
Versions
Select a version — the description and files below follow your selection.
| Part # | Material | Surface | Color | Insert type | Hole | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|
| 0810430✓ Selected | Zinc die-cast | Powder coated | Black | Non-locking | M 5 x 0.8 | |
| 0810431 | Stainless steel SS316 | - | - | Non-locking | M 5 x 0.8 | |
| 0810432 | Zinc die-cast | Chrome plated | Chrome | Non-locking | M 5 x 0.8 | |
| 0810433 | Zinc die-cast | Powder coated | Black | Key locking (Keyed FH751) | M 5 x 0.8 | |
| 0810434 | Stainless steel SS316 | - | - | Key locking (Keyed FH751) | M 5 x 0.8 | |
| 0810435 | Zinc die-cast | Chrome plated | Chrome | Key locking (Keyed FH751) | M 5 x 0.8 | |
| 0813052 | Zinc die-cast | Powder coated | Black | Key locking (Keyed FH751) | 10 - 32 UNC | |
| 0813053 | Zinc die-cast | Chrome plated | Chrome | Key locking (Keyed FH751) | 10 - 32 UNC | |
| 0813054 | Stainless steel SS316 | - | - | Key locking (Keyed FH751) | 10 - 32 UNC | |
| 0813055 | Zinc die-cast | Powder coated | Black | Non-locking | 10 - 32 UNC | |
| 0813056 | Zinc die-cast | Chrome plated | Chrome | Non-locking | 10 - 32 UNC | |
| 0813057 | Stainless steel SS316 | - | - | Non-locking | 10 - 32 UNC |
Description 0810430
- Color
Handle: Black / chrome
Latch: Black / chrome
Housing: Black / chrome
Catch: Black / chrome
- Description
For easy, secure and compressive latching and locking of doors and flaps;
Wide range of inserts, cams and accessories
- Material
Handle: Zinc die-cast / stainless steel SS316
Latch: Zinc die-cast / stainless steel SS316
Housing: Zinc die-cast / stainless steel SS316
Return spring: Spring steel SS9260
Catch: Zinc die-cast / stainless steel SS316
Pins: Stainless steel
Connector: Zinc die-cast / stainless steel SS316
- Surface
Handle: Powder coated / chrome plated / plain
Latch: Powder coated / chrome plated / plain
Housing: Powder coated / chrome plated / plain
Catch: Powder coated / chrome plated / plain
Connector: Zinc plated / plain
Properties
| Application Area | Machinery & Plant Engineering |
|---|---|
| Pack Quantity | 10 pieces |

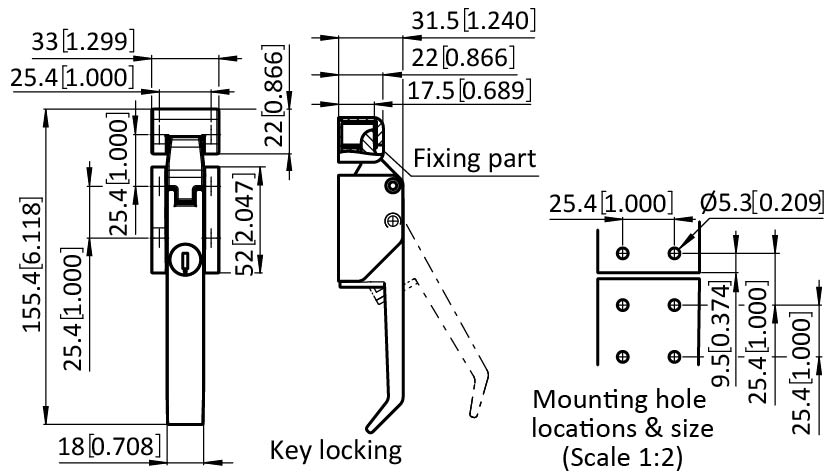

Drawing
From the FATH catalogue (IH-US-EN, p. 78)
