FATH

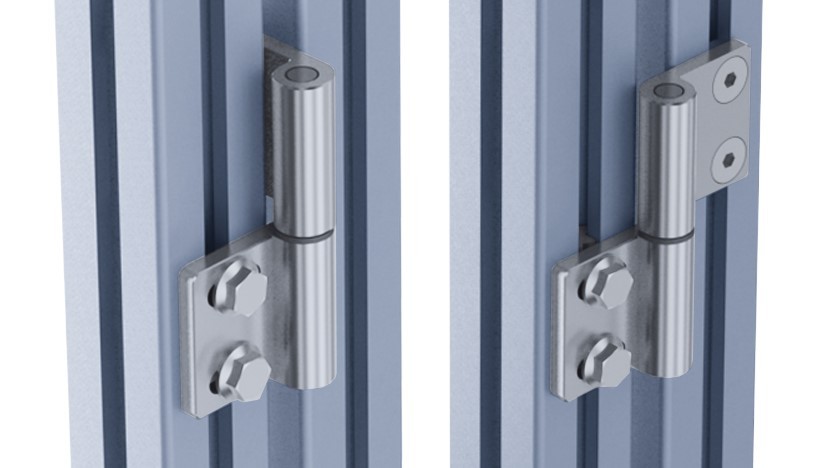

Heavy Aluminum Hinge (Set)
Part #: 095071
Loadable detachable hinge; adjustable for the compensation of distance tolerances
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 2 pieces
- Weight
- 262.7 g
- ECLASS
- 23219090
- Category
- Heavy Aluminum Hinges
Description 095071
- Description
Loadable detachable hinge; adjustable for the compensation of distance tolerances

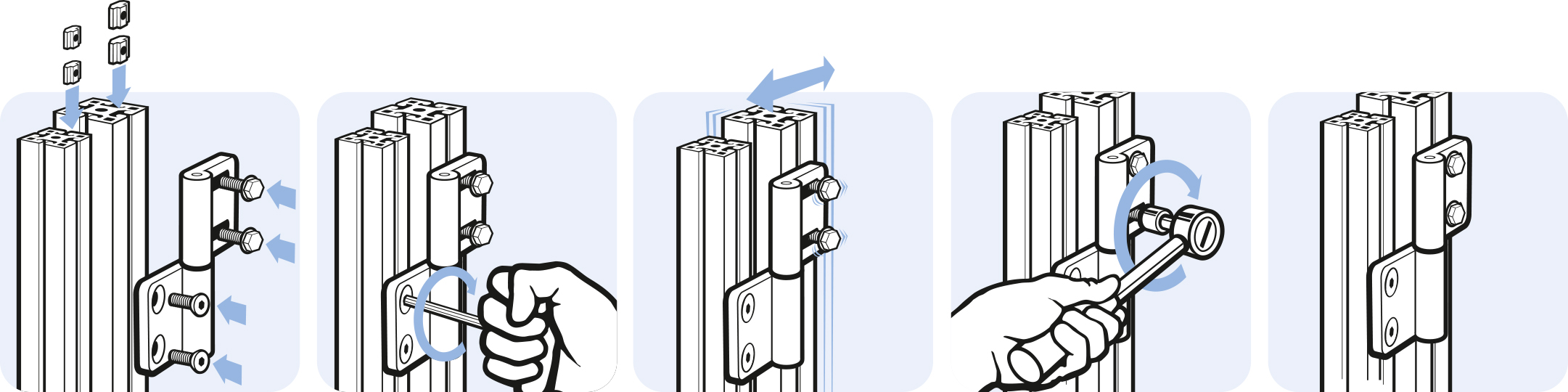

- Fastening
From the front, using two hexagon and two countersunk screws M8
- Material
Wings: Aluminum die-cast
Pin: Stainless steel
- Set
1 heavy aluminum hinge,
2 T-slot nuts, slot 10 - M8 – self-aligning,
2 hexagon screws DIN 6921 - M8 x 16,
2 countersunk screws DIN EN ISO 10642 (DIN 7991) - M8 x 12,
2 T-slot nuts, slot 8 - M8 – self-aligning
- Surface
Anodized
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 2 pieces |
| Model | Detachable, adjustable |

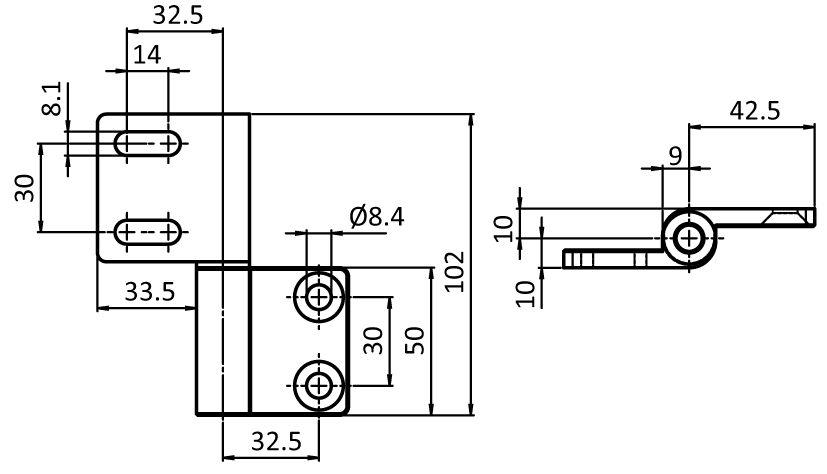

Drawing
From the FATH catalogue (EC-EN, p. 225)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
