FATH
Heavy-duty Hinge
Part #: 095050 · 3 variants
For panels and aluminum profiles, with bearing system for bolt
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 137.3 g
- ECLASS
- 23219090
- Category
- Heavy-duty Hinges, Aluminum Die-cast
Versions
Select a version — the description and files below follow your selection.
Description 095050
- Color
Wing: Alu color
- Description
For panels and aluminum profiles, with bearing system for bolt
- Fastening
From the front, using socket head screws DIN 7984 - M6 or pan-head screws DIN EN ISO 7380 (34805) - M6
- Material
Wing: Aluminum die-cast
Bolt: Stainless steel
Bearings: PTFE
- Surface
Wing: Laquered
Bolt: Plain
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Non-detachable |

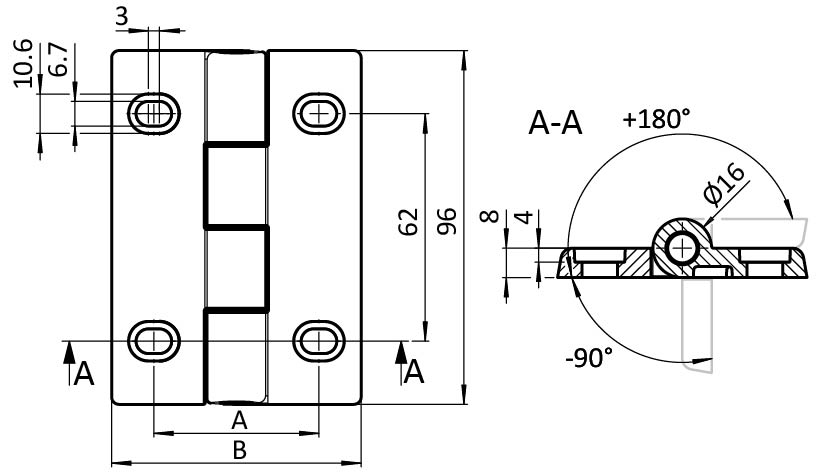

Drawing
From the FATH catalogue (EC-EN, p. 224)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
