Heavy-duty Plastic Hinge 30, Black
Part #: 095KS3030F00 · 13 variants
To hinge panels or aluminum profiles; each side has two holes for centering bolts
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 36 g
- ECLASS
- 23219090
- Category
- Heavy-duty Plastic Hinges
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Slot N (mm) | B1 (mm) | B2 (mm) | Combination | FAmax (N) | A1 (mm) | A2 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 095KS3030F00✓ Selected | - | - | 30.0 | 30.0 | 30 / 30 | 150.0 | 17.5 | 17.5 | |
| 095KS3030F08 | - | 8 | 30.0 | 30.0 | 30 / 30 | 150.0 | 17.5 | 17.5 | |
| 095KS3030F08S02 | With assembly set 1 | 8 | 30.0 | 30.0 | 30 / 30 | 150.0 | 17.5 | 17.5 | |
| 095KS3040F00 | - | - | 30.0 | 39.0 | 30 / 40 | 150.0 | 17.5 | 22.5 | |
| 095KS3040F08 | - | 8 | 30.0 | 39.0 | 30 / 40 | 150.0 | 17.5 | 22.5 | |
| 095KS3040F0810 | - | 8 / 10 | 30.0 | 39.0 | 30 / 40 | 150.0 | 17.5 | 22.5 | |
| 095KS3040F0810S01 | With assembly set 2 | 8 / 10 | 30.0 | 39.0 | 30 / 40 | 150.0 | 17.5 | 22.5 | |
| 095KS3045F00 | - | - | 30.0 | 45.0 | 30 / 45 | 150.0 | 17.5 | 25.0 | |
| 095KS3045F0810 | - | 8 / 10 | 30.0 | 45.0 | 30 / 45 | 150.0 | 17.5 | 25.0 | |
| 095KS3045F0810S02 | With assembly set 2 | 8 / 10 | 30.0 | 45.0 | 30 / 45 | 150.0 | 17.5 | 25.0 | |
| 095KS3060F00 | - | - | 30.0 | 60.0 | 30 / 60 | 130.0 | 17.5 | 32.5 | |
| 095KS3060F0810 | - | 8 / 10 | 30.0 | 60.0 | 30 / 60 | 130.0 | 17.5 | 32.5 | |
| 095KS3060F0810S01 | With assembly set 2 | 8 / 10 | 30.0 | 60.0 | 30 / 60 | 130.0 | 17.5 | 32.5 |
Description 095KS3030F00
- Assembly Set 1
2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 16,
2 hammer nuts slot 8 - M6
- Assembly Set 2
1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 16,
1 hammer nut slot 8 - M6,
1 screw DIN EN ISO 10642 (DIN 7991) - M6 x 18,
1 hammer nut slot 10 - M6
- Color
Wings: Black
- Description
To hinge panels or aluminum profiles; each side has two holes for centering bolts

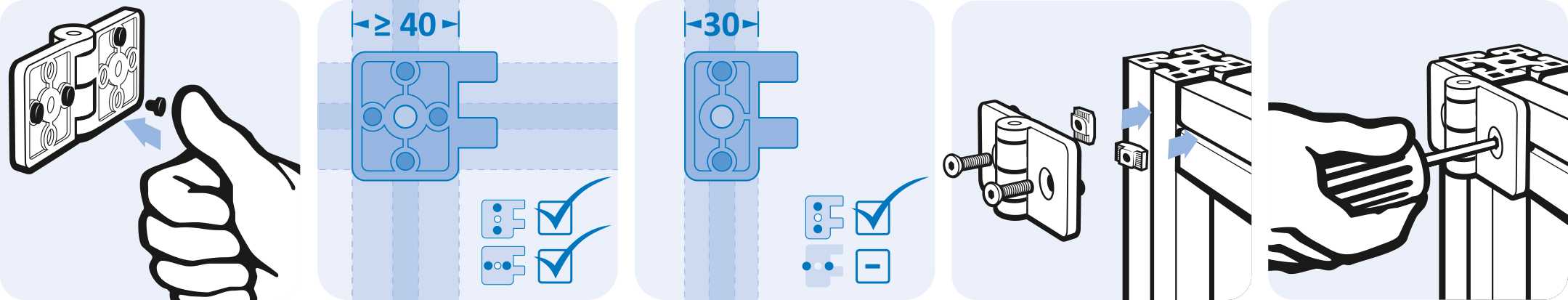

- Fastening
From the front, using M6 countersunk screws
- Material
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Assembly set: Steel
- Specials
ESD electrostatical discharging, other sizes, other colors on request
- Surface
Bolt: Plain
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Non-detachable |
Drawing
From the FATH catalogue (EC-EN, p. 202)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
