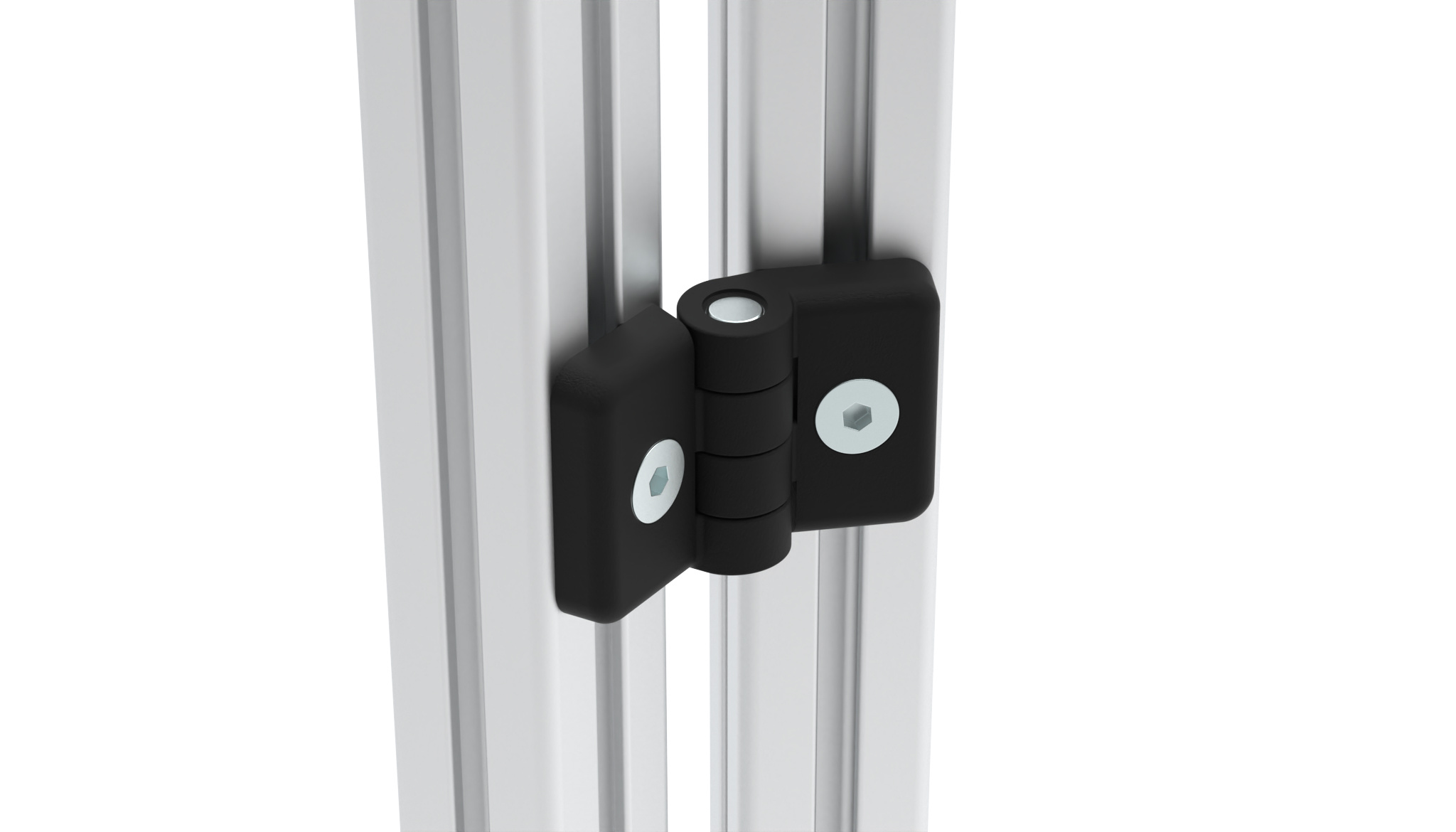

Heavy-duty Plastic Hinge 40, Black
Part #: 095KS4040F00 · 8 variants
To hinge panels or aluminum profiles; each side has two holes for centering bolts
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 40 g
- ECLASS
- 23219090
- Category
- Heavy-duty Plastic Hinges
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Slot N (mm) | B1 (mm) | B2 (mm) | Combination | FAmax (N) | A1 (mm) | A2 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|
| 095KS4040F00✓ Selected | - | - | 39.0 | 39.0 | 40 / 40 | 150.0 | 22.5 | 22.5 | |
| 095KS4040F08 | - | 8 | 39.0 | 39.0 | 40 / 40 | 150.0 | 22.5 | 22.5 | |
| 095KS4040F0810 | - | 8 / 10 | 39.0 | 39.0 | 40 / 40 | 150.0 | 22.5 | 22.5 | |
| 095KS4040F10 | - | 10 | 39.0 | 39.0 | 40 / 40 | 150.0 | 22.5 | 22.5 | |
| 095KS4040F10S01 | incl. assembly set | 10 | 39.0 | 39.0 | 40 / 40 | 150.0 | 22.5 | 22.5 | |
| 095KS4045F00 | - | - | 39.0 | 45.0 | 40 / 45 | 150.0 | 22.5 | 25.0 | |
| 095KS4045F0810 | - | 8 / 10 | 39.0 | 45.0 | 40 / 45 | 150.0 | 22.5 | 25.0 | |
| 095KS4060F10 | - | 10 | 39.0 | 60.0 | 40 / 60 | 130.0 | 22.5 | 32.5 |
Description 095KS4040F00
- Assembly Set
2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18,
2 hammer nuts slot 10 - M6
- Color
Wings: Black
- Description
To hinge panels or aluminum profiles; each side has two holes for centering bolts

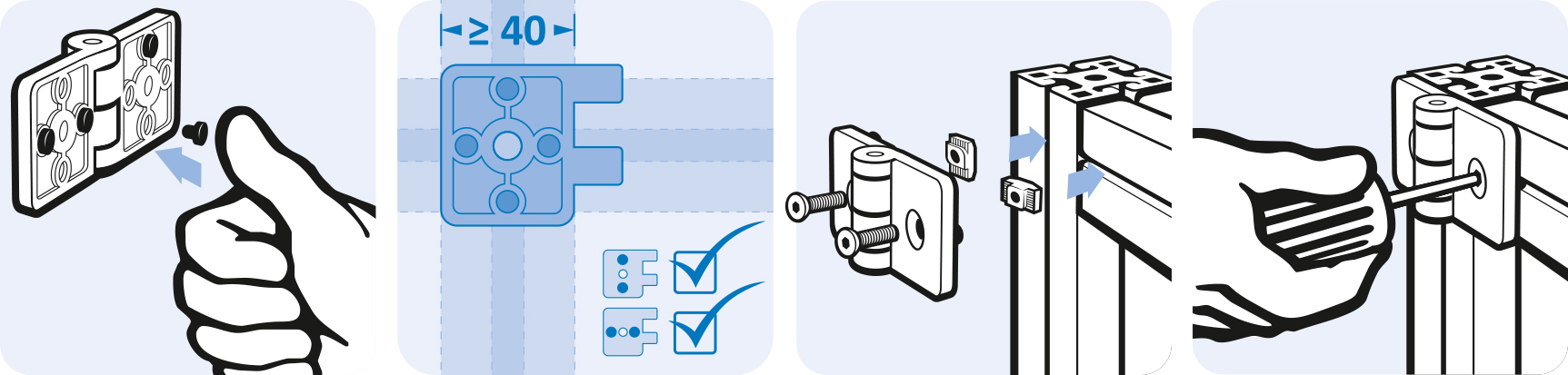

- Fastening
From the front, using M6 countersunk screws
- Material
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Assembly set: Steel
- Specials
ESD electrostatical discharging, other sizes, other colors on request
- Surface
Bolt: Plain
Assembly set: Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Non-detachable |

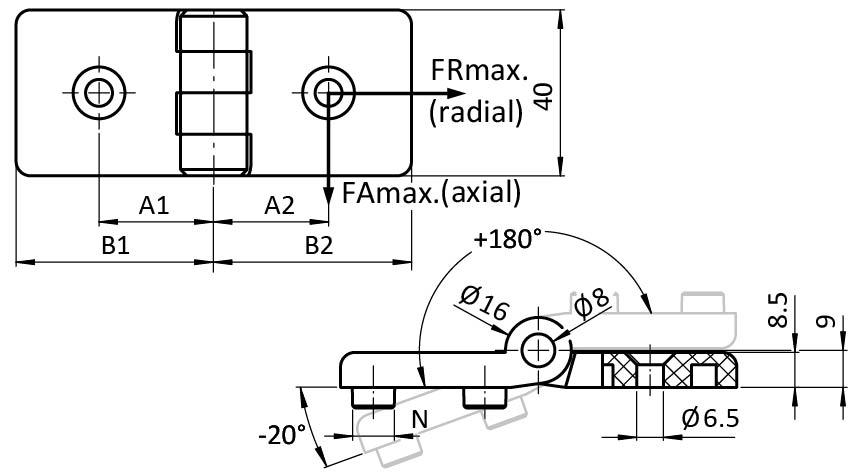

Drawing
From the FATH catalogue (EC-EN, p. 203)
