FATH
Heavy-duty Plastic Hinge 60
Part #: 095KS6060F10
To hinge panels or aluminum profiles; each side has two holes for centering bolts
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 53 g
- ECLASS
- 23219090
- Category
- Heavy-duty Plastic Hinges
Description 095KS6060F10

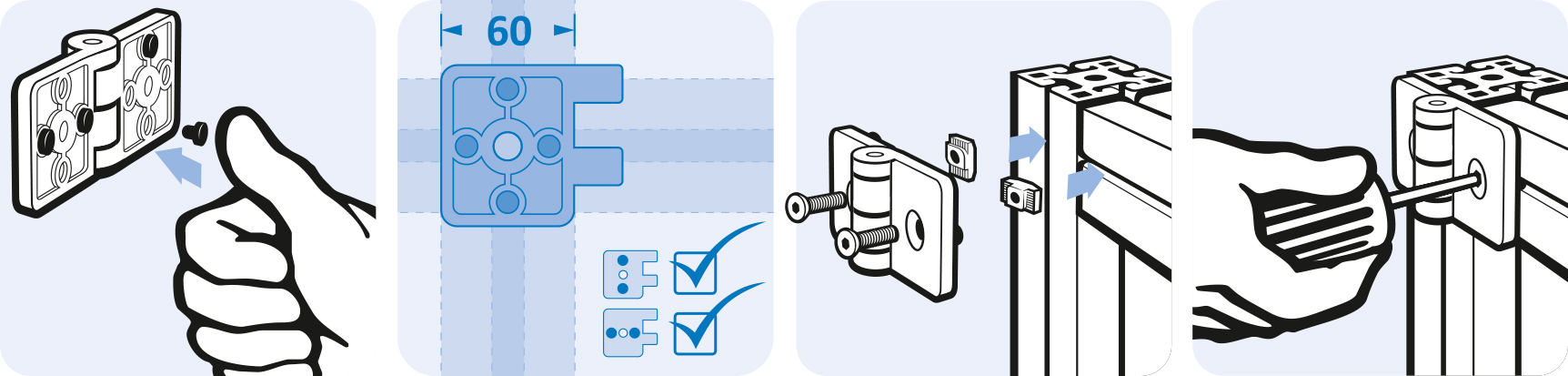

- Assembly Set
2 screws DIN EN ISO 10642 (DIN 7991) - M6 x 18,
2 hammer nuts slot 10 - M6
- Color
Wings: Black
- Description
To hinge panels or aluminum profiles; each side has two holes for centering bolts
- Fastening
From the front, using M6 countersunk screws
- Material
Wings: Plastic PA, glass fiber reinforced
Bolt: Stainless steel
Assembly set: Steel
- Specials
ESD electrostatical discharging, other sizes, other colors on request
- Surface
Bolt: Plain
Assembly set: Zinc plated
Properties
| Slot Size | Slot 10 |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 10 pieces |
| Model | Non-detachable |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
