FATH
Holding Bracket AL D28
Part #: 062AHD28M · 4 variants

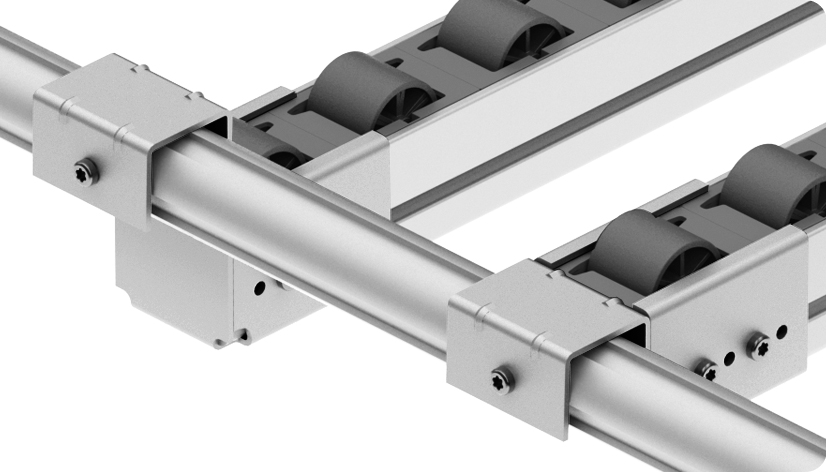

To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 176 g
- ECLASS
- 36120492
- Category
- Brackets D28 for Roller Tracks
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Fig. | Add 1 pc to enquiry |
|---|---|---|---|
| 062AHD28M✓ Selected | Without end stop | ① | |
| 062AHD28MS01 | Without end stop, with assembly set | ① | |
| 062AHSD28M | With end stop | ② | |
| 062AHSD28MS01 | With end stop, with assembly set | ② |
Description 062AHD28M
- Assembly Set
5 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
- Description
To mount AL roller track profiles to tubular frame profiles with Ø 28 mm outer diameter, preventing inserts from slipping out
- Material
Steel
- Specials
Other surfaces, other colors on request
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B |
|---|---|
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 10 pieces |
| Model | For roller tracks AL |

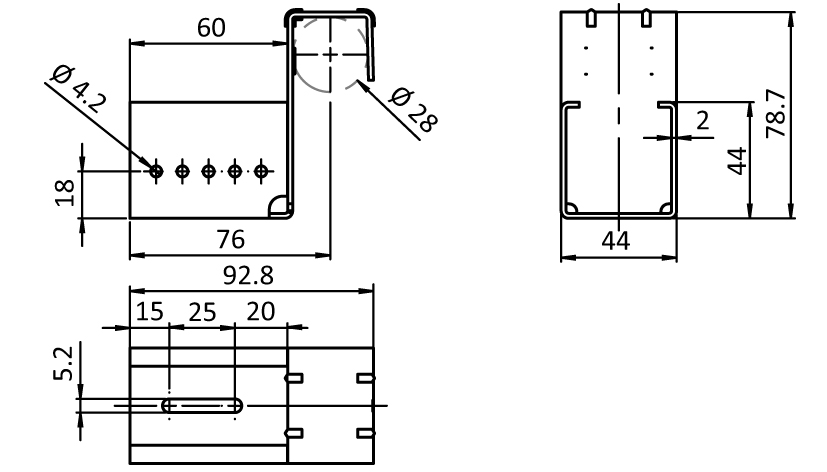

Drawing
From the FATH catalogue (EC-EN, p. 1068)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
