Holding Bracket XST 40
Part #: 062XHD40M · 2 variants
To mount roller tracks XST and guiding rails XST central to profiles 40 mm, preventing inserts from slipping out
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 176 g
- ECLASS
- 36120492
- Category
- Brackets for Roller Tracks XST
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | Fig. | Add 1 pc to enquiry |
|---|---|---|---|
| 062XHD40M✓ Selected | Without end stop | ① | |
| 062XHSD40M | With end stop | ② |
Description 062XHD40M
- Description
To mount roller tracks XST and guiding rails XST central to profiles 40 mm, preventing inserts from slipping out
- Material
Steel
- Surface
Zinc plated
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 10 pieces |
| Model | For roller tracks XST |

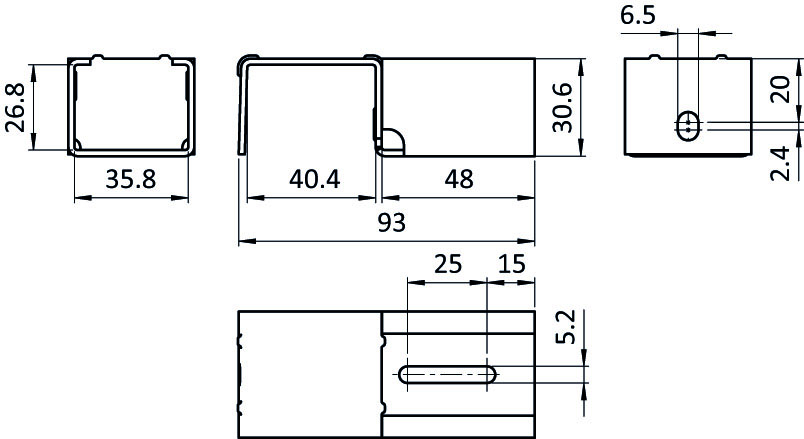

Drawing
From the FATH catalogue (EC-EN, p. 846)
