Holding Bracket XST D30
Part #: 062MHD30MS01 · 3 variants

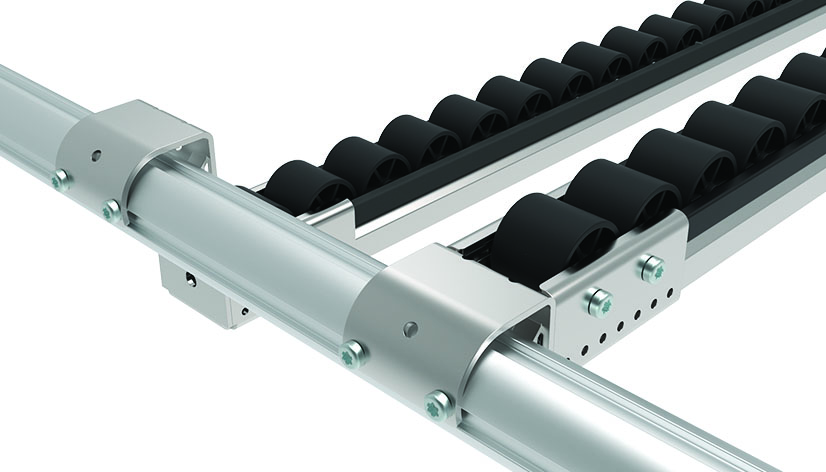

To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 161 g
- ECLASS
- 36120492
- Category
- Brackets D30 for Roller Tracks
Versions
Select a version — the description and files below follow your selection.
| Part # | Version | H (mm) | Fig. | Add 1 pc to enquiry |
|---|---|---|---|---|
| 062MHD30MS01✓ Selected | Without end stop | 30.8 | ① | |
| 062MHSD30MS01 | With end stop | 80.0 | ② | |
| 062MHSD30MS03 | With end stop | 65.5 | ② |
Description 062MHD30MS01
- Assembly Set
6 self-drilling screws DIN EN ISO 15481 (DIN 7504) - 3.9 x 16
- Description
To mount roller tracks XST and guiding rails XST central to tubular frame profiles with Ø 30 mm outer diameter, preventing inserts from slipping out
- Material
Steel
- Specials
Other surfaces, other colors on request
- Surface
Zinc plated
Properties
| Profile Type | Profile Type I |
|---|---|
| Modular Dimension | Modular Dimension D30 |
| Profile Form | Round Tubular Profiles |
| Application Area | Industrial Work Stations, Intralogistics |
| Pack Quantity | 10 pieces |
| Model | For roller tracks XST |

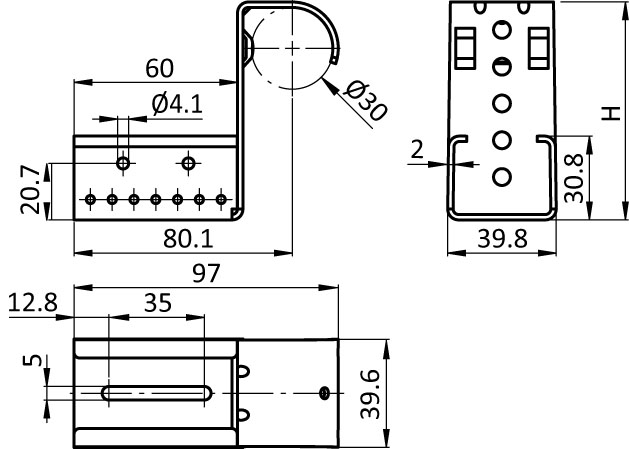

Drawing
From the FATH catalogue (EC-EN, p. 1119)
