FATH

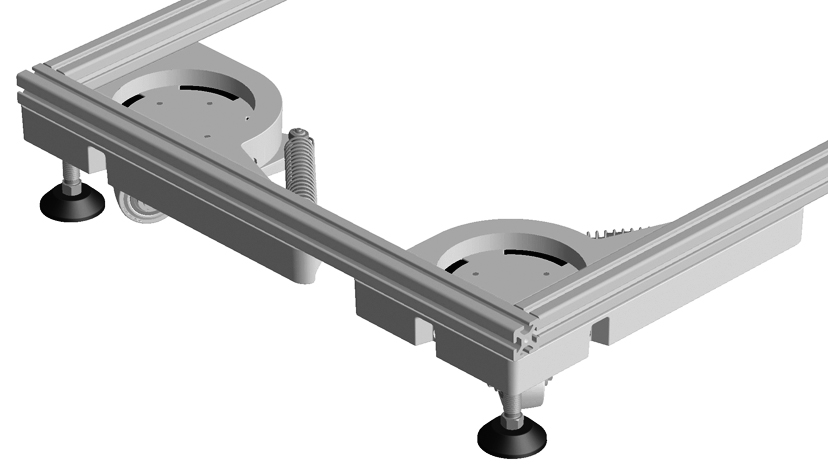

Hydraulic Lift Caster (Set)
Part #: 06001HR2000

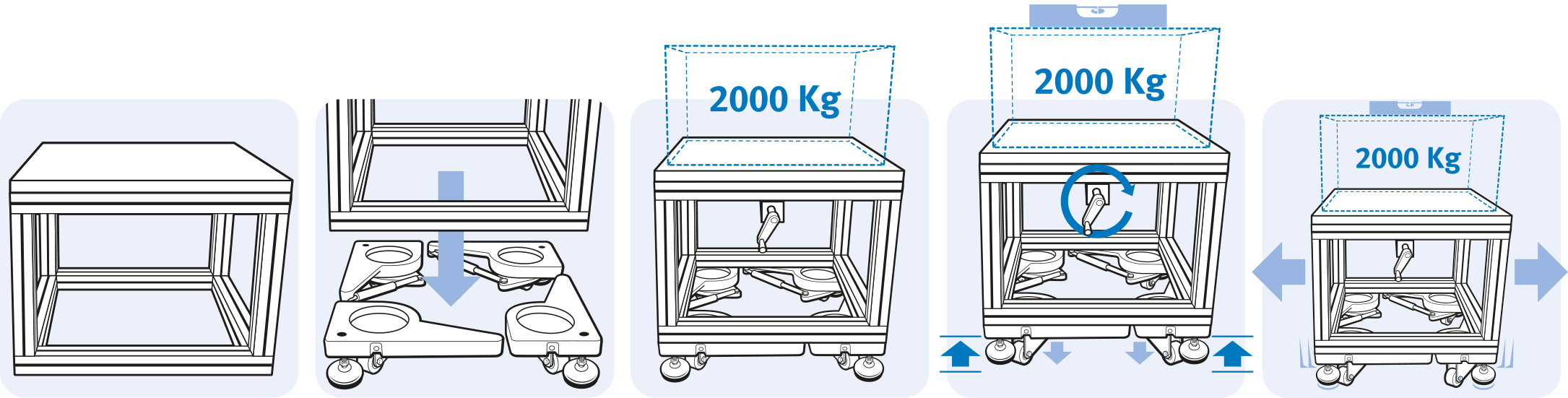

Lift castor system for a fast and flexible placing of plants or assembling tables; gear transmission ratio: 10:1
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 1 piece
- Weight
- 30.8 kg
- ECLASS
- 23370290
- Category
- Lift Casters
Description 06001HR2000
- Description
Lift castor system for a fast and flexible placing of plants or assembling tables;
gear transmission ratio: 10:1
- Material
Housing: Aluminum die-cast with PTFE bearing
Roller: Plastic PA with ball bearing
Roller housing: Zinc plated steel
- Set
4 lifting units
1 hydraulic drive unit
4 hydraulic pipes at each 5 m, pre-filled
- Specials
Other sets on request
- Tip
*Positioned centered
Properties
| Profile Type | Profile Type B, Profile Type I |
|---|---|
| Application Area | Machinery & Plant Engineering |
| Pack Quantity | 1 piece |
| Model | Aluminum die-cast |

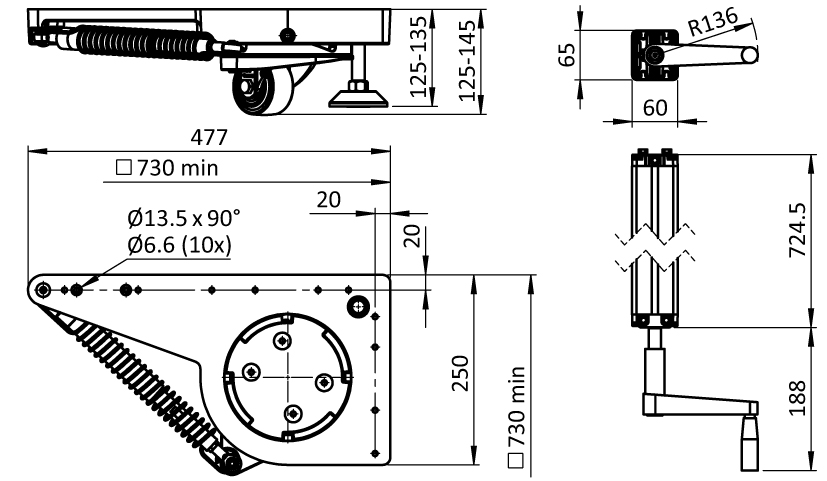

Drawing
From the FATH catalogue (EC-EN, p. 167)
Documents
- User Manual (DE, PDF)
- User Manual (EN, PDF)
- User Manual (FR, PDF)
- User Manual (ES, PDF)
- EC-Declaration of Conformity (DE, PDF)
- EC-Declaration of Conformity (EN, PDF)
- EC-Declaration of Conformity (FR, PDF)
- EC-Declaration of Conformity (ES, PDF)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
