Inner Connector R
Part #: 099I90R06 · 6 variants
To connect two aluminum profiles, assembly without machining
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 10 pieces
- Weight
- 8 g
- ECLASS
- 23360290
- Category
- Inner Connectors
Versions
Select a version — the description and files below follow your selection.

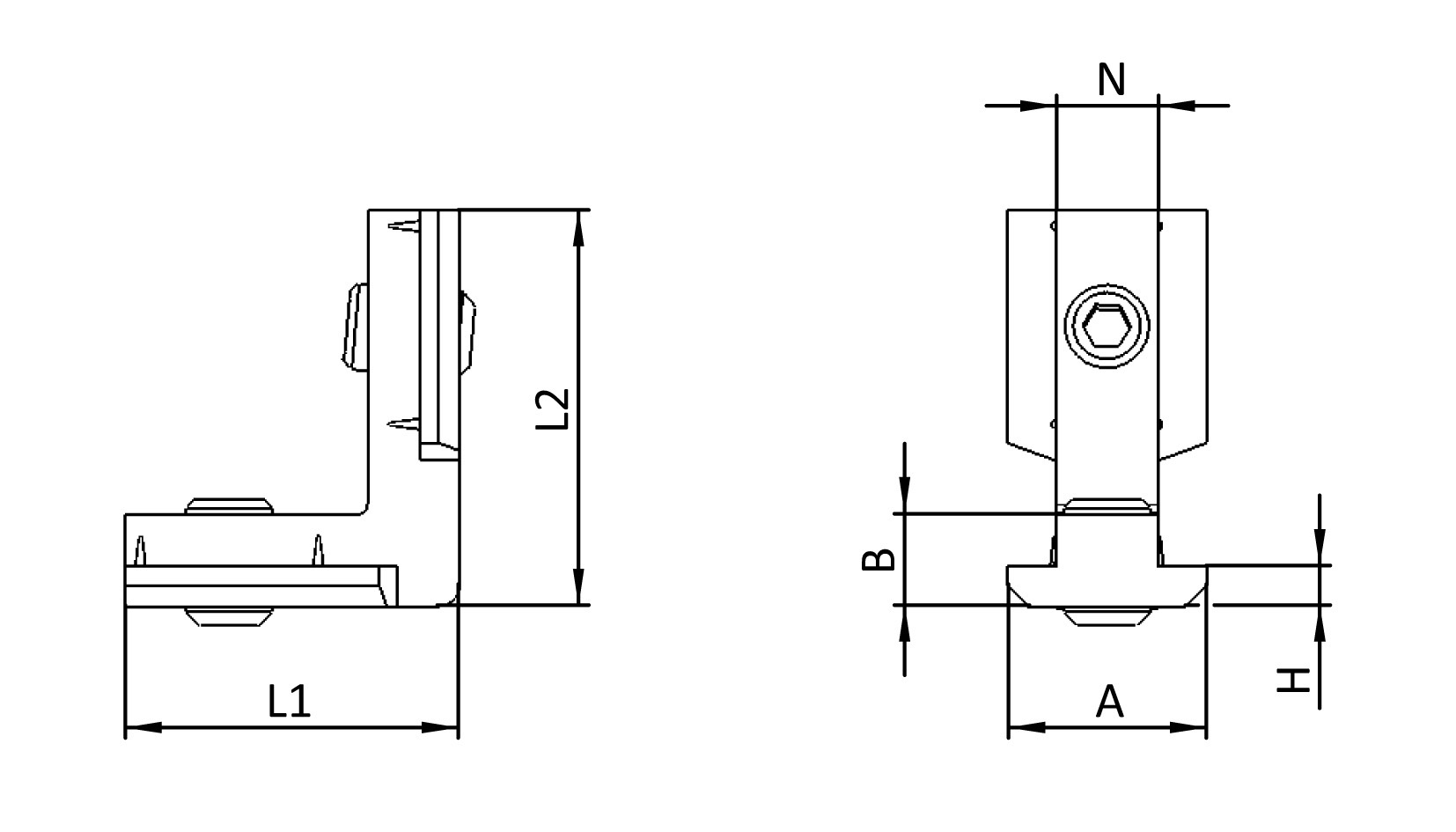

| Part # | Version | H (mm) | Profile | A (mm) | B (mm) | L1 (mm) | Slot N (mm) | Hexagon socket set screw | L2 (mm) | Add 1 pc to enquiry |
|---|---|---|---|---|---|---|---|---|---|---|
| 099I90R06✓ Selected | ZN zinc die-cast | 3.0 | B | 11.3 | 4.5 | 21.6 | 6 | M5 | 21.6 | |
| 099I90R06M | ST cast steel | 3.0 | B | 11.3 | 4.5 | 21.6 | 6 | M5 | 21.6 | |
| 099I90R08 | ZN zinc die-cast | 6.0 | B | 15.8 | 7.8 | 21.6 | 8 | M6 | 30.0 | |
| 099I90R08M | ST cast steel | 6.0 | B | 15.8 | 7.8 | 21.6 | 8 | M6 | 30.0 | |
| 099I90R10 | ZN zinc die-cast | 3.8 | B | 19.0 | 8.8 | 32.0 | 10 | M8 | 38.0 | |
| 099I90R10M | ST cast steel | 3.8 | B | 19.0 | 8.8 | 32.0 | 10 | M8 | 38.0 |
Description 099I90R06
- Description
To connect two aluminum profiles, assembly without machining
- Material
Inner Connector ST version: Zinc-plated cast steel
Inner Connector ZN version: Zinc-plated zinc die-cast
Hexagon socket set screws: Zinc-plated steel
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 6 |
| Pack Quantity | 10 pieces |
| Model | Cast steel / zinc die-cast |
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
