FATH
Insert Profile AL
Part #: 092252 · 2 variants
To insert panels with 2.0 to 8.0 mm thickness subsequently into assebled structures
Price, availability and delivery time — we send one quote for all products.
Question about this product?
Technical questions, custom versions or quantities — write or call us.
Enquire about this product- Pack
- 20 meters (10 pieces at 2 meters)
- Weight
- 240 g
- ECLASS
- 23360492
- Category
- Slot 10, Insert Profiles
Versions
Select a version — the description and files below follow your selection.
Description 092252
- Color
Glazing strip: gray ≈ RAL 7035
- Description
To insert panels with 2.0 to 8.0 mm thickness subsequently into assebled structures
- Material
Support strip AL: Aluminum
Glazing strip: PP + TPE
- Surface
Support strip: anodized
- Tip
Please note: You are ordering in meters! For a complete insert profile, please order two products: Support Strip AL 092252 + Glazing Strip 092253
Properties
| Profile Type | Profile Type B |
|---|---|
| Slot Size | Slot 10 |
| Pack Quantity | 20 meters (10 pieces at 2 meters) |
| Model | Aluminum and plastcics PP + TPE, slot 10, subsequently applicable |

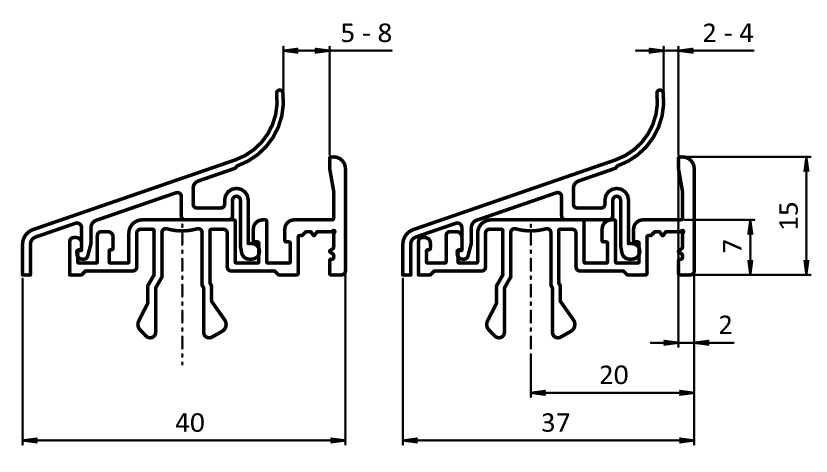

Drawing
From the FATH catalogue (EC-EN, p. 951)
CAD models
FATH's 3D models and drawings are downloaded from their CADENAS PARTcommunity catalogue — free registration, more than 100 formats.
